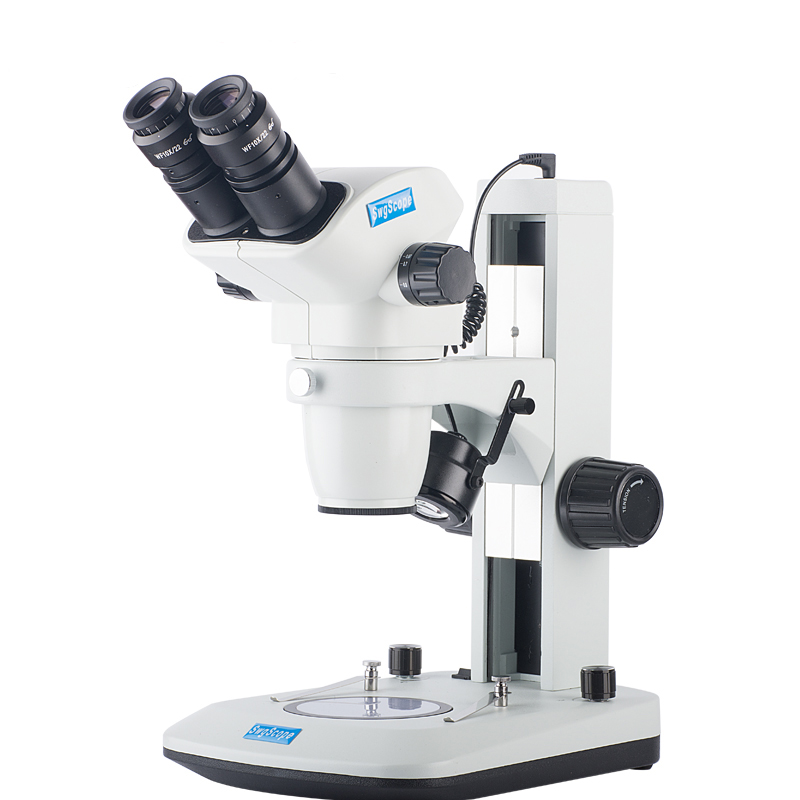

SWG-7645-BL2 binocular stereo microscope continuous zoom

Model: SWG-7645-BL2
Binocular stereomicroscope
Magnification: 6.7x-45x
Eyepiece: 10X
Objective lens: 0.67x-4.5x
Working distance: 105mm
Light source: up and down LED light source, independent switch brightness adjustable
Description Packing list
Product model SWG-7645-BL2
eyepiece Large field of vision, wide angle, high eye point 10x / 22mm
Objective lense 0.67x-4.5x continuous zoom
Nose Binocular body tilt 45 degrees 360 degrees rotation
Pupil range 54mm-75mm ± 5 visibility
Working distance 105mm
Focusing bracket The hand wheel of the vertical arm focusing bracket is adjustable, with the lifting range of 106mm and the installation aperture of 76mm
Vertical arm height 300mm
base 205x275x40mm with lamination and φ 95mm black and white plate and plexiglass plate
lighting Single LED lighting and independent switch on 5v-3w, adjustable brightness; built-in wide voltage design: 110v-240v

1. 1X host lens 0.67x-4.5x

2. 2X eyepiece 10x

3. 1X vertical arm led upper and lower light source bracket

4. 2X eye mask

5. 1X dust cover

6. 1X power cord
