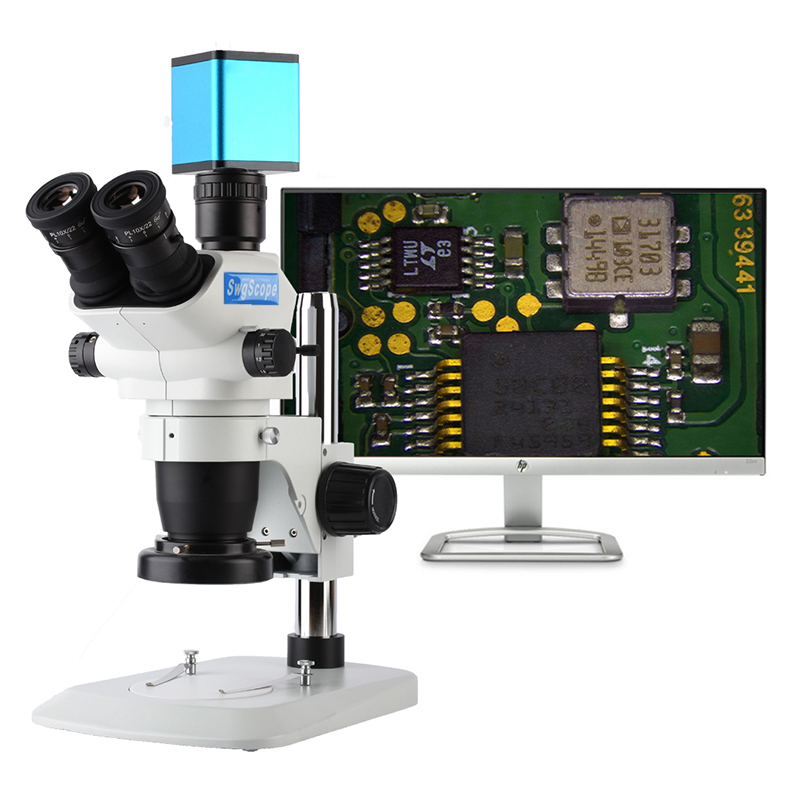

SWG-AF67 auto focus storage video microscope

Model: SWG-AF67
Greno optical system, compact body, smooth lines, while ensuring excellent optical performance, increase the power of the fixed function
Eyepiece: PL10X
Optical amplification: 6.7x-45x
Electronic amplification: 26x-180x
Description Packing list
Product model SWG-AF67
Observation head Three eye observation head, 45 ° tilt, with built-in interlocking mechanism, fixed eyepiece cylinder, with fixed frame and multiplying mechanism and multiplying limit function design
eyepiece High eye point, large field of vision, flat eyepiece pl10x / 22mm, adjustable visibility
Pupillary range 52mm-76mm
CTV interface 0.5X
Optical amplification 6.7X-45X
Electronic amplification 26X-180X
Working distance 110mm
Lifting range 200mm
Base pillar 255 * 200mm, Φ 100mm black and white platform, column diameter 32mm, vertical height 230mm
Lens aperture 76mm
image sensor CMOS color
Valid pixels 2 megapixel 1920 * 1080
Pixel size 1/2.8 "
menu All digital UI design
Operation method Mouse operation
Lens interface C
Power DC DC5V
Output method HDMI
white balance Manual / automatic / single key white balance
Exposure mode Manual / automatic
Display frame rate 1080p @ 60fps / 1080p @ 50FPS
Scanning method Progressive scanning
shutter speed 1 / 50s (1 / 60s) ~ 1 / 10000s
working temperature 0 ℃ ~ 50 ℃
digital zoom Support
Storage function Support u disk to store photos and videos
Hair light source LED (144 pieces) continuously adjustable
input voltage 12V-0.5A
output power 4.5W
Working distance 40-160mm
Maximum illumination 60000 Lux
Bulb brightness MAX3500 MCD
Display 21.5 inches

1. 1X host lens 0.67x-4.5x

2. 2X eyepiece 10x

3. 1X microscope stand

4. 1X AF auto focus camera

5. 1X 21.5 "display

6. 1X 144led light source

7. 2X eye patch

8. 1X dust cover
