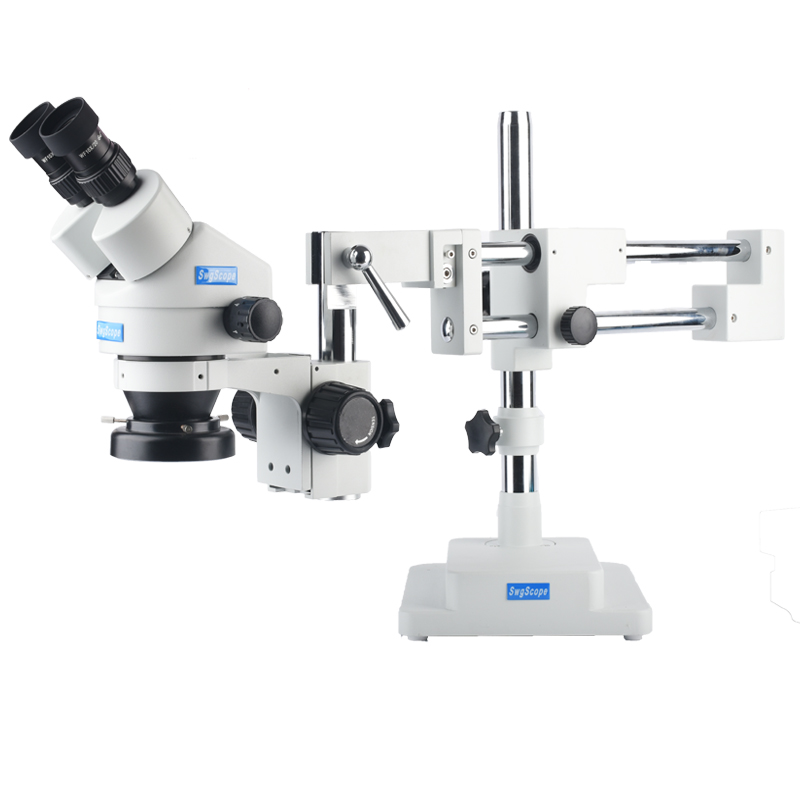

| Product model | SWG-L45-L2 |
| eyepiece | High eye point large field eyepiece WF10x / 20mm |
| objective lense | 0.7x-4.5x continuously adjustable |
| Auxiliary objective | 0.5X/2X |
| nose | Binocular body tilt 45 degrees 360 degrees rotation |
| Pupillary range | 52mm-75mm ± 5 visibility |
| Working distance | 100mm |
| Lifting range | 275mm |
| Base column | 210 * 260 * 40MM, column diameter 32mm, lens aperture 76mm, vertical height 380mm |
| Horizontal movement | 235mm |
| Light source | LED (144 pieces) continuously adjustable |
| input voltage | 12V-0.5A |
| output power | 4.5W |
| Working distance | 40-160mm |
1. 1 x host lens 0.7x-4.5x
2. 2x eyepiece 10x
4. 1x double arm L2 bracket
5. 1x objective 0.5x
6. 1x objective lens 2x
7. 1x 144led light source
8. 2x eye mask
9. 1x dust cover
