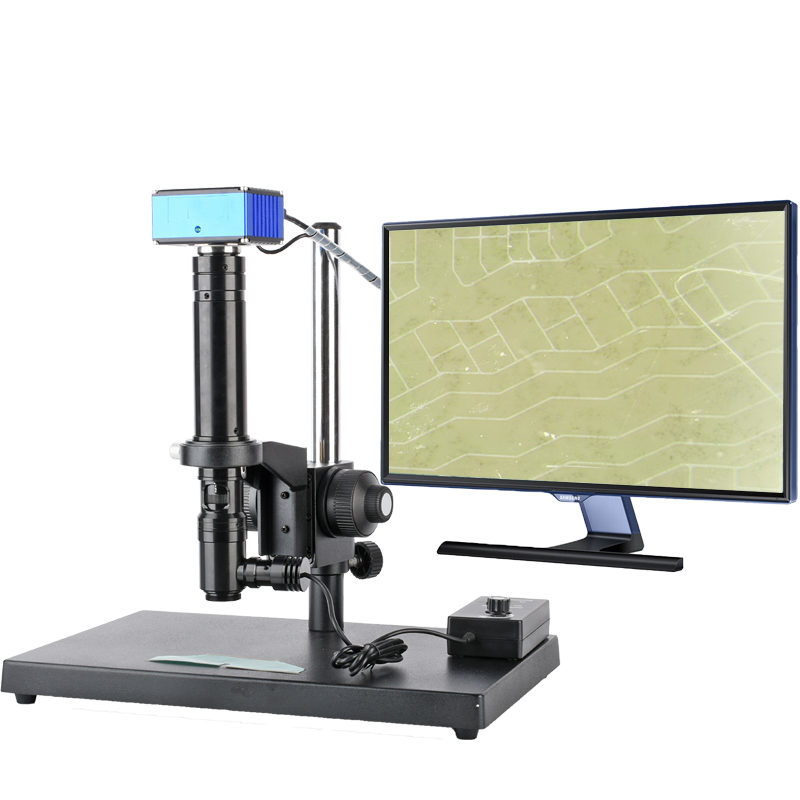

SWG-S2000HD coaxial light microscope ITO detection microscope

Model: SWG-S2000HD
Unique optical system, precise mechanical mechanism, high resolution, meet the requirements of modern electronic equipment, semiconductor, laser, led, LCD, industrial online detection, inspection and measurement
Zoom in: 95x-614x
Resolution: 1920x1080
Description Packing list
Product model SWG-S2000HD
Zoom ratio Continuously adjustable 1:7.2
Comprehensive magnification 95X-614X
Camera eyepiece 1X
Auxiliary objective 2X
Working distance 30mm
Lifting range 275mm
Focusing stroke 42mm
Base pillar Base 370x250x16mm, column height 310mm, diameter 25mm, lens aperture 50mm
pixel 2 million pixels
pixel size 3.75μm x 3.75μm
sensor Row by line CMOS
output color colour
Data bits 12bits
Exposure mode Line by line exposure
Optical size 1/2-inch
Signal-to-noise ratio >52dB
Maximum frame rate 60FPS
Display resolution 1920*1080@60Hz
Output mode HDMI interface
External power supply 12V
maximum power 5W
working temperature 0 degrees C - 50 degrees C
Lens interface Standard C / CS port
save setting U disk storage
External equipment Mouse, keyboard, removable storage device
basic function Freezing function, automatic white balance, 8 sets of crosshair display, exposure, saturation, switchable HDR, picture taking, picture echo, video recording
Advanced functions Sharpening, denoising, gain, HDR fine tuning, bad point correction, system upgrade
Measuring function Point spacing, point line spacing, line spacing, center distance, arc, circle, angle, rectangle, polygon measurement, calibration function
language Chinese, English switch
Display 21.5 inches

1.  1x microscope high power lens

2. 1x microscope bracket

3. 1x HD storage camera

4. 1x21.5 inch display screen

5. 2x power adapter

6. 1xhdmi cable

7. 1X mouse

8. 1x U disk 16g
