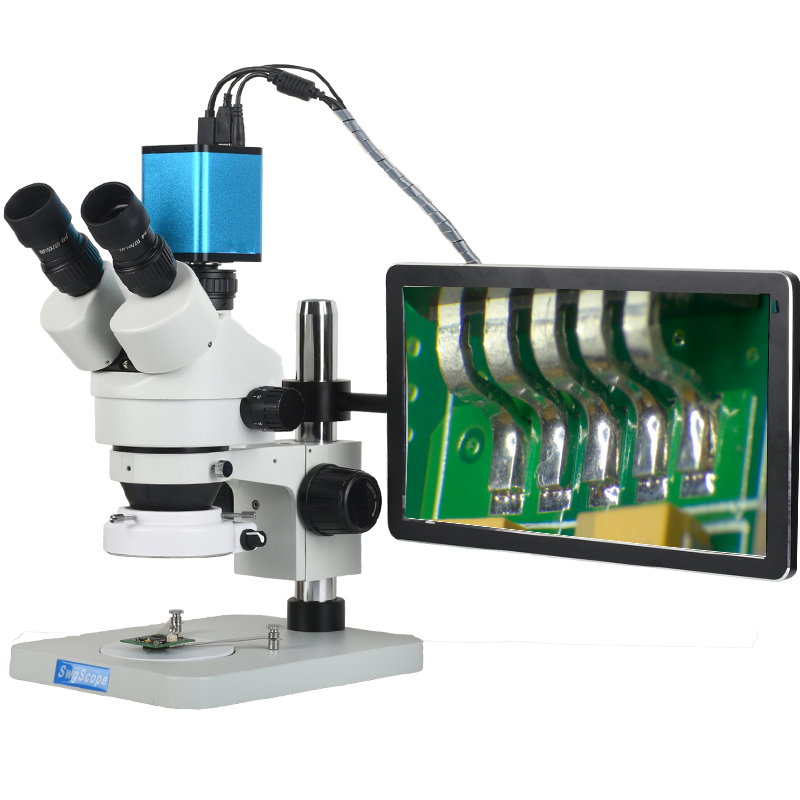

SWG-S500HD133 HDMI high definition integrated microscope 1080p high definition amplification 15x-95x

Model: SWG-S500HD133
Optical amplification: 7x-45x
Electronic amplification: 15x-95x
1 / 2 "backlit CMOS sensor, 2 million high-speed image acquisition, resolution 1920x1080 @ 60fps
Dual USB interface, supporting photo recording
Description Packing list
Product model SWG-S500HD133
eyepiece High eye point large field eyepiece wf10x / 20
Objective lense 0.7x-4.5x continuously adjustable
CTV interface 0.5X
Optical amplification 7X-45X
Electronic amplification 15X-95X
Zoom lens Binocular tilt 45 degree 360 degree rotation
Pupil range 52mm-75mm ± 5 visibility
Working distance 100-165mm
Lifting range 275mm
Focusing stroke 50mm
Base pillar 200x255x22mm, column diameter 32mm
Lens aperture Phi 76mm
Chip structure FPGA+ARM
operating system LINUX 3.10
Kernel structure Dual core cortex-a9
Main frequency speed 1Ghz
Optical size 1/2 inches
Resolving power 1920 x 1080
Frame rate 60fps
Interface 2 USB interfaces; USB disk, wireless mouse or keyboard can be connected; photo taking and video recording are supported
working voltage 12V
working temperature -10 degree -70 degree
Hair light source LED (144 pieces) continuously adjustable
input voltage 12V-0.5A
output power 4.5W
Working distance 40-160mm
Maximum illumination 60000 Lux
Bulb brightness MAX3500 MCD
Display 13.3 inches

1. 1X Microscope host lens

2. 1X microscope stand

3. 1X HDMI HD  camera

4. 1X 13.3 "display

5. 1X 144led light source

6. 1X mouse

7. 1X U disk 8g

8. 1x HDMI HD cable
