Eyepiece :1X
Objective lens :0.7X-4.5X continuously adjustable, with card lock-in ratio
Auxiliary objective :1X
Optical magnification: 0.7X-4.5X
Working distance: 90mm
Light source: Built-in LED point light source

Description Packing list

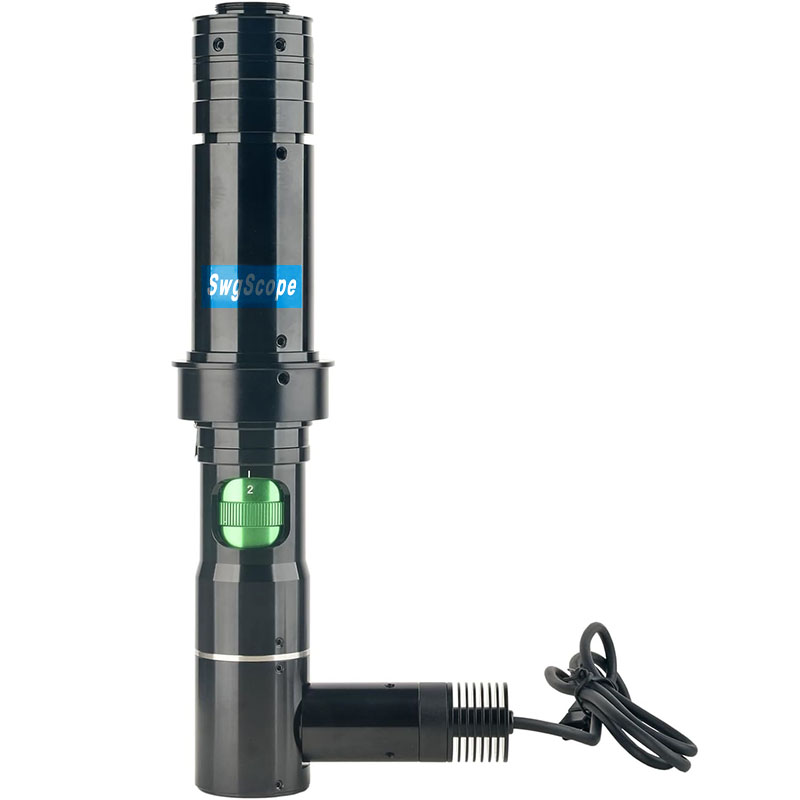

Product model	SWG-T2000
Optical amplification	0.7 X - 4.5 X
Field of view	1.77mm-11.42mm (refer to 1/2 chip industrial camera)
eyepiece	1X
Objective lens	0.7X-4.5X continuous magnification objective (with clip, locking magnification)
Working distance	90mm
Lens mounting dimension	50mm
Lens interface	C-Mount
Resolution	3.4 11.2 um
Depth of Field	0.1 1.9 mm
NA	0.03-0.1
LED point light source	Coaxial LED point light source, input voltage: AC90V-240V, output voltage: DC3.3V 3W

1. 1 X 0.7X-4.5X lens
2. 1 X light source control box
3. 1 X LED point light source
4. 1 X power cord
