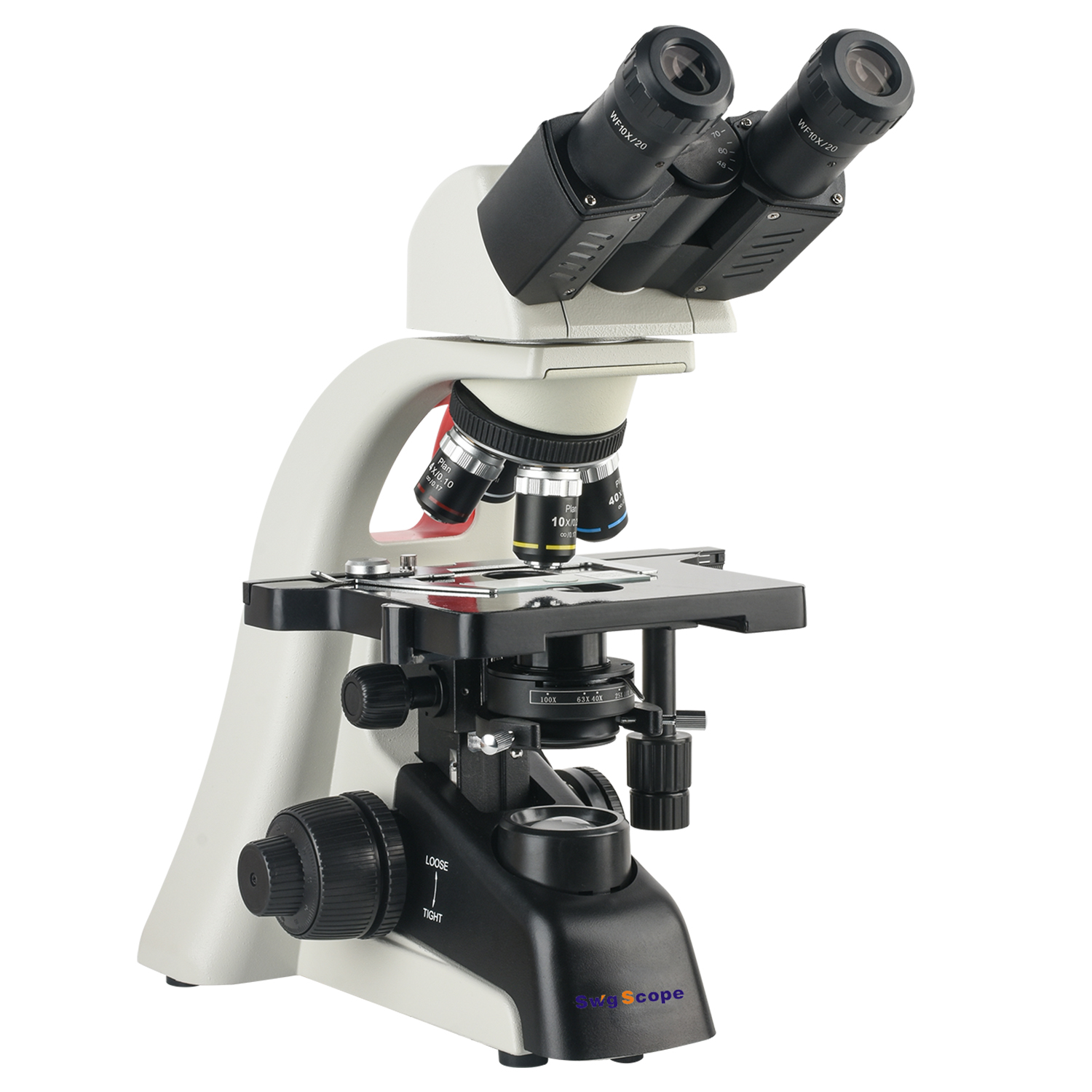

| SWG-W2600 biomicroscope is designed by ergonomics, with smooth lines and beautiful appearance. This series of models has excellent optical system and clearer imaging, It is very suitable for teaching research, clinical experiment and scientific research analysis of biology, pathology and bacteriology in Institutions of higher learning, medical and health care, laboratories and scientific research institutes |
|
| Product model | SWG-W2600 |
| Magnification | 40X-1600X |
| Eye glasses | Wide angle wf10x / φ 20mm, wf16x / 15mm, adjustable visibility |
| Object mirror | Infinite flat field achromatic objective 4x, 10x, 40x (s), 100x (O, s) |
| Observation cylinder mirror | Infinity hinge binocular. 30 ° tilt. Pupil spacing: 55-75mm |
| focusing system | Coarsely fretting coaxial, with handwheel slack adjustment and limit device, coarsely adjusted 22mm, fine-tuning accuracy 0.002mm |
| Commutator | Four hole inclination. Ball positioning |
| Loading platform | Double layer mechanical moving platform. Double slice clamp. Size: 160mm × 142mm. Moving range: 76mm × 52mm |
| Focusing mirror | Abbe condenser, N.A. = 1.25, center adjustable, with variable light bar and filter bracket |
| Light source | Transformer: AC 220V or 110V or 3W LED cold light source. Suitable for digital microscope |
| Electric source | Switching power supply, wide voltage AC 100v-250v |
1. 2X wide-angle eyepiece wf10x / 16
2. 2X wide-angle eyepiece wf16x
3. 1X objective lens 4x
4. 1X objective lens 10x
5. 1X objective lens 40x
6. 1X objective lens 100X
7. 1X microscope body
8. 1X power adapter
