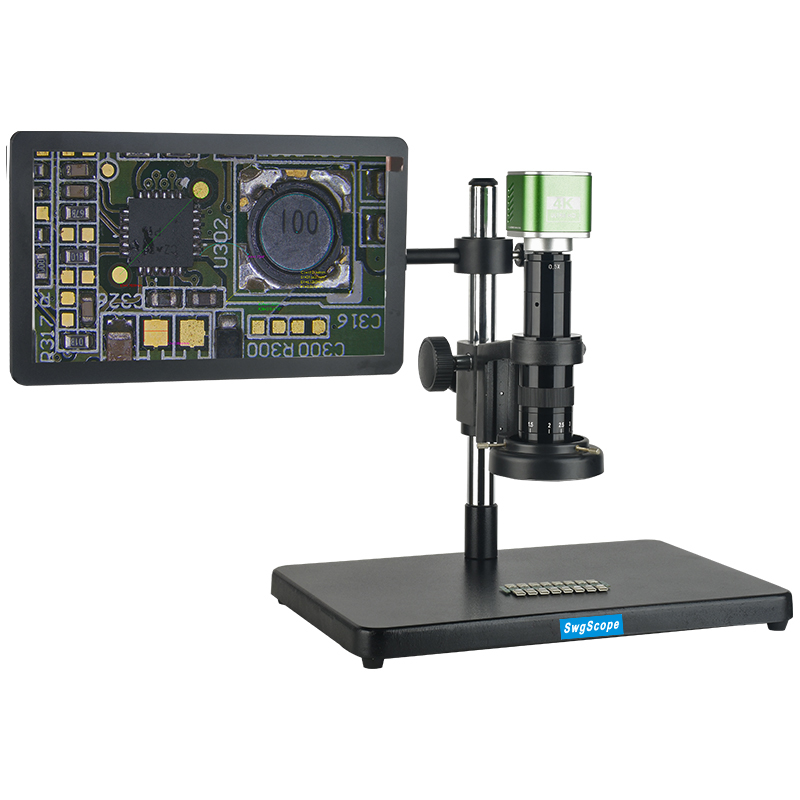

Model |
SWG-K4000 |
Monitor |
13.3-inch |
Optical Enlargement |
0.35X-2.25 |
Electronic Amplification |
13X-85X |
Eyepiece |
0.5X |
Objective Lens |
0.7X-4.5X |
Field of Vision |
3.93mm-25.31mm |
Working Distance |
100mm |
Focusing Bracket |
lifting Range 50mm |
Lens Aperture |
50mm |
Column Height |
330mm |
Bottom Size |
370X250X16mm |
LED Light Source |
62mm Inner Diameter Microscope LED Ring Light Source 64 lamp Beads Adjustable Brightness AC100V-240V/50/60HZ DC12V 9W |
Sensor |
8.3 Million Pixels Sony |
Output Method |
HDMI/USB |
Sensor Size |
1/1.8 |
Pixel Size |
2.0X2.0μm |
Resolution |
3840X2160 |
Frame Rate |
3840X2160 @30FPS,1920X1080 @30FPS |
Image Storage Method |
U Disk |
Video |
4K（30FPS）,1920X1080（30FPS） |
Exposure |
Auto/Manual |
White Balance |
Automatic/One Click |
RGB |
Red,Green and blue Independently Adjustable,Color Temperature Adjustable |
Mirror Configuration |
Black and White Mode,Horizontal Mirror,Vertical Mirror |
Grid Line |
Supports 8 Sets of Horizontal and Vertical Lines,Colors available (Red,Blue,Green, Sky blue,Orange,Yellow,White,Black)The line can be Moved,the Center Cross can be Set |
Image Adjustment |
Brightness,Contrast,Saturation,Sharpness,Noise Reduction,Anti-Flicker |
PC Software |
KOPPACE-VIEW（Support Photo,Video,Measurement） |
Camera Interface |
C-Mount |
Language |
Chinese,English,Traditional |
Digital Amplification |
10X Digital Amplification |
Image Contrast |
Supports Comparison Between 2 and 4 Images |
Measuring Function |
Measurement:Straight lines,Line Spacing,Vertical lines, Rectangles, Polygons,Angles,arcs,Radius Circles,Circular Margins, Arbitrary lines,text annotations,etc |
