Model |

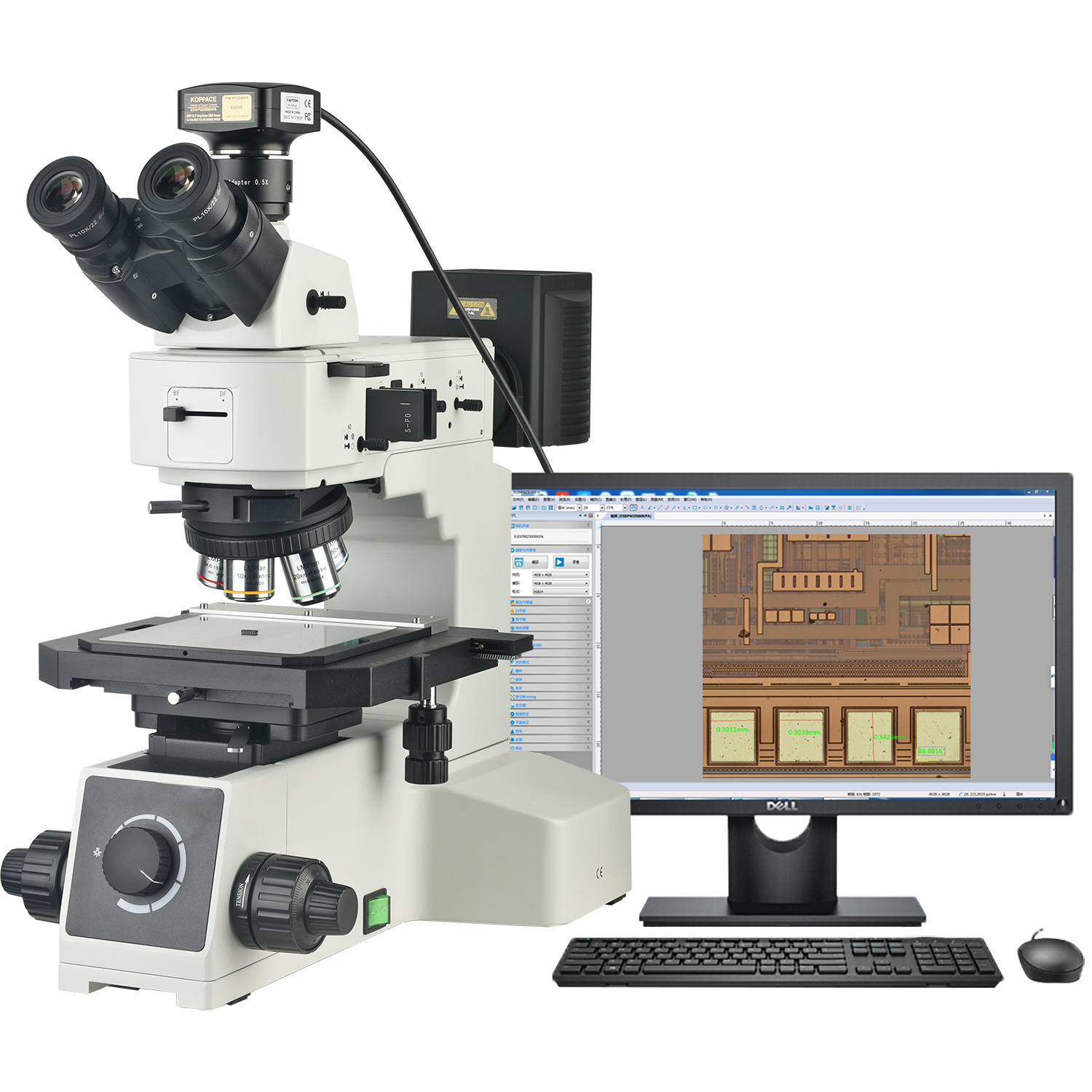

SWG-MX6R50 |
Optical Magnification |
50X,100X,200X,500X |
Electronic Amplification |
177X-1772X |
Optical System |
Infinity Chromatic Aberration Correction Optical System |
Eyepiece |
High Eye Point large Field of View flat Field Eyepiece PL10X22mm |
Objective Lens |
LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective
|
Observation Tube |
30° Tilt,,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm,Unilateral Diopter Adjustment:±5 Diopter. |
Objective Lens Converter |
Bright and Dark Field Five-Hole Converter With DIC Slot |
Coarse and Fine Focusing Mechanism |
Translucent and Reflective Frame,Front low-Hand Position Coarse and Fine Coaxial Focus Adjustment Mechanism.Coarse Adjustment Stroke 33mm,Fine Adjustment Accuracy 0.001mm.With Adjustment Elastic Device to Prevent Sliding and Random Upper limit Device |
Operating Platform |
4-inch double-layer Mechanical Mobile Platform,Low-Hand Position X,Y Direction Coaxial Adjustment,Platform Area 230mm X 215mm,Transmission illumination Movement Range:105X105mm |
Upper Lighting System |
Built-In 100-240V Wide Voltage System,LED White Light Transmitted Light illumination System,Independent Control of Upper and Lower Light;With Polarizing Device Slot; With Bright and Dark Field Switching Mechanism,Preset Center,Light Intensity Continuously Adjustable |
Under Lighting System |
Single High-Power 10W LED White Light,Continuous Adjustable Light Intensity |
Condenser |
Transmissive Shake-Out Achromatic Condenser (N.A0.9) With Variable Aperture Stop,Center Adjustable |
Polarizer |
Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
Trinocular Interface |
0.5X C-mount Interface,Adjustable Focus |
Pixel |
25 Million Pixels |
Output Method |
USB3.0 |
Sensor |
25M/SONY IMX511(C) |
Sensor Size |
1/2.3 “ (5.519x5.519) |
Pixel Size |
1.12μmx1.12μm |
Resolution Frame Rate |
12@4928x4928，46@2464x2464，100@1648x1648 |
Exposure Time |
0.013ms~15s |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python, Java,DirectShow,Twain,etc); |
Operating System |
Microsoft Windows /Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X),Linux |
File Save |
Can Set File Name,Save Pictures With Time Format,Save Path Selection |
Image Adjustment |
Hue,Saturation,Brightness,Contrast,Sharpness,Color,Grayscale |
Shooting Mode |
Images and Videos |
