Model |

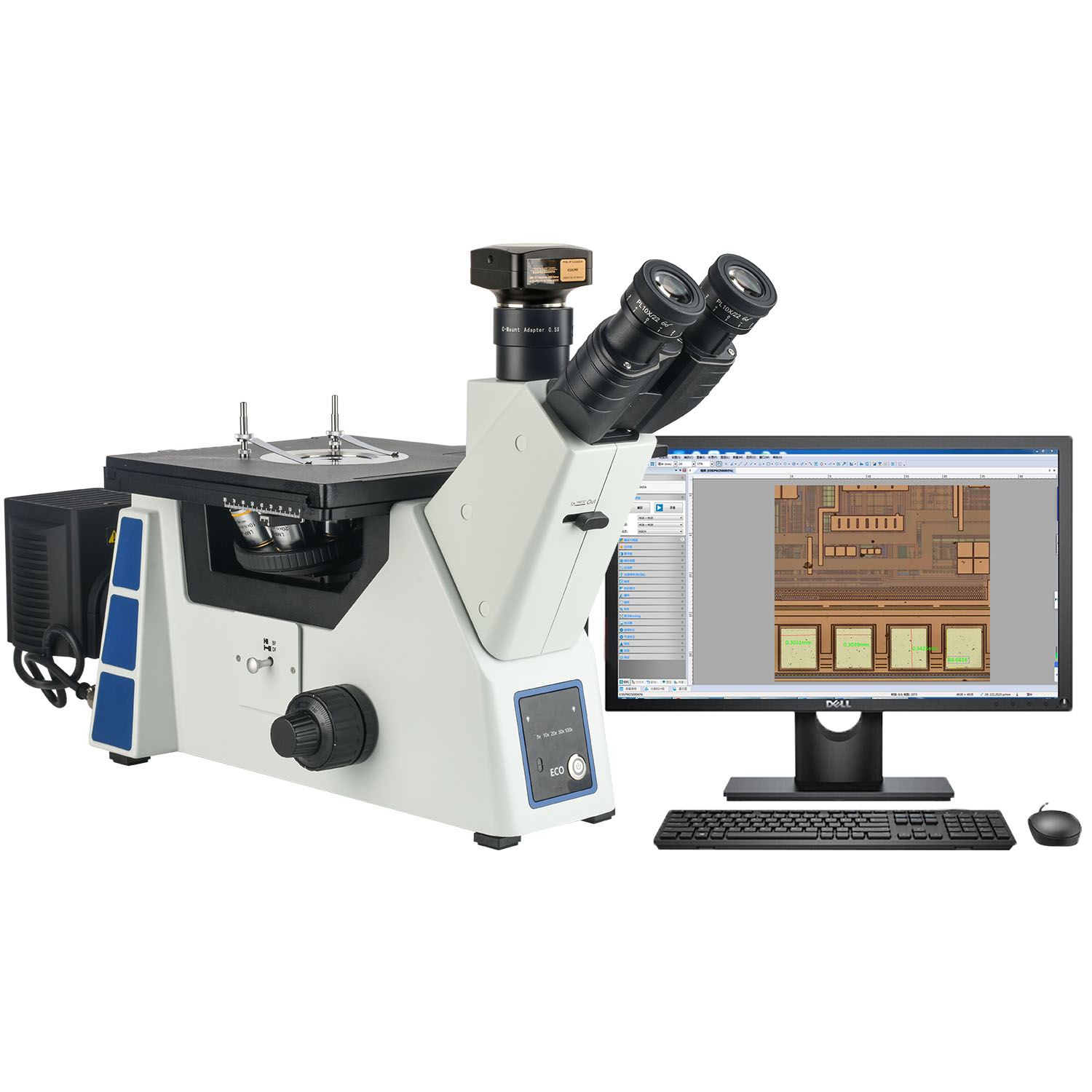

SWG-ICX25M |
Optical Magnification |
50X,100X,200X,500X |
Electronic Amplification |
177X-1772X |
Optical System |
Infinity Chromatic Aberration Correction Optical System |
Eyepiece |
High Eye Point large Field of View flat Field Eyepiece PL10X22mm |
Objective Lens |
LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective
|
Observation Tube |
Three-eye Viewing Tube, 45° Tilt,Hinge Group can be 360° Rotation,Fixed Eyepiece Tube,Pupil Distance Adjustment Range of 50-75mm |
Converter |
Bright and Dark Field Five-Hole Converter With DIC Slot |
Coarse and Fine Focusing Mechanism |
Reflection Light and Dark Field Metallographic Frame,Using Low Hand Position Coaxial Coarse Fine Adjustment,Coarse Adjustment Stroke 9mm, The Focus Facing up 6.5mm,Down 2.5mm,Fine Adjustment Precision 0.002mm,With an Elastic Adjustment Handwheel to Prevent Sliding |
Operating Platform |
Three-layer Mechanical Moving Platform,Platform Size:240 (W) X 250 (L),Moving Range of 50X50mm,Two-Way Wire Rail Drive,Right Hand Low Hand Control |
Lighting System |
Light and Shade Field Reflector With Variable Field of View Aperture,Aperture Aperture,the Center is Adjustable;With Light and Shade Field Switching Device,With Filter Slot and Polarizing Device slot;12V100W Halogen Light Box (Reserved Center),Light Source Brightness Continuously Adjustable,With Light Source Brightness Indicator Bar,With Infrared Induction Function;Adopt External Wide Voltage Transformer,Input 100-240v,Output 15V13.4A |
Polarizer |
Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
Trinocular Interface |
0.5X C-mount Interface,Adjustable Focus |
Pixel |
25 Million Pixels |
Output Method |
USB3.0 |
Sensor |
25M/SONY IMX511(C) |
Sensor Size |
1/2.3 “ (5.519x5.519) |
Pixel Size |
1.12μmx1.12μm |
Resolution Frame Rate |
12@4928x4928，46@2464x2464，100@1648x1648 |
Exposure Time |
0.013ms~15s |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python, Java,DirectShow,Twain,etc); |
Operating System |
Microsoft Windows /Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X),Linux |
File Save |
Can Set File Name,Save Pictures With Time Format,Save Path Selection |
Image Adjustment |
Hue,Saturation,Brightness,Contrast,Sharpness,Color,Grayscale |
Shooting Mode |
Images and Videos |
Camera Function |
Advanced software for Windows:
|
