Model |

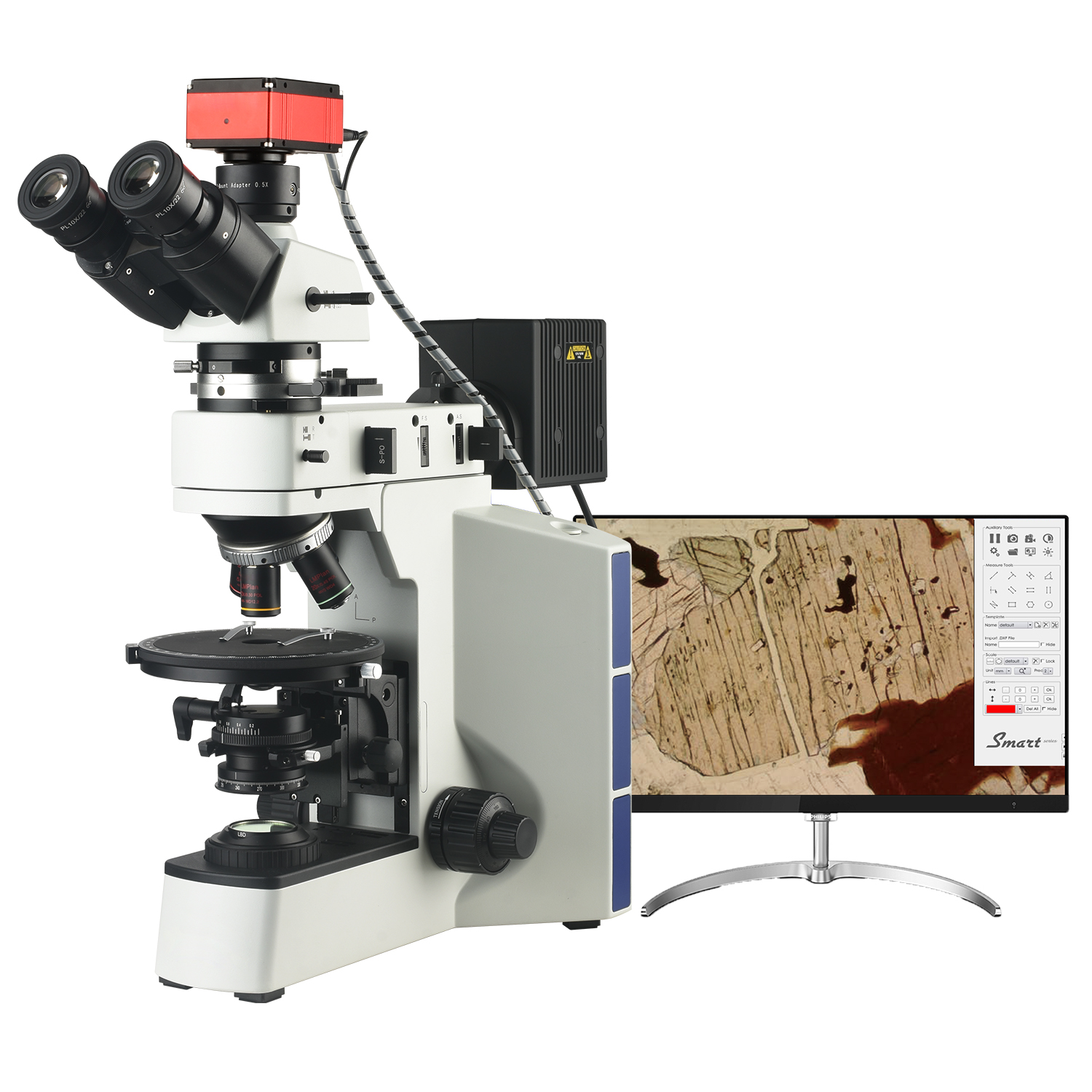

SWG-PX4000 |
Optical Magnification |
50X、100X、200X、500X |
Electronic Amplification |
192X-1926X |
Optical System |
Infinity Chromatic Aberration Correction Optical System |
Eyepiece |
High eye Point large field of View Flat Field Eyepiece PL10X22mm,Adjustable visibility,With Micrometer |
Objective Lens |
Flat field infinitely long working distance stress relief objective lens
|
Observation Tube |
30° Tilt,,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm |
Focusing System |
low-Handed Coarse and Micro-Coaxial Focusing Mechanism,Coarse Adjustment Stroke 30mm,Fine Adjustment Accuracy 0.002mm.Adjustable Tensioning Device With Anti-Slip and Random upper limit Device. |
Intermediate mirror set |
Built in Brewster mirror,rotary disc switching mechanism (center,focal length adjustable),with deviation detector slot Slot with Compensator |
Polarizing mirror set |
Insert Plate Bias Detector Group, 360° Rotation,grid value 2°,Accuracy 6 ',With Locking Mechanism |
Compensator |
λ plate:φ18mm, first grade red,optical path difference 551nm; λ/4 pieces:φ18mm,
|
Operating Platform |
Rotating Metal Working Platform,surface Graphite Spraying,anti-corrosion and wear-resistant,Diameter 160mm,360° Rotating locking Positioning,Grid value 1°,Accuracy 6 ' |
Objective Lens Converter |
Internal Positioning 4-hole Converter With Adjustable Center |
Condenser |
Roll-out Achromatic Condenser (N.A0.9) with Polarizing Mirror Group,can be Rotated 360°,Adjustable scales |
Upper Lighting System |
Adaptive wide voltage 100V-240V_AC50/60Hz,Reflection lamp room,
|
Lower Lighting System |
Adaptive wide voltage 100V-240V_AC50/60Hz,Spotlight room,
|
Trinocular Interface |
Three Eye Interface 0.5X CTV |
Pixel |
8.3 Million Pixels |
Output Method |
HDMI、GigE、USB3.0 |
Sensor |
8.3M/Sony 1/1.8＂CMOS |
Pixel Size |
2.0μmx2.0μm |
HDMI Resolution |
3840X2160,(Photo can be Manually and Automatically Named file Name) |
Video Resolution |
4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
Exposure |
Auto/Manual |
White Balance |
Auto/Manual |
Color Adjustment |
R/G/B |
Image Adjustment |
Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
Storage Mode |
U Disk Storage,Photo Taking,Video Recording and Measurement |
GigE/USB3.0 |
By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |
Reticle lines |
100 Groups Horizontal and vertical lines |
Measuring Function |
Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |
