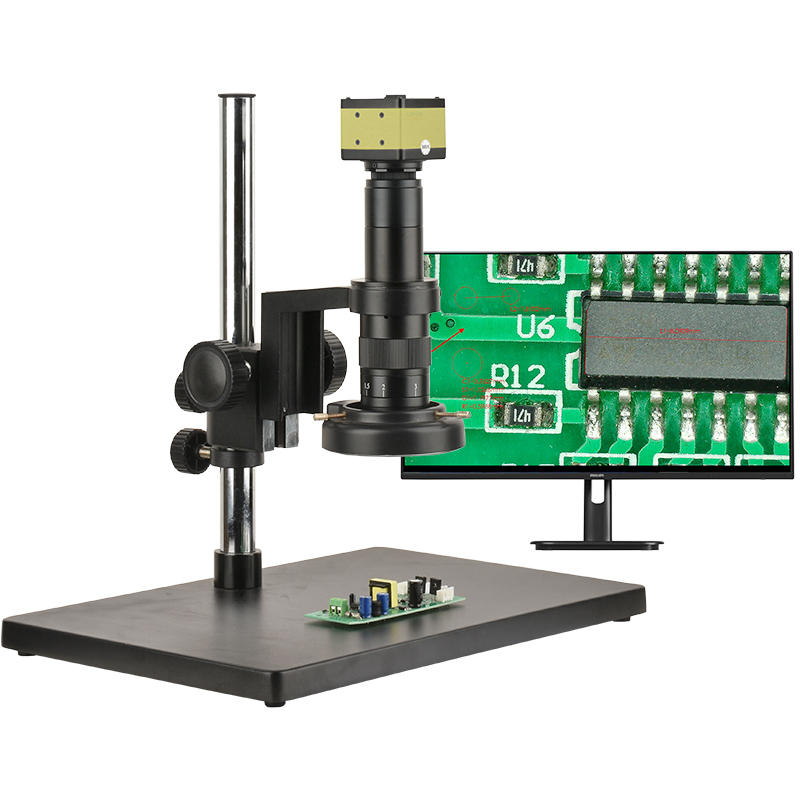

Model |
SWG-H1000C |
Optical Enlargement |
0.3X-2.25X |
Electronic Amplification |
19X-142X |
Field of View |
3.93mm-29.53mm |
Eyepiece |
0.5X C-Mount |
Objective Lens |
0.6X-4.5X（Continuous Zoom） |
Working Distance |
100mm |
Bracket Size |
The base size is 380mmX250mmX19mm,and the center distance of the focusing frame is 140mm,Lens hole 50mm,lifting range 62mm,column height 330mm, diameter 25mm |
LED Light Source |
60 Lamp Beads,Inner Diameter 61mm,Input Voltage,AC100,240V,Maximum Output Power 4.5W,Voltage 12V |
Sensor |
2 Million Pixels |
Output Method |
HDMI |
Sensor Size |
1/1.8 |
Pixel Size |
4.0μm X 4.0μm |
HDMI Resolution Ratio |
1920X1080 @60FPS |
Reduce Reflection |
Manual |
Video |
1920X1080@30FPS |
Magnification Display |
Real time display of Magnification |
White Balance |
Manual/Automatic |
Grid Line |
Supports 5 groups of horizontal and vertical lines, with adjustable colors and line widths |
Image Adjustment |
Exposure,Saturation,Brightness,Contrast,Sharpening,anti reflection,Black and white,Freezing,Supports Horizontal/Vertical Flipping |
Storage Mode |
U Disk Storage,Photo Taking,Video Recording and Measurement |
Camera Interface |
C/CS |
Input Voltage |
AC100V—240V 12V |
Language |
Chinese,English,Traditional Chinese |
Measurement Function |
Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |
