Model |

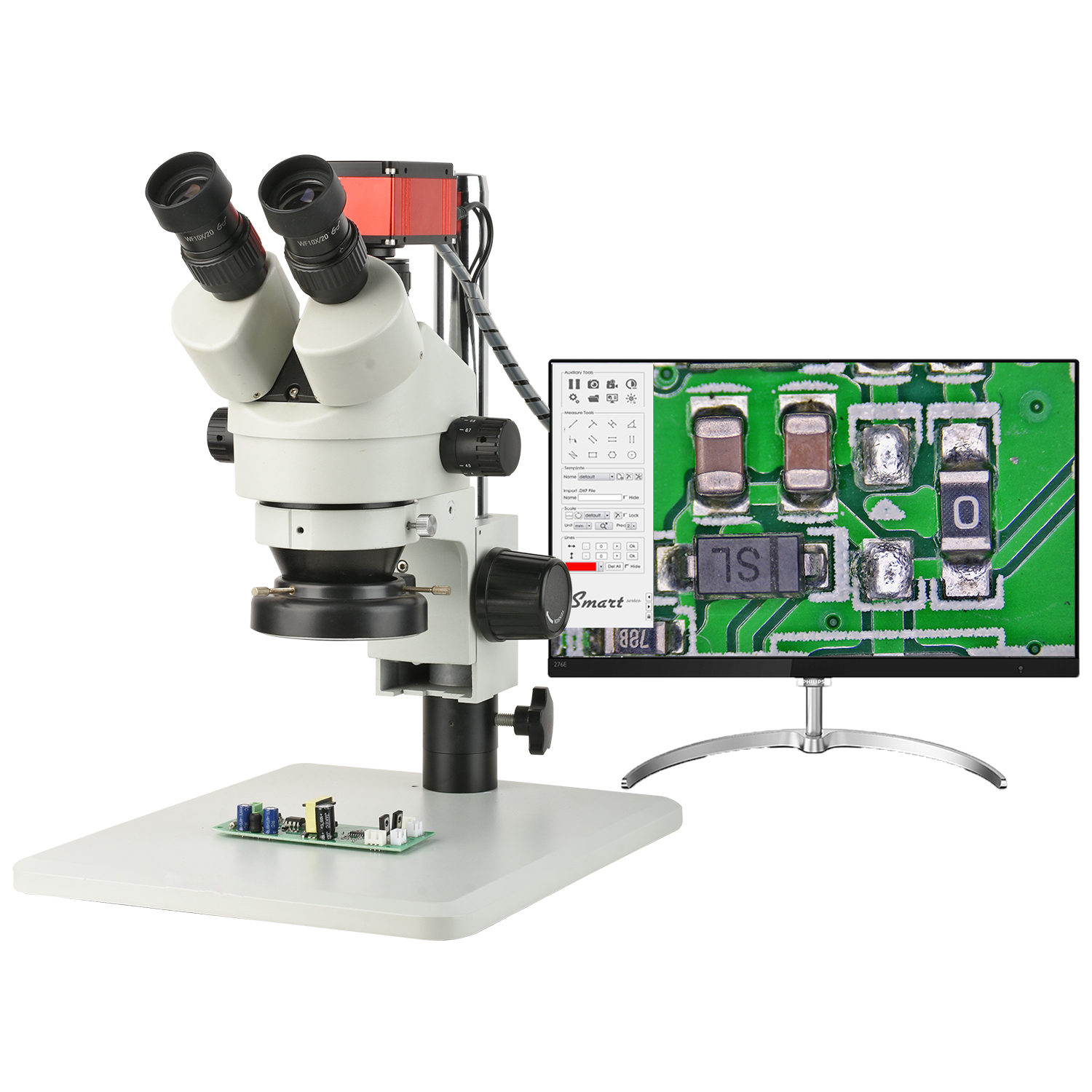

SWG-HD170 |
Optical Magnification |
3.5X-90X |
Electronic Magnification |
27X-174X |
Field of View |
7.87mm-50.62mm |
Eyepiece |
High Eyespots Wide-Field Eyepiece WF10X/20,WF20X/10 |
Objective Lens |
0.7X-4.5X Continuous Amplification |
Auxiliary Lens |
0.5X/165mm,1X Oil Proof Mirror |
Working Distance |
100mm-165mm |
Viewing Head |
Trinocular Stereo Microscope View Head Inclined at 45°.
|
Bracket |
Column Height 350mm,Column Diameter Φ32mm,Base Size:320mmX260mmX16m,Lens Frame Diameter 76mm. |
Trinocular Interface |
0.5X CTV（Simultaneous Observation Through Both the Eyepieces and the Trinocular Port.No need to Switch,Simultaneous Imaging.） |
LED Light Source |
62mm Inner Diameter Microscope LED Ring Light Source 64 lamp Beads Adjustable Brightness AC100V-240V/50/60HZ DC12V 9W |
Pixel |
8.3 Million Pixels |
Output Method |
HDMI、GigE、USB3.0 |
Sensor |
8.3M/Sony 1/1.8＂CMOS |
Photographic Resolution |
3840X2160,(Photo can be Manually and Automatically Named file Name) |
Video Resolution |
4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
Pixel Size |
2.0μmX2.0μm |
Frame Rate |
60FPS |
Color Adjustment |
R、G、B Independently Adjustable |
White Balance |
Auto/Manual |
Image Adjustment |
Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
Storage Mode |
U Disk Storage,Photo Taking,Video Recording and Measurement |
GigE/USB3.0 |
By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |
Cross Hair |
Support 100 Groups Cross Line,The Color Position is Adjustable |
Power Supply |
AC100V-240V DC-12V |
Measuring Function |
Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |
