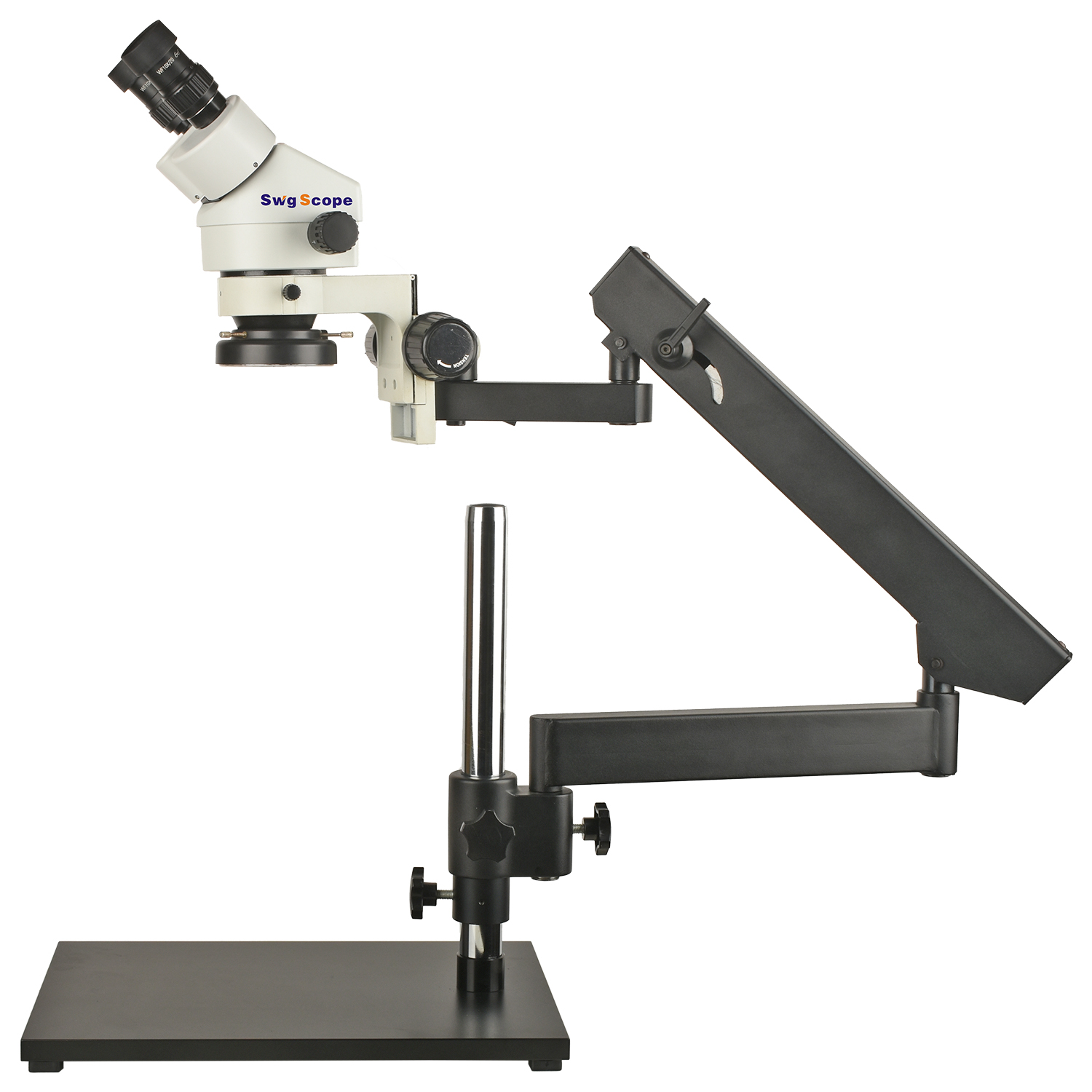

3.5X-90X Binocular Stereo Microscope 0.7X-4.5X Continuous Zoom Lens
3.5X-90X Binocular Stereo Microscope 0.7X-4.5X Continuous Zoom Lens

3.5X-90X Binocular Stereo Microscope 0.7X-4.5X Continuous Zoom Lens

Model: SWG-7045-FLA
Description
Model
SWG-7045-FLA
Optical Enlargement
3.5X-90X
Field of View
4.44mm-57.14mm
Eyepiece
High Eyespots Wide-Field Eyepiece WF10X/20,WF20X/10
Objective Lens
0.7X-4.5X
Viewing Head
Binocular Stereo Microscope View Head  Inclined at 45°.
The Pupil Distance Adjusting Range 54mm-76mm
Working Distance
100mm-165mm
Focusing Bracket
Focusing Handwheel Tightness is Adjustable,lifting Range 50mm
LED Light Source
LED Qty 64,Internal Diameter Size 62mm,
Input Voltage AC90—240V,Maximum Output Power 9W,Voltage 12V
Rocker Bracket
Column Height 360mm,Column Diameter Φ32mm,Base size:260X380mm,weight: 12kg Size:170X340X460mm, Horizontal Rotation Range 360° Rotation。
Auxiliary Lens
0.5X/165mm,1X Oil Proof Mirror
