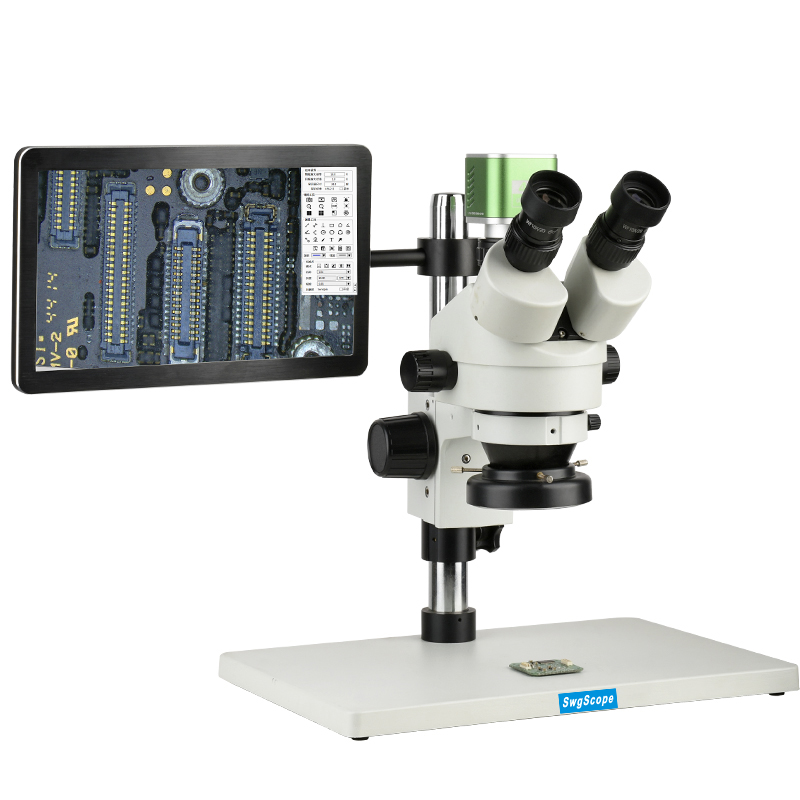

| Product model | SWG-S5004K133 |
| Optical amplification | 3.5X - 90X |
| Electron amplification | 7X-85X |
| Eyepiece | High point wide-angle eyepiece WF10X/20,WF20X/10 |
| Objective lens | 0.7X -4.5X |
| Auxiliary objective | 0.5 X/WD165mm |
| Viewing head | The tilt of the head is 45°. Pupil distance adjustment range 54mm-76mm |
| Working distance | 100mm-165mm |
| Focusing hand wheel | The tightness of the focusing hand wheel is adjustable, and the lifting range is 50mm |
| Support | Base 380X250X20mm, column diameter 32mm, column height 350mm, lens aperture 76mm |
| LED light source | 62mm inner diameter microscope LED ring light source 64 beads Adjustable brightness AC100V-240V/50/60HZ DC12V 4.5W |
| Three-mesh interface | 0.5 XCTV |
| Pixel | 8.3 million pixels |
| Output mode | HDMI/USB |
| Sensor size | 1/1.8 |
| Pixel size | X2.0 2.0 microns |
| Output resolution | 3840X2160 |
| Frame rate | 3840X2160 @30FPS,1920X1080 @30FPS |
| Image storage mode | Flash drive |
| Video recording | 4K (30FPS),1920X1080 (30FPS) |
| Exposure | Automatic and manual |
| White balance | Auto/One click |
| RGB | Red, green, blue independent adjustable, color temperature adjustable |
| Mirror setting | Black and white mode, horizontal mirror, vertical mirror |
| Gridlines | Supports 8 groups of horizontal and vertical lines, the color is optional (red, blue, green, sky blue, orange, yellow, white, black) lines can be moved, the center cross can be set, and 4 kinds of line widths are optional |
| Image adjustment | Brightness, contrast, saturation, sharpness, noise reduction, anti-flicker |
| PC software | SWG-VIEW (support photo recording, measurement) |
| Camera interface | C interface |
| Language | Chinese, English, Traditional |
| Digital amplification | Supports 10X digital magnification |
| Screen comparison | Comparison between two and four screens is supported |
| Measuring function | Line, line spacing, vertical line, rectangle, polygon, Angle, arc, radius draw circle, circle margin, arbitrary line, text annotation, etc |
| Display | 13.3 inches |
