Model |

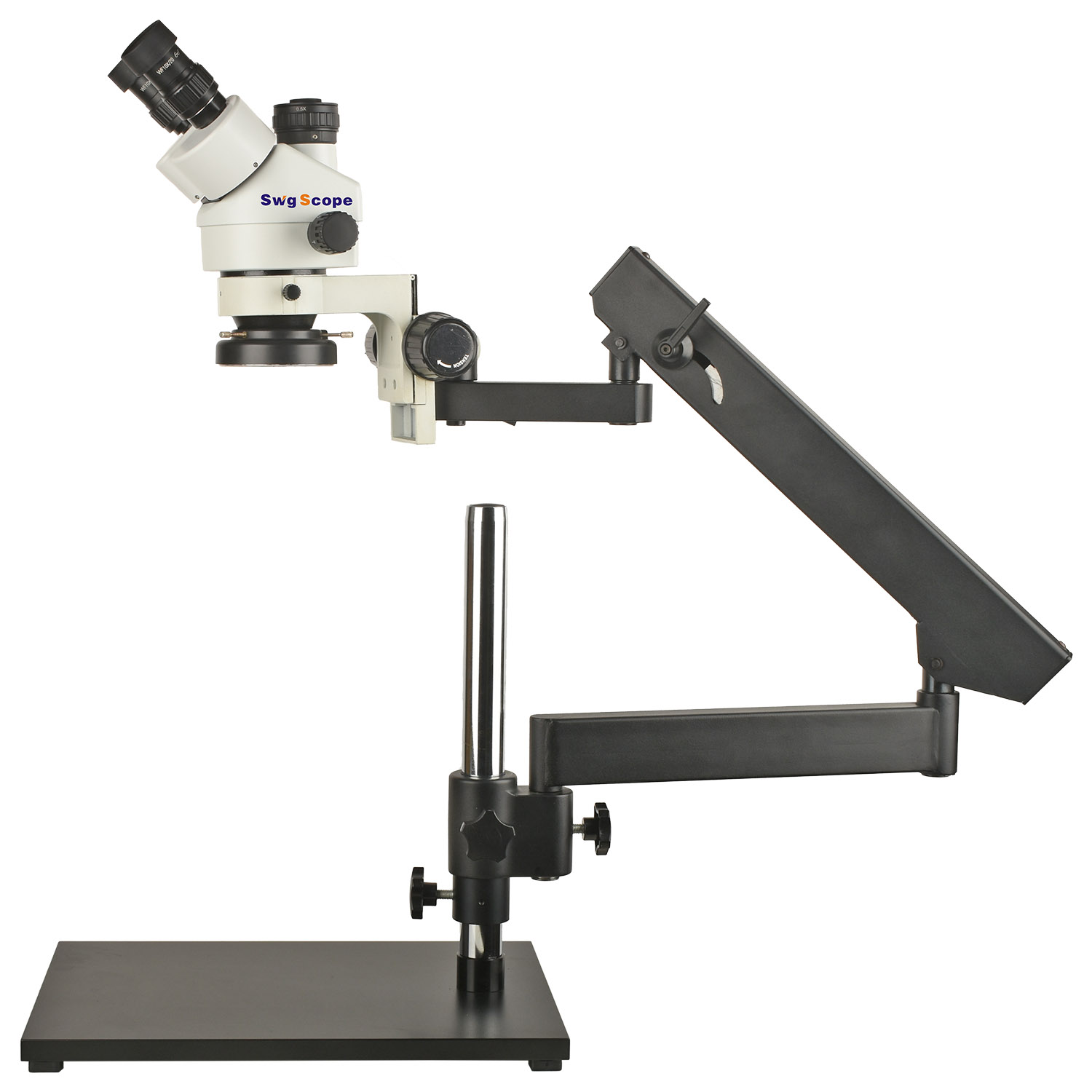

SWG-7045T-FLA |
Optical Enlargement |
3.5X-90X |
Field of View |
4.44mm-57.14mm |
Eyepiece |
High Eyespots Wide-Field Eyepiece WF10X/20,WF20X/10 |
Objective Lens |
0.7X-4.5X |
Viewing Head |
Trinocular Stereo Microscope View Head Inclined at 45°.
|
Working Distance |
100mm-165mm |
Camera Interface |
0.5X CTV |
Focusing Bracket |
Focusing Handwheel Tightness is Adjustable,lifting Range 50mm |
LED Light Source |
LED Qty 64,Internal Diameter Size 62mm,
|
Rocker Bracket |
Column Height 360mm,Column Diameter Φ32mm,Base size:260X380mm,weight: 12kg Size:170X340X460mm, Horizontal Rotation Range 360° Rotation。 |
Auxiliary Lens |
0.5X/165mm,1X Oil Proof Mirror |
