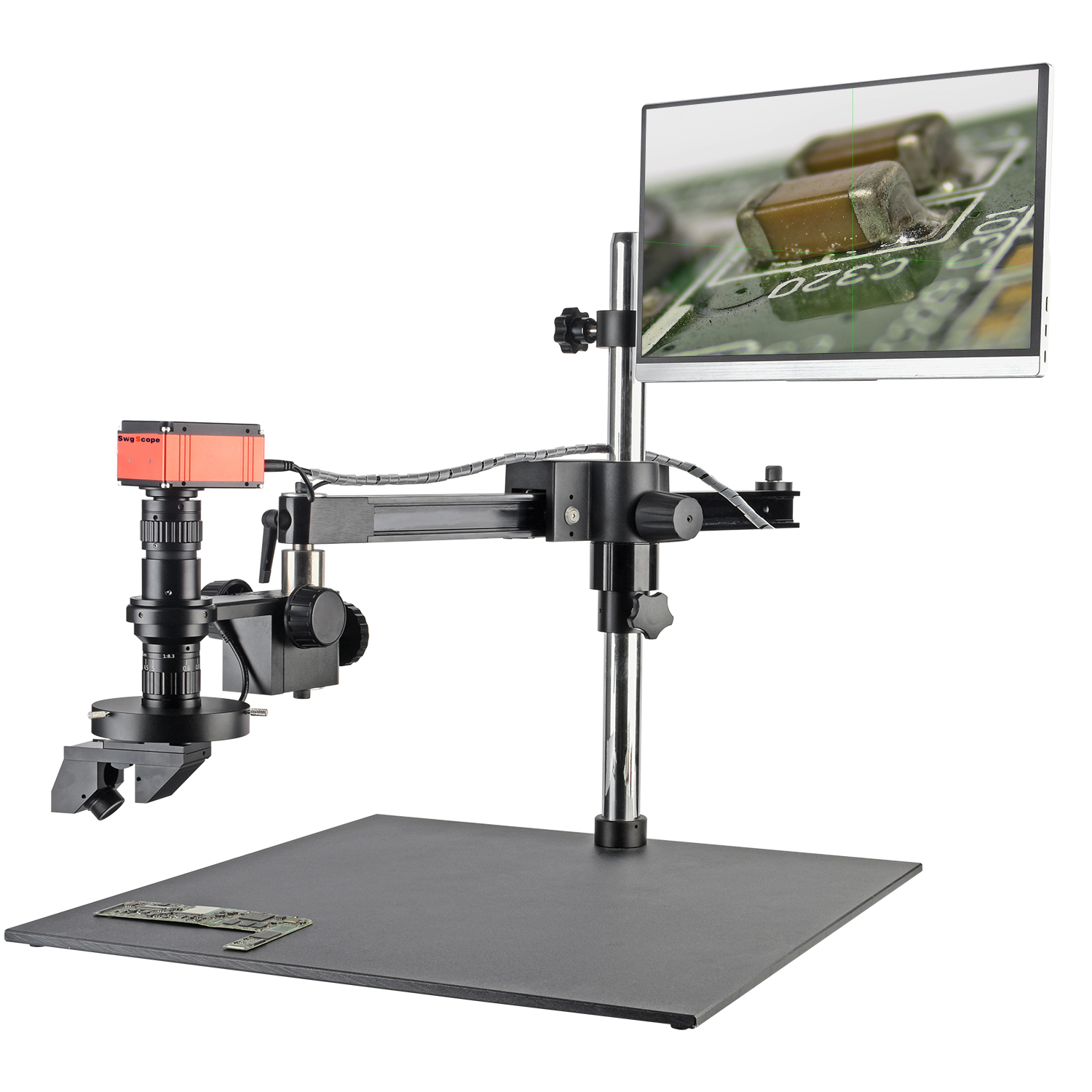

Model |
SWG-4K-3D |
Monitor |
15.6 Inch Monitor |
Magnification |
13X-111X |
Optical Magnification |
0.3-2.5X |
Eyepiece |
0.5X |
Objective Lens |
0.6X-5X |
3D Imaging Angle |
45° |
2D/3D Manual Switch |
The Working Distance Remains the Same,No Need to Refocus
|
Working Distance |
86mm |
Field of View |
3.54mm-29.53mm |
Cross arm Bracket |
Horizontal arm movement range: 330mm, column height 500mm,
|
LED Light Source |
208 LED lamp Beads,Four-Zone Control,Independently Adjustable Brightness,illuminance 15000 Lux,Wavelength 455-457.5nm,Output Voltage 12V 8W |
Sensor |
8.3 Million Pixels 4K HD |
Output Method |
HDMI、GigE |
Sensor Size |
1/1.8＂CMOS |
Resolution |
3840 X 2160,Photo Resolution 7680 X 4320 |
Like yuan size |
2.0μmX2.0μm |
Output Frame Rate |
60FPS |
Color Adjustment |
R、G、B Independently Adjustable |
White Balance |
Auto/Manual |
Image Adjustment |
Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
Storage Mode |
U Disk Storage,Photo Taking,Video Recording and Measurement |
GigE |
By connecting to a computer through a network port, image stitching and depth of field synthesis can be achieved. |
Measuring Function |
Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |
Storage Mode |
U Disk.Can Take Pictures.Video,and Measure |
Crosshair Function |
100 Groups Horizontal and vertical lines |
Lens Interface |
C Interface |
Power Supply |
AC100V-240V DC-12V |
