Model |

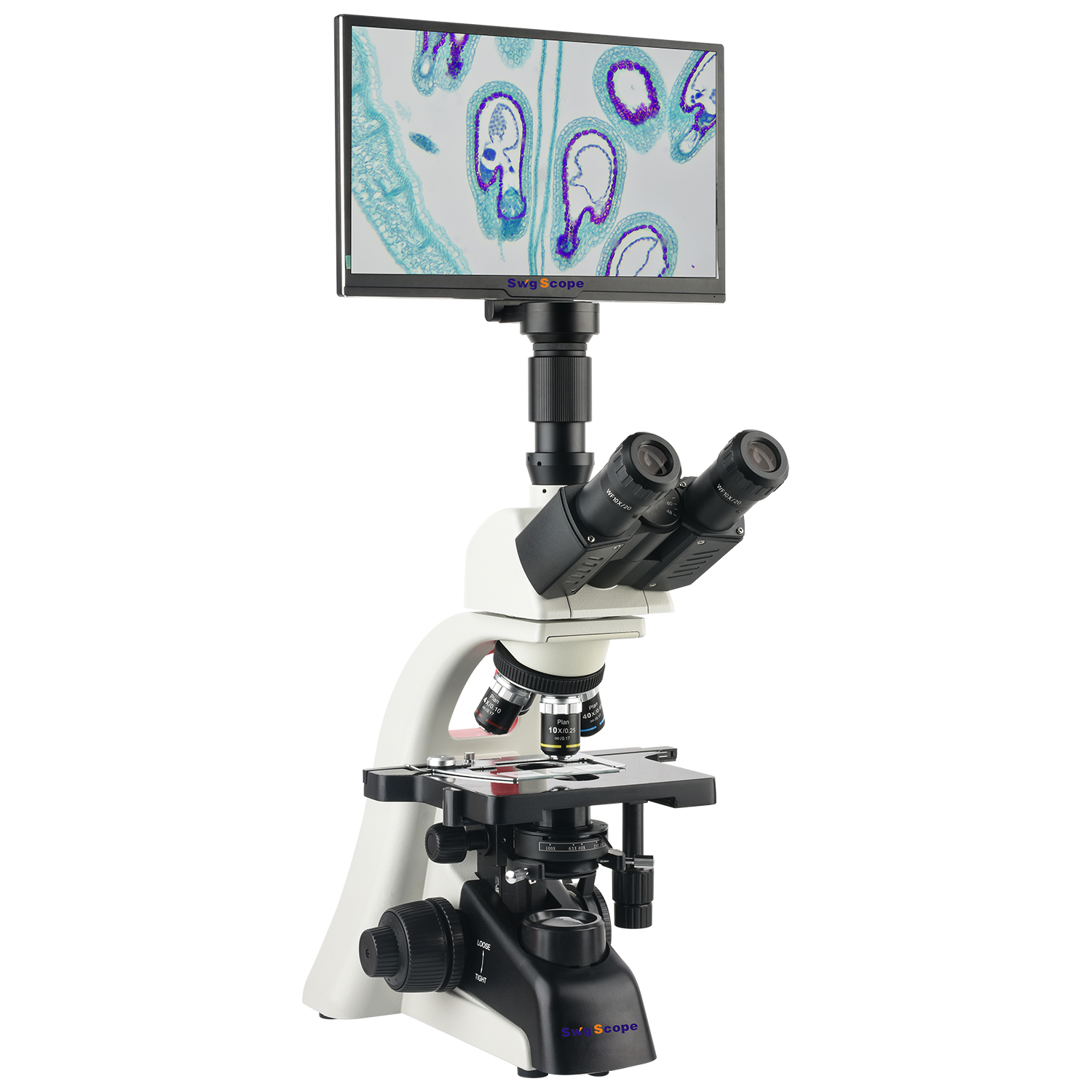

SWG-W1160 |
Optical Magnification |
40X-1600X |
Electronic Amplification |
182X-4560X |
Field of View |
0.06mm-1.61mm |
Observation Tube |
Hinge Trinocular,30 Degrees Inclined,360 Degrees Rotate Interpupillary Distance Adjustment Range 48mm-76mm |
Eyepiece |
Wide-angle Eyepiece WF10X/20mm,WF16 |
Objective Lens |
Infinite Flat Field Achromatic Objective
|
Converter |
Four Holes Conversion |
Operating Platform |
Right Hand Low Hand Control of X and Y Directions Platform Area:160mmX142mm,Moving Range 76mmX52mm |
Coarse Micro Focusing Mechanism |
Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke 22mm,Fine Adjustment Accuracy 0.002mm |
Condenser |
Abbe Condenser,N.A. = 1.25,Adjustable Center,With Variable Light bar and Filter Bracket |
Light Source |
Reflector Lamp Room,Single High Power 3W LED |
Power |
External Regulated Power Adapter,100V-250V_AC50/60Hz DC5V/2A |
Trinocular Interface |
1X |
Pixel |
5 Million Pixels 11.6-Inch All-in-One |
Output Method |
HDMI(You Can Connect a TV or Monitor With an HDMI Interface.) |
Sensor |
5M/Sony 1/2.8＂CMOS |
Photographic Resolution |
2592x1944 in JPG format,with 60 frames |
Video Resolution |
1080P 30 frames (1920X1080) MP4 format |
Pixel Size |
2μmx2μm |
Color Adjustment |
R、G、B Independently Adjustable |
White Balance |
Automatic/One-click |
Image Adjustment |
Exposure value,saturation, brightness,contrast,sharpness,noise reduction, black and white, supports image freezing and flipping,crosshair,supports horizontal/vertical flipping,supports 10X digital magnification,supports Chinese,English, and multiple languages |
Storage Mode |
U Disk Storage,Photo Taking,Video Recording and Measurement |
HDMI |
It can be connected to a monitor or an HDMI interface TV through the HDMI port. |
Power Supply |
AC100V-240V DC-12V |
Measuring Function |
Draw points,draw circles with radius,draw circles with two points,draw circles with three points,measure two distances,concentric circles,line distances,polygons,cross lines,rectangles,arcs,polylines,curves,straight lines,vertical lines,parallel lines,angle Measurement,text annotation, |
