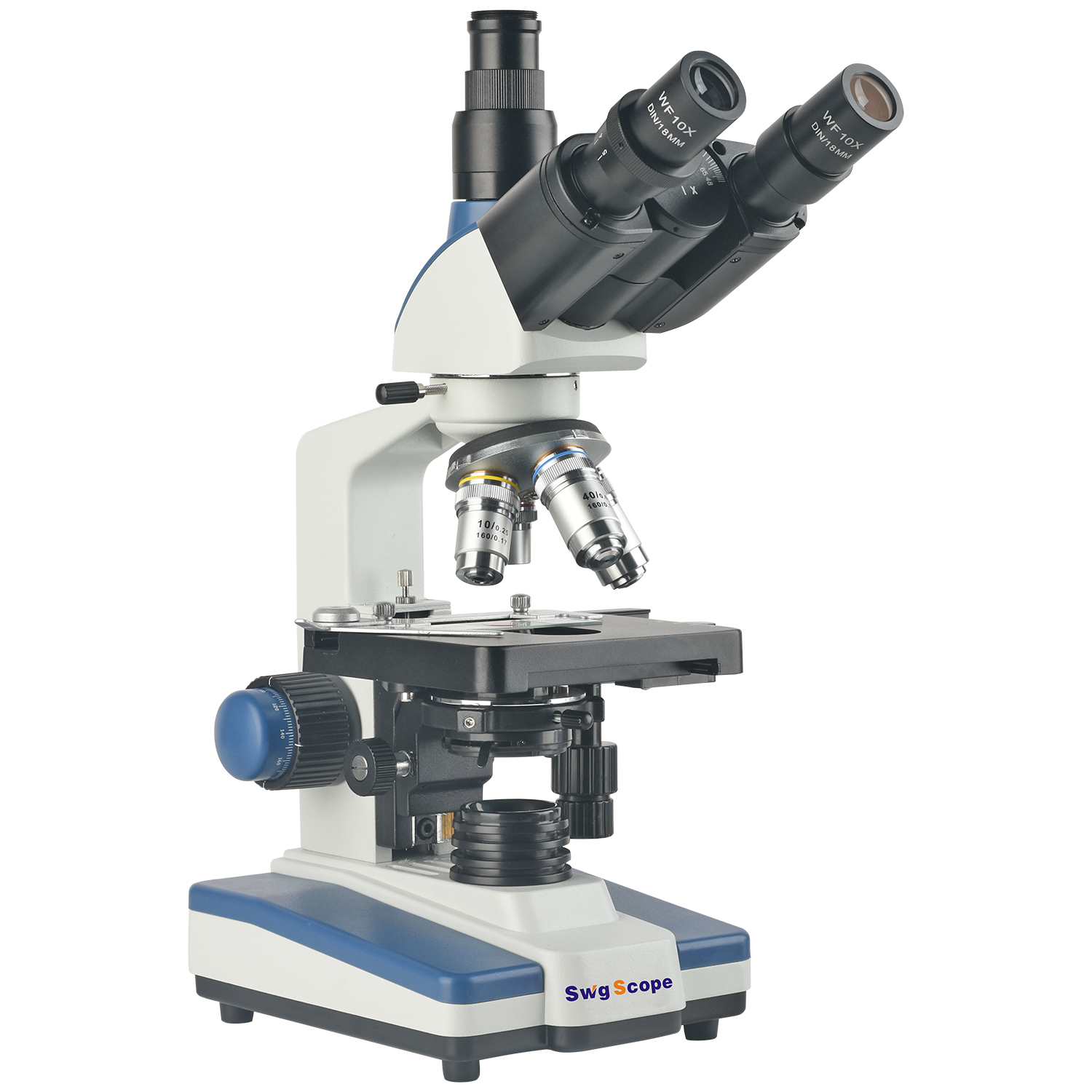

40X-2500X Trinocular Biological Microscope

Name: 40X-2500X Trinocular Biological Microscope
Brand: 斯威冠显微镜
SKU: SWG-W2300T
Availability: InStock
Rating: 5 (1 reviews)

Model: SWG-W2300T

Description

Model	SWG-W2300T
Optical Magnification	40X-2500X
Observation Tube	Hinge Trinocular,30 Degrees Inclined,360 Degrees Rotate Interpupillary Distance Adjustment Range 48mm-75mm
Eyepiece	Wide-angle Eyepiece WF10X/DIN18mm,WF25X/8m
Objective Lens	Flat Field Achromatic Objective 4/0.1 WD 36.5mm 10/0.25 WD 0.76mm 40/0.65 WD 0.53mm 100/1.25 WD 0.13mm (Oil Mirror)
Converter	Four Holes Conversion
Operating Platform	Right Hand Low Hand Control of X and Y Directions Platform Area:125mmX115mm,Moving Range 76mmX52mm
Coarse Micro Focusing Mechanism	Coarse Adjustment Stroke 20mm,Fine Adjustment Accuracy 0.002mm
Condenser	Abbe Condenser,N.A.=1.25,With Variable Aperture
Light Source	LED Cold Light Source 1W
Power	External Regulated Power Adapter,85V-240V_AC50/60Hz
Trinocular Interface	1X Trinocular Interface (Can be Connected to 25mm Camera and 23.2 Electronic Eyepiece)
Packaging	Bubble+Carton
