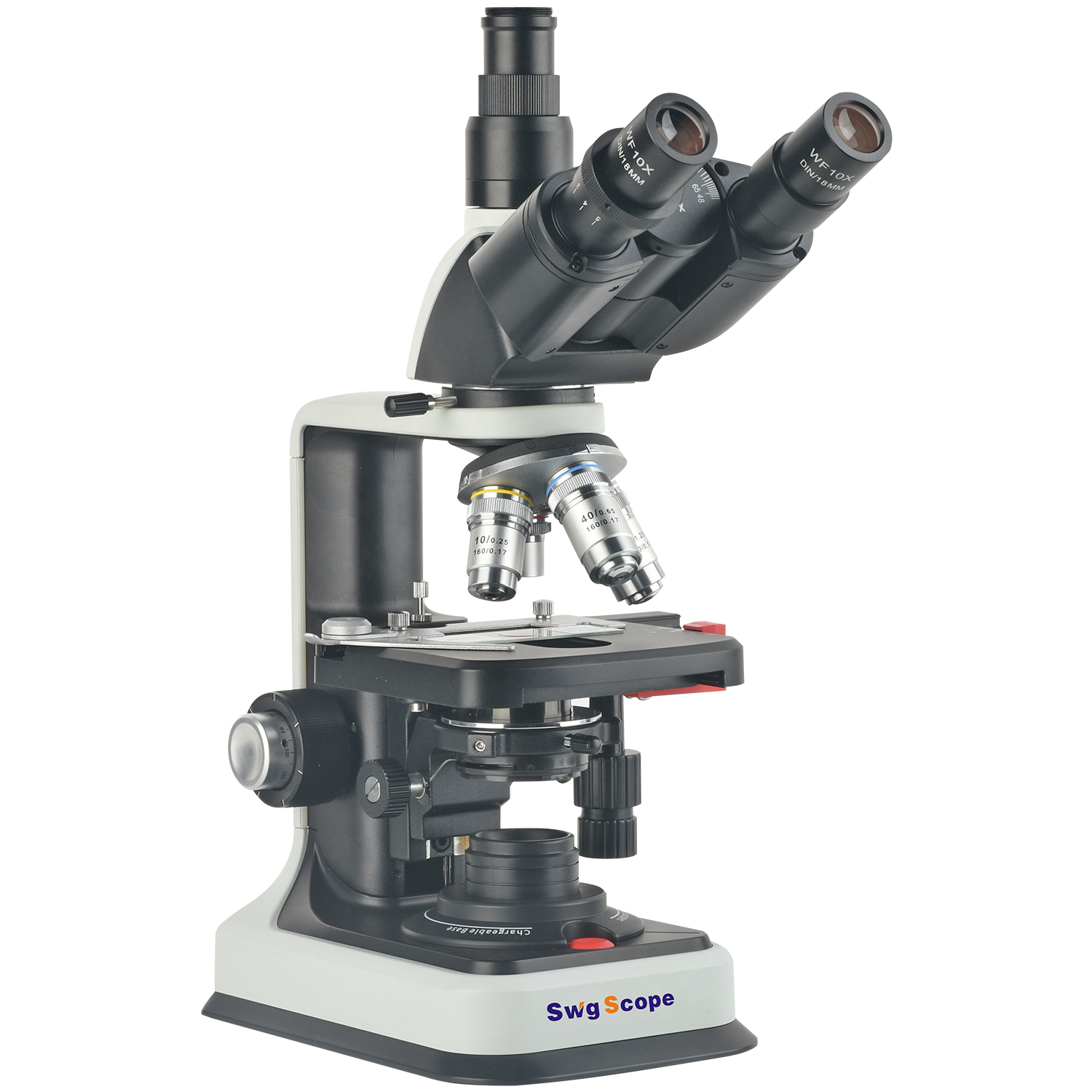

40X-2500X Trinocular Lab Biological Microscope Flat Field Achromatic Objective

Name: 40X-2500X Trinocular Lab Biological Microscope Flat Field Achromatic Objective
Brand: 斯威冠显微镜
SKU: SWG-2600T
Availability: InStock
Rating: 5 (1 reviews)

Model: SWG-2600T

Description

Model	SWG-2600T
Optical Magnification	40X-2500X
Observation Tube	Hinge Trinocular,30 Degrees Inclined,360 Degrees Rotate Interpupillary Distance Adjustment Range 48mm-75mm
Eyepiece	Wide-angle Eyepiece WF10X/DIN18mm,WF25X
Objective Lens	Flat Field Achromatic Objective 4/0.1 WD 36.5mm 10/0.25 WD 0.76mm 40/0.65 WD 0.53mm 100/1.25 WD 0.13mm (Oil Mirror)
Converter	Four Holes Conversion
Operating Platform	Right Hand Low Hand Control of X and Y Directions Platform Area:125mmX115mm,Moving Range 76mmX52mm
Coarse Micro Focusing Mechanism	Coarse Adjustment Stroke 20mm,Fine Adjustment Accuracy 0.002mm
Condenser	Abbe Condenser,N.A.=1.25,With Variable Aperture
Light Source	Type-C interface,LED Cold Light Source 1W
Power	External Regulated Power Adapter, 100V-240V_AC50/60Hz DC5V/1A
Trinocular Interface	1X Trinocular Interface (Can be Connected to 25mm Camera and 23.2 Electronic Eyepiece)
Packaging	Bubble+Carton

40X-2500X Trinocular Lab Biological Microscope Flat Field Achromatic Objective

Model

SWG-2600T

Optical Magnification

40X-2500X

Observation Tube

Hinge Trinocular,30 Degrees Inclined,360 Degrees Rotate Interpupillary Distance Adjustment Range 48mm-75mm

Eyepiece

Wide-angle Eyepiece WF10X/DIN18mm,WF25X

Objective Lens

Flat Field Achromatic Objective 4/0.1 WD 36.5mm 10/0.25 WD 0.76mm 40/0.65 WD 0.53mm 100/1.25 WD 0.13mm (Oil Mirror)

Converter

Four Holes Conversion

Operating Platform

Right Hand Low Hand Control of X and Y Directions Platform Area:125mmX115mm,Moving Range 76mmX52mm

Coarse Micro Focusing Mechanism

Coarse Adjustment Stroke 20mm,Fine Adjustment Accuracy 0.002mm

Condenser

Abbe Condenser,N.A.=1.25,With Variable Aperture

Light Source

Type-C interface,LED Cold Light Source 1W

Power

External Regulated Power Adapter, 100V-240V_AC50/60Hz DC5V/1A

Trinocular Interface

1X Trinocular Interface (Can be Connected to 25mm Camera and 23.2 Electronic Eyepiece)

Packaging

Bubble+Carton

Hinge Trinocular,30 Degrees Inclined,360 Degrees Rotate
Interpupillary Distance Adjustment Range 48mm-75mm

Flat Field Achromatic Objective
4/0.1 WD 36.5mm
10/0.25 WD 0.76mm
40/0.65 WD 0.53mm
100/1.25 WD 0.13mm (Oil Mirror)
