Model |

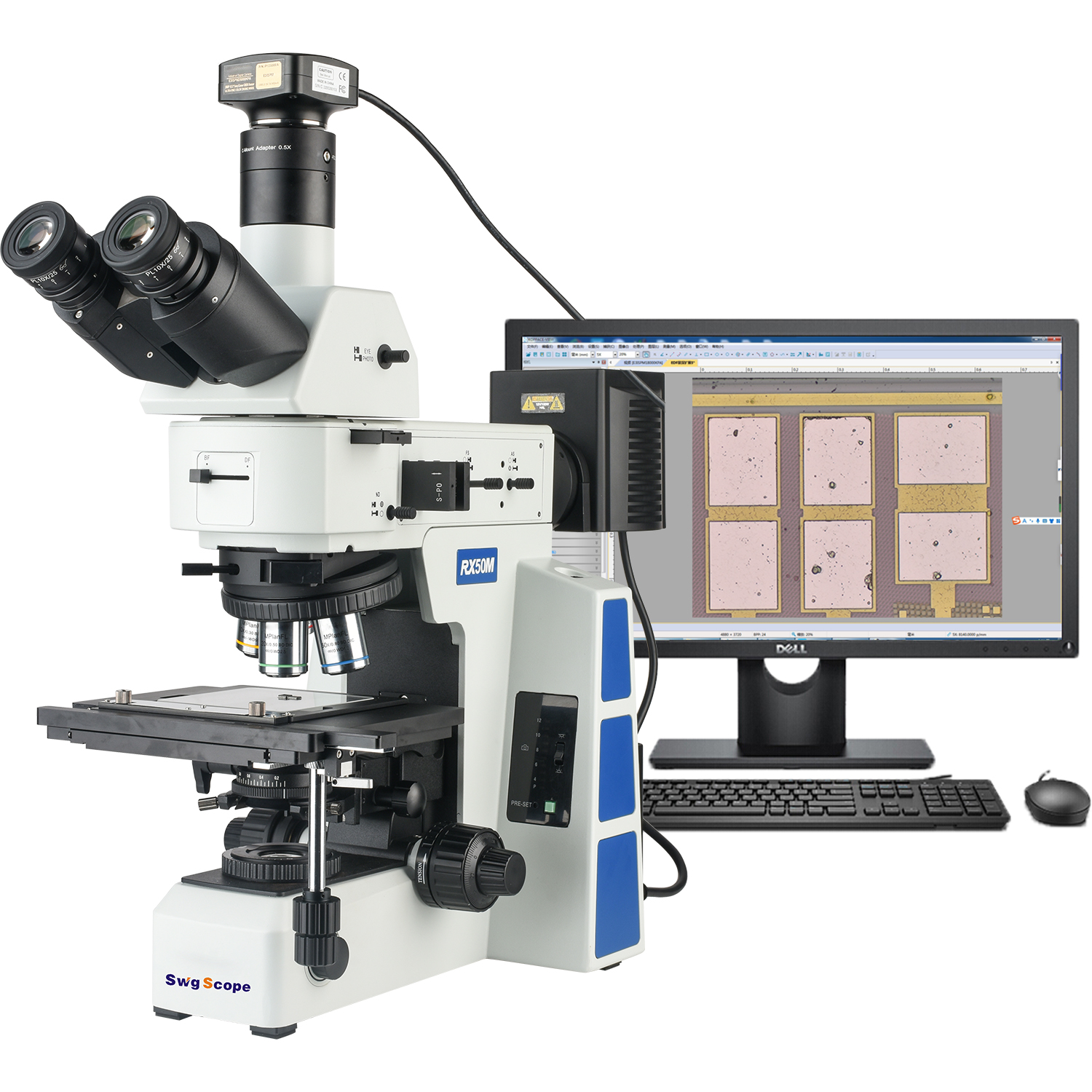

SWG-RX50M-25M |
Optical Magnification |
50X-500X |
Electronic Amplification |
177X-1772X |
Optical System |
Infinite Achromatic Correction Optical Aystem (Semi Apochromatic) |
Eyepiece |
High Eye Point Large Field of View Flat Field Eyepiece PL10X25mm |
Objective Lens |
Bright and Dark Field Semi Vanishing Achromatic Objective
|
Observation Tube |
30° Tilt,Positive Image,Infinitely Hinged Three-eye Viewing Cylinder,Pupil Distance Adjustment:50mm-76mm |
Converter |
Bright and Dark Field Five-Hole Converter With DIC Slot |
Focusing System |
Transparent and Reflective Dual Purpose Frame,Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke of 28mm,Fine Adjustment Accuracy of 0.001 mm.It is Equipped With an Adjusting Elastic Device and a Random upper Limit Device to Prevent Sliding. |
Operating Platform |
Right-hand 4-Inch Mechanical Platform,Stroke 102mm×105mm,With Y-axis Locking Mechanism,With Light Barrier,With Glass Stage Plate |
Lighting System |
Built-in 100-240V Wide Voltage System,Dual Power Output,Using Digital Dimming;
|
Condenser |
Achromatic Condenser N.A.0.9,Variable aperture diaphragm,Center Adjustable |
Polarizer |
Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
Trinocular Interface |
0.5X C-mount Interface,Adjustable Focus |
Pixel |
25 Million Pixels |
Output Method |
USB3.0 |
Sensor |
25M/SONY IMX511(C) |
Sensor Size |
1/2.3 “ (5.519x5.519) |
Pixel Size |
1.12μmx1.12μm |
Resolution Frame Rate |
12@4928x4928，46@2464x2464，100@1648x1648 |
Exposure Time |
0.013ms~15s |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python, Java,DirectShow,Twain,etc); |
Operating System |
Microsoft Windows /Vista / 8 /10 /11(32 & 64 bit) OS X (Mac OS X),Linux |
File Save |
Can Set File Name,Save Pictures With Time Format,Save Path Selection |
Image Adjustment |
Hue,Saturation,Brightness,Contrast,Sharpness,Color,Grayscale |
Shooting Mode |
Images and Videos |
Camera Function |
Advanced software for Windows:
|
