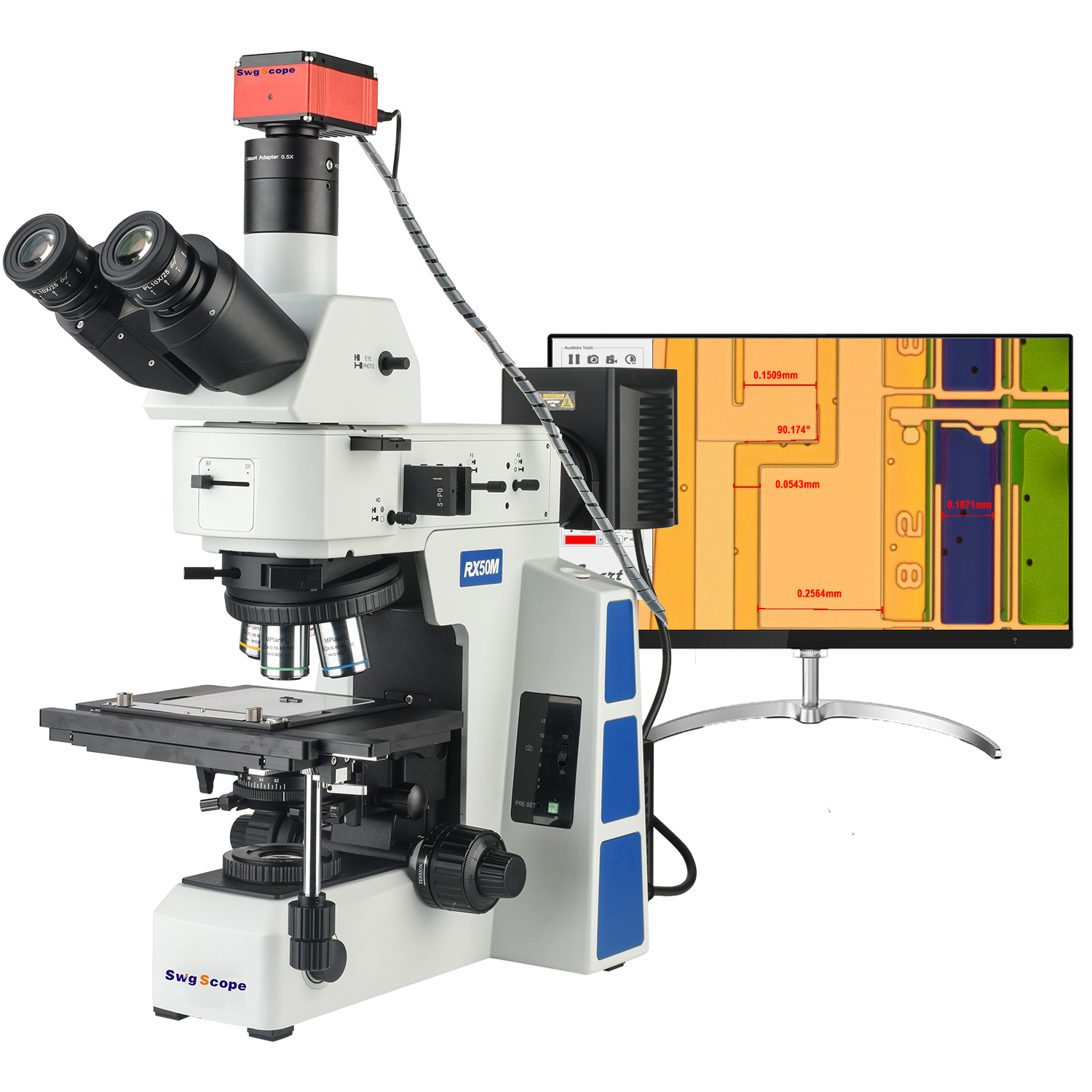

50X-500X Bright and Dark Field Electron Metallographic Microscope 4K HD Imaging

Name: 50X-500X Bright and Dark Field Electron Metallographic Microscope 4K HD Imaging
Brand: 斯威冠显微镜
SKU: SWG-RX50M-4K
Availability: InStock
Rating: 5 (1 reviews)

Model: SWG-RX50M-4K

Description

Model	SWG-RX50M-4K
Electronic Amplification	193X-1935X
Optical Magnification	50X-500X
Optical System	Infinite Achromatic Correction Optical Aystem (Semi Apochromatic)
Eyepiece	High Eye Point Large Field of View Flat Field Eyepiece PL10X25mm
Objective Lens	Bright and Dark Field Semi Vanishing Achromatic Objective MPlanFL 5X/0.15 BD DIC WD 13.5mm,NA=0.15 MPlanFL 10X/0.3 BD DIC WD 9mm,NA=0.30 MPlanFL 20X/0.5BD DIC WD 2.5mm,NA=0.50 MPlanFL 50X/0.8 BD DIC WD 1.0mm,NA=0.80
Observation Tube	30° Tilt,Positive Image,Infinitely Hinged Three-eye Viewing Cylinder,Pupil Distance Adjustment:50mm-76mm
Objective Lens Converter	Bright and Dark Field Five-Hole Converter With DIC Slot
Focusing System	Transparent and Reflective Dual Purpose Frame,Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke of 28mm,Fine Adjustment Accuracy of 0.001 mm.It is Equipped With an Adjusting Elastic Device and a Random upper Limit Device to Prevent Sliding.
Operating Platform	Right-hand 4-Inch Mechanical Platform,Stroke 102mm×105mm,With Y-axis Locking Mechanism,With Light Barrier,With Glass Stage Plate
Lighting System	Built-in 100-240V Wide Voltage System,Dual Power Output,Using Digital Dimming; With Light Intensity Setting and Reset Function,Reflection,Transmission Light Switch; Built-in Transmission Filter LBD, ND6, ND25 Light and Dark Field Reflector, With Variable Aperture Aperture,Field of View Aperture,Center Adjustable; With Light and Dark Field Lighting Switching Device;With a Color Filter Slot and a Polarizing Device Slot; Transreflection Lighting System,12V100W Halogen lamp Room;
Condenser	Achromatic Condenser N.A.0.9,Variable aperture diaphragm,Center Adjustable
Polarizer	Polarizer Insert Plate,360°Rotating Analyzer Insert Plate
Trinocular Interface	0.5X C-mount Interface
Pixel	8.3 Million Pixels
Output Method	HDMI、GigE、USB3.0
Sensor	8.3M/Sony 1/1.8＂CMOS
Sensor Size	1/1.8" CMOS
Resolution Frame Rate	3840X2160,(Photo can be Manually and Automatically Named file Name)
Video Resolution	4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080)
Frame Rate	60 Frame
Pixel Size	2.0μmx2.0μm
Color Adjustment	R、G、B
Exposure	Auto/Manual
White Balance	Auto/Manual
Image Adjustment	Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback
Storage Mode	U Disk Storage,Can take Photos,Video,Measurement
GigE/USB3.0	By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved.
Cross Hair	Support 100 Groups Cross Line,The Color Position is Adjustable
Measuring Function	Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching

50X-500X Bright and Dark Field Electron Metallographic Microscope 4K HD Imaging

Model

SWG-RX50M-4K

Electronic Amplification

193X-1935X

Optical Magnification

50X-500X

Optical System

Infinite Achromatic Correction Optical Aystem (Semi Apochromatic)

Eyepiece

High Eye Point Large Field of View Flat Field Eyepiece PL10X25mm

Objective Lens

Bright and Dark Field Semi Vanishing Achromatic Objective MPlanFL 5X/0.15 BD DIC WD 13.5mm,NA=0.15 MPlanFL 10X/0.3 BD DIC WD 9mm,NA=0.30 MPlanFL 20X/0.5BD DIC WD 2.5mm,NA=0.50 MPlanFL 50X/0.8 BD DIC WD 1.0mm,NA=0.80

Observation Tube

30° Tilt,Positive Image,Infinitely Hinged Three-eye Viewing Cylinder,Pupil Distance Adjustment:50mm-76mm

Objective Lens Converter

Bright and Dark Field Five-Hole Converter With DIC Slot

Focusing System

Transparent and Reflective Dual Purpose Frame,Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke of 28mm,Fine Adjustment Accuracy of 0.001 mm.It is Equipped With an Adjusting Elastic Device and a Random upper Limit Device to Prevent Sliding.

Operating Platform

Right-hand 4-Inch Mechanical Platform,Stroke 102mm×105mm,With Y-axis Locking Mechanism,With Light Barrier,With Glass Stage Plate

Lighting System

Condenser

Achromatic Condenser N.A.0.9,Variable aperture diaphragm,Center Adjustable

Polarizer

Polarizer Insert Plate,360°Rotating Analyzer Insert Plate

Trinocular Interface

0.5X C-mount Interface

Pixel

8.3 Million Pixels

Output Method

HDMI、GigE、USB3.0

Sensor

8.3M/Sony 1/1.8＂CMOS

Sensor Size

1/1.8" CMOS

Resolution Frame Rate

3840X2160,(Photo can be Manually and Automatically Named file Name)

Video Resolution

4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080)

Frame Rate

60 Frame

Pixel Size

2.0μmx2.0μm

Color Adjustment

R、G、B

Exposure

Auto/Manual

White Balance

Auto/Manual

Image Adjustment

Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback

Storage Mode

U Disk Storage,Can take Photos,Video,Measurement

GigE/USB3.0

By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved.

Cross Hair

Support 100 Groups Cross Line,The Color Position is Adjustable

Measuring Function

Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching

Bright and Dark Field Semi Vanishing Achromatic Objective
MPlanFL 5X/0.15 BD DIC WD 13.5mm,NA=0.15
MPlanFL 10X/0.3 BD DIC WD 9mm,NA=0.30
MPlanFL 20X/0.5BD DIC WD 2.5mm,NA=0.50
MPlanFL 50X/0.8 BD DIC WD 1.0mm,NA=0.80
