Model |

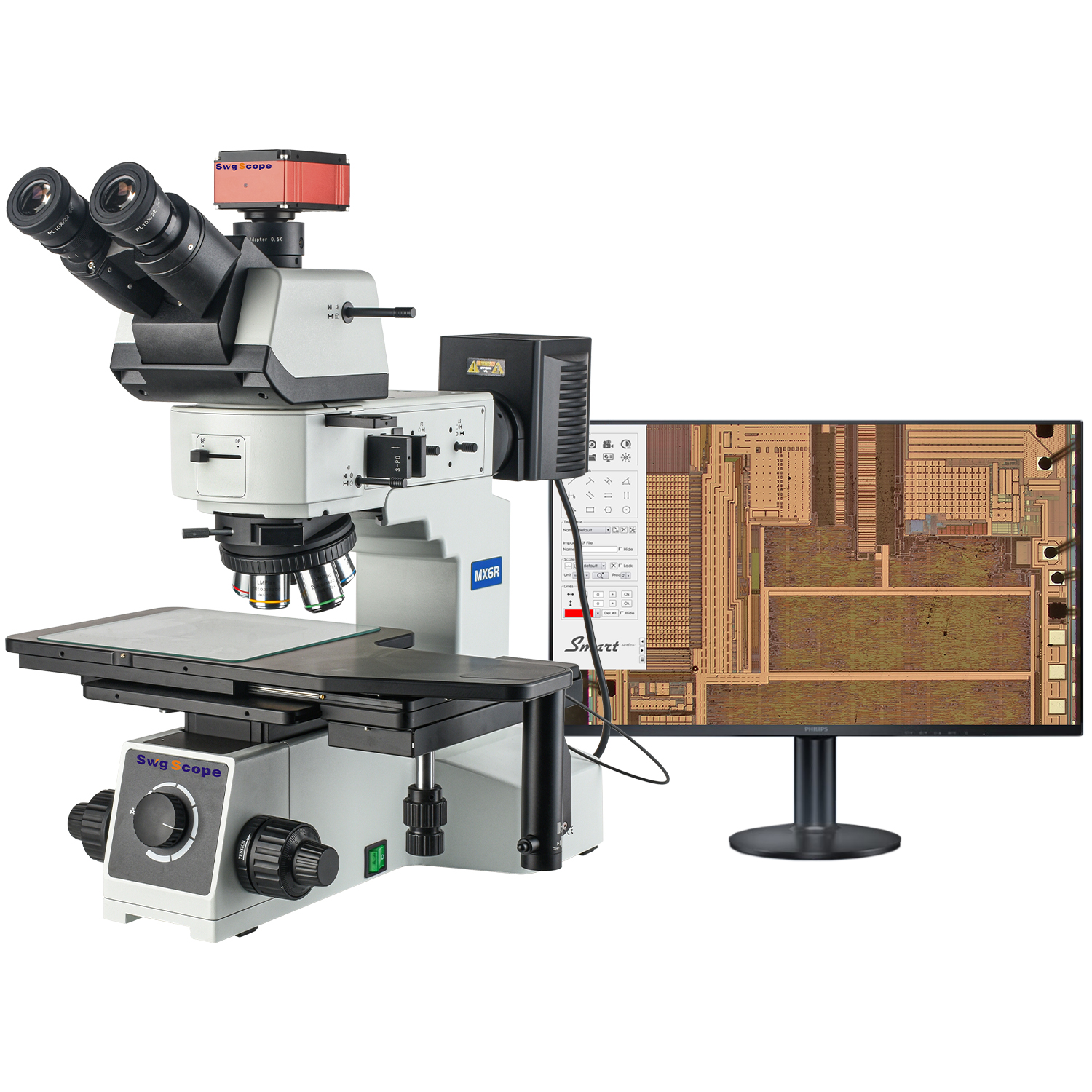

SWG-MX6RT-4K |
Optical Magnification |
50X-500X |
Electronic Amplification |
193X-1935X |
Optical System |
Infinity Chromatic Aberration Correction Optical System |
Eyepiece |
High Eye Point large Field of View flat Field Eyepiece PL10X22mm |
Objective Lens |
LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective
|
Observation Tube |
Adjustable 5-35° inclination angle Tthree-Way Observation Tube With Infinite Hinge, Interpupillary Distance Adjustment:50-76mm,Unilateral Diopter Adjustment:±5 Diopter, |
Converter |
Bright and Dark Field Five-Hole Converter With DIC Slot |
Coarse and Fine Focusing Mechanism |
Translucent and Reflective Frame,Front low-Hand Position Coarse and Fine Coaxial Focus Adjustment Mechanism.Coarse Adjustment Stroke 33mm,Fine Adjustment Accuracy 0.001mm.With Adjustment Elastic Device to Prevent Sliding and Random Upper limit Device |
Operating Platform |
6-Inch Three-layer Mechanical Mobile Platform,Low-Hand Position X,Y Direction Coaxial Adjustment,Platform Area 450mmX220mm,Reflected illumination Movement Range:158mmX158mm;Transmission illumination Movement Range:100X100mm,With Clutch Handle,Can Be Used For All Fast Moving Within The Range of Travel,Glass Stage Plate (For Transmission and Reflection) |
Upper Lighting System |
Built-In 100-240V Wide Voltage System,5W Warm Color LED Transmitted Light illumination System,Independent Control of Upper and Lower Light;With Filter Slot and Polarizing Device Slot; With Bright and Dark Field Switching Mechanism,Preset Center,Light Intensity Continuously Adjustable |
Under Lighting System |
Single High-Power 5W,LED White Light,Continuous Adjustable Light Intensity |
Polarizer |
Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
Trinocular Interface |
0.5X C-mount Interface,Adjustable Focus |
Pixel |
8.3 Million Pixels |
Output Method |
HDMI、GigE、USB3.0 |
Sensor |
8.3M/Sony 1/1.8＂CMOS |
Photographic Resolution |
3840X2160,(Photo can be Manually and Automatically Named file Name) |
Video Resolution |
4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
Pixel Size |
2.0μmX2.0μm |
Frame Rate |
60FPS |
Color Adjustment |
R、G、B Independently Adjustable |
White Balance |
Auto/Manual |
Image Adjustment |
Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
Storage Mode |
U Disk Storage,Photo Taking,Video Recording and Measurement |
GigE/USB3.0 |
By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |
Cross Hair |
Support 100 Groups Cross Line,The Color Position is Adjustable |
Measuring Function |
Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |
