Model |

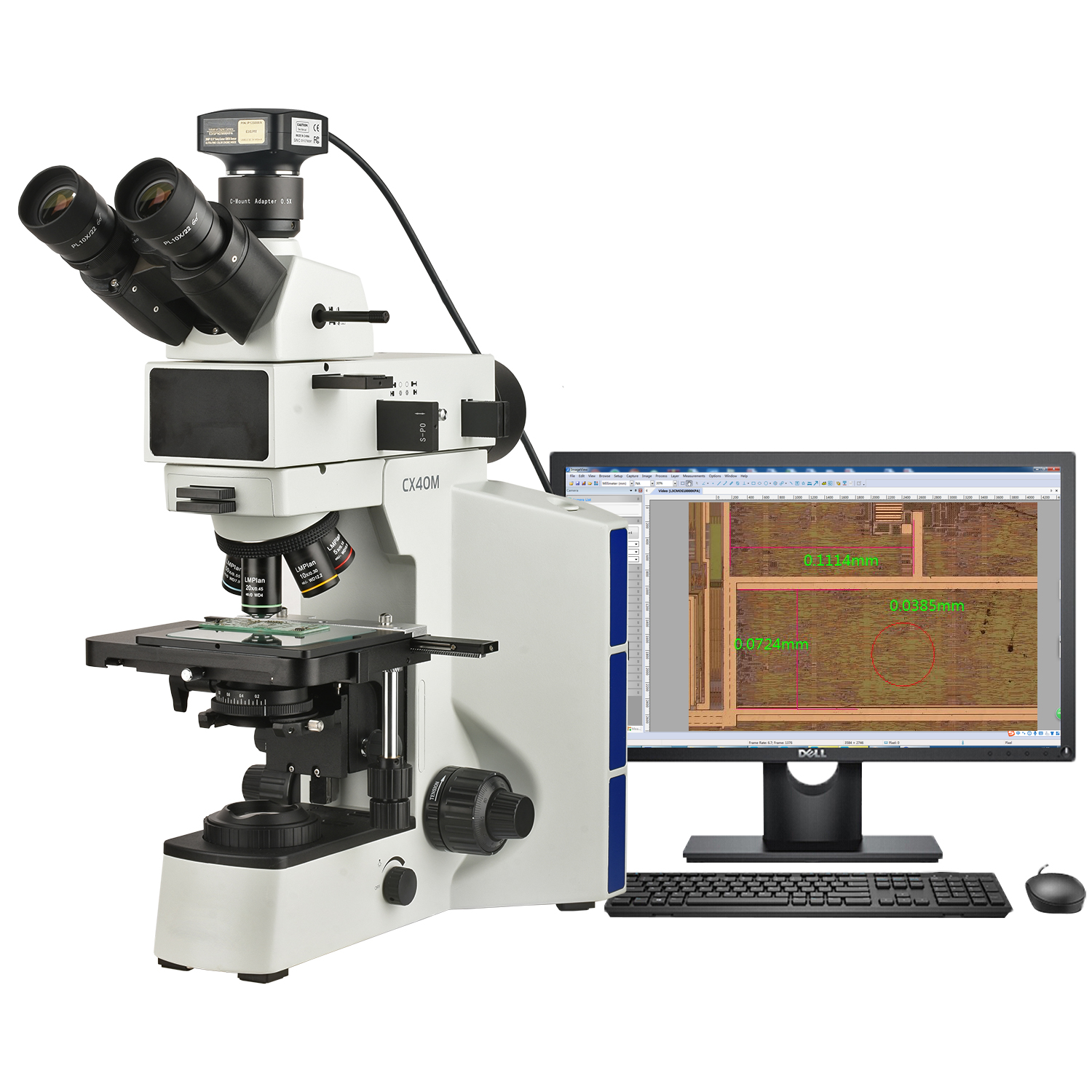

CX40U |
Electronic Amplification |
177X-1772X |
Optical Magnification |
50X、100X、200X、500X |
Optical System |
Infinity Chromatic Aberration Correction Optical System |
Eyepiece |
High Eye Point Large Field of View Flat Field Eyepiece PL10X22mm |
Objective Lens |
Infinity Long Working Distance Flat Field Achromatic Metallographic Objective
|
Observation Tube |
30° Tilt,Inverted Image,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 54-75mm |
Objective Lens Converter |
Internal Positioning Five-Hole Converter |
Focusing System |
low-Handed Coarse and Micro-Coaxial Focusing Mechanism,Coarse Adjustment Stroke 28mm,Fine Adjustment Accuracy 0.002mm.Adjustable Tensioning Device With Anti-Slip and Random upper limit Device.Up and Down Adjustment Mechanism With Platform Position,Maximum Sample Height 28mm |
Operating Platform |
Double-layer Mechanical Moving Platform,Coaxial Adjustment of X and Y Directions in low hand Position;Platform Size 175mmX145mm,Moving Range:76mmX42mm |
Upper Lighting System |
Built In 100-240V Wide Voltage System,5WLED,Warm Color,Upper Lighting System,Cora illumination,Field of View Resizing,Aperture Size Adjustment,Adjustable Center |
Lower Lighting System |
Built In 100-240V Wide Voltage System,5WLED,Warm Color,Brightness Control. |
Condenser |
Abbe condenser,Numerical Aperture N.A0.9,With Variable aperture Adjustment,Center Adjustable |
Polarized Light Device |
Polarizer and Analyzer |
Trinocular Interface |
Three Eye Interface 0.5X CTV |
Pixel |
25 Million Pixels |
Output Method |
USB3.0 |
Sensor |
25M/SONY IMX511(C) |
Sensor Size |
1/2.3 “ (5.519x5.519) |
Resolution Frame Rate |
12@4928x4928,46@2464x2464,100@1648x1648 |
Pixel Size |
1.12μmx1.12μm |
Exposure Time |
0.013ms~15s |
White Balance |
ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique |
Ultra Fine Color Engine |
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python, Java,DirectShow,Twain,etc); |
Operating System |
Microsoft Windows/Vista/7/8/10(32 & 64 bit)OS X (Mac OS X), Linux |
File Save |
Can Set File Name,Save Pictures With Time Format,Save Path Selection |
Image Adjustment |
Hue,Saturation,Brightness,Contrast,Sharpness,Color,Grayscale |
Shooting Mode |
Images and Videos |
Camera Function |
Advanced Software For Windows:
|
