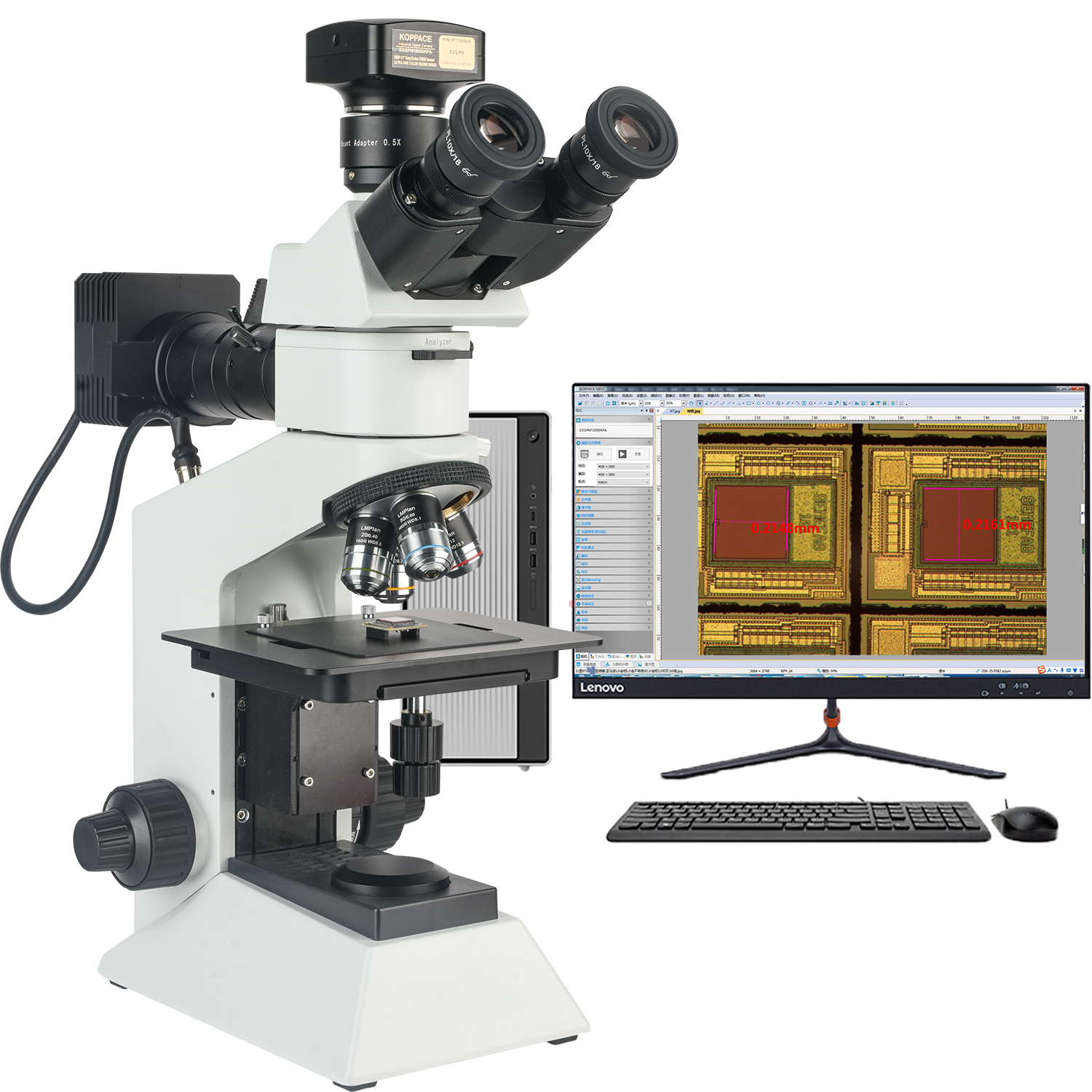

| Model | SWG-BH2500U |
| Optical Magnification | 50X,100X,200X,500X |
| Electronic Amplification | 177X-1772X |
| Optical System | Finite Vision Optical System |
| Eyepiece | High Eye Point Large Field of View Flat Field Eyepiece PL10X18mm |
| Objective Lens | Long Working Distance Finite Flat Field Achromatic Metallographic Objective LMPlan 5X/0.13 WD 15.5mm LMPlan 10X/0.25 WD 8.7mm LMPlan 20X/0.4 WD 8.8mm LMPlan 50X/0.6 WD 5.1mm |
| Observation Tube | 30° Tilt,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 54-75mm,Diopter Adjustment ±5 |
| Converter | Five Hole Converter |
| Focusing System | Coarse and Micro Coaxial Focusing Mechanism,Fine Adjustment Accuracy 0.002mm,With Locking and Limiting Device |
| Operating Platform | Double-layer Mechanical Moving Platform,(Attachment 102X102mm Flat Plate) Right Hand Low Hand Control of X and Y Directions Platform Area:140mmX132mm,Moving Range 76mmX50mm |
| Up and Down Lighting System | Built In 100-240V Wide Voltage System,Single High-Power 5W LED,Warm Color |
| Trinocular Interface | 0.5X C-Mount Interface,Adjustable Focus |
| Condenser | Abbe Condenser,Numerical Aperture N.A.1.25,With Aperture Diaphragm and Color Filter Bracket |
| Pixel | 25 Million Pixels |
| Output Method | USB3.0 |
| Sensor | 25M/SONY IMX511(C) |
| Sensor Size | 1/2.3 “ (5.519x5.519) |
| Resolution Frame Rate | 12@4928x4928，46@2464x2464，100@1648x1648 |
| Pixel Size | 1.12μmx1.12μm |
| Exposure Time | 0.013ms~15s |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python, Java,DirectShow,Twain,etc); |
| Operating System | Microsoft Windows /Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X),Linux |
| File Save | Can Set File Name,Save Pictures With Time Format,Save Path Selection |
| Image Adjustment | Hue,Saturation,Brightness,Contrast,Sharpness,Color,Grayscale |
| Shooting Mode | Images and Videos |
| Camera Function | Advanced Software For Windows: - Provide the SDK - Provides Splicing,EDF,Video Recording and Measurement Functions; - Perform Measurements of Length,Angle,Radian,Area,Etc; |
