Model |

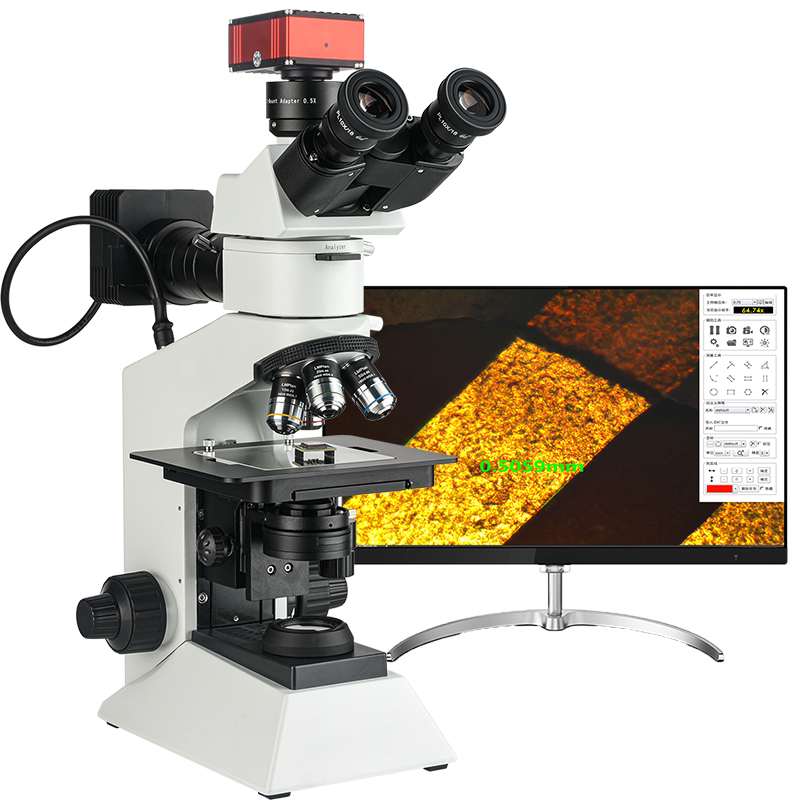

SWG-BH200MX |
Optical Magnification |
50X,100X,200X,500X |
Electronic Amplification |
192X-1926X |
Optical System |
Finite Vision Optical System |
Eyepiece |
High Eye Point Large Field of View Flat Field Eyepiece PL10X18mm |
Objective Lens |
Long Working Distance Finite Flat Field Achromatic Metallographic Objective
|
Observation Tube |
30° Tilt,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 54-75mm,Diopter Adjustment ±5 |
Converter |
Five Hole Converter |
Focusing System |
Coarse and Micro Coaxial Focusing Mechanism,Fine Adjustment Accuracy 0.002mm,With Locking and Limiting Device |
Operating Platform |
Double-layer Mechanical Moving Platform,(Attachment 102X102mm Flat Plate)
|
Up and Down Lighting System |
Built In 100-240V Wide Voltage System,Single High-Power 5W LED,Warm Color |
Polarizer |
Not included Polarizer and Analyzer |
Trinocular Interface |
0.5X C-Mount Interface,Adjustable Focus |
Condenser |
Abbe Condenser,Numerical Aperture N.A.1.25,With Aperture Diaphragm and Color Filter Bracket |
Pixel |
8.3 Million Pixels |
Output Method |
HDMI、GigE、USB3.0 |
Sensor |
8.3M/Sony 1/1.8＂CMOS |
Photographic Resolution |
3840X2160,(Photo can be Manually and Automatically Named file Name) |
Video Resolution |
4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
Pixel Size |
2.0μmX2.0μm |
Frame Rate |
60FPS |
Color Adjustment |
R/G/B |
White Balance |
Auto/Manual |
Image Adjustment |
Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
Storage Mode |
U Disk Storage,Photo Taking,Video Recording and Measurement |
GigE/USB3.0 |
By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |
Cross Hair |
Support 100 Groups Cross Line,The Color Position is Adjustable |
Power Supply |
AC100V-240V DC-12V |
Measuring Function |
Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |
