Model |

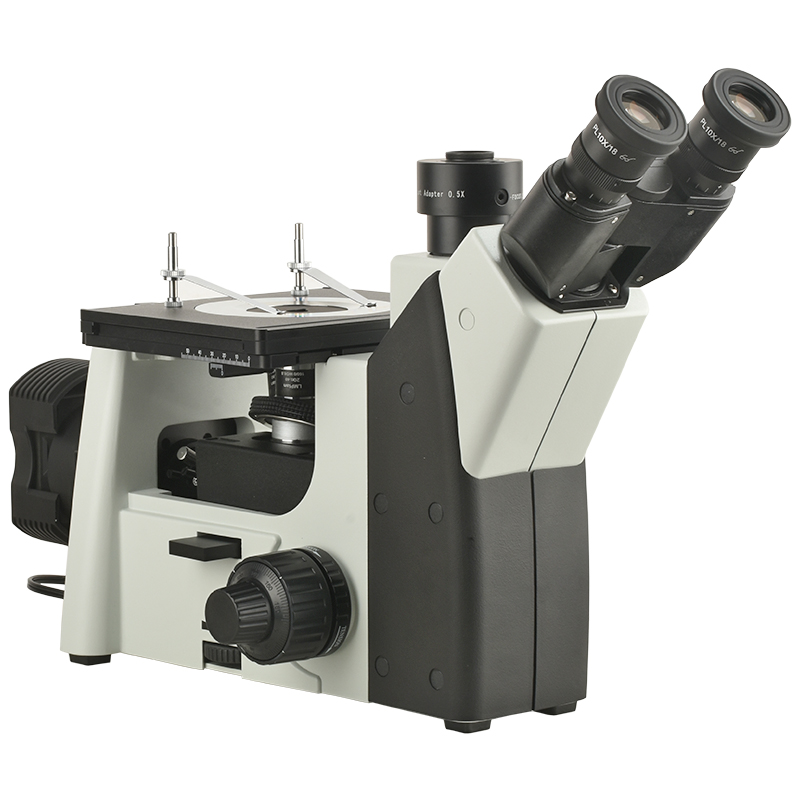

SWG-IE200M |
Optical Magnification |
50X、100X、200X、500X |
Optical System |
Finite Vision Optical System |
Eyepiece |
High Eye Point Large Field of View Flat Field Eyepiece PL10X18mm |
Objective Lens |
Long Working Distance Finite Flat Field Achromatic Metallographic Objective
|
Observation Tube |
45° Tilt,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm |
Objective Lens Converter |
Five Hole Converter |
Focusing System |
Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke 38mm,Fine Adjustment Accuracy 0.002mm |
Operating Platform |
Three layer mechanical mobile platform, metal loading platform (center hole diameter 12mm) Platform Area 180mmX155mm,Movement Range:75X40mm |
Lighting System |
Kola lighting system,with variable aperture light bar and center-adjustable field of view light bar Adaptive wide voltage 100V-240V,single 5W warm-color LED lamp, continuously adjustable light brightness; |
Trinocular Interface |
Three Eye Interface 0.5X CTV |
