Model |

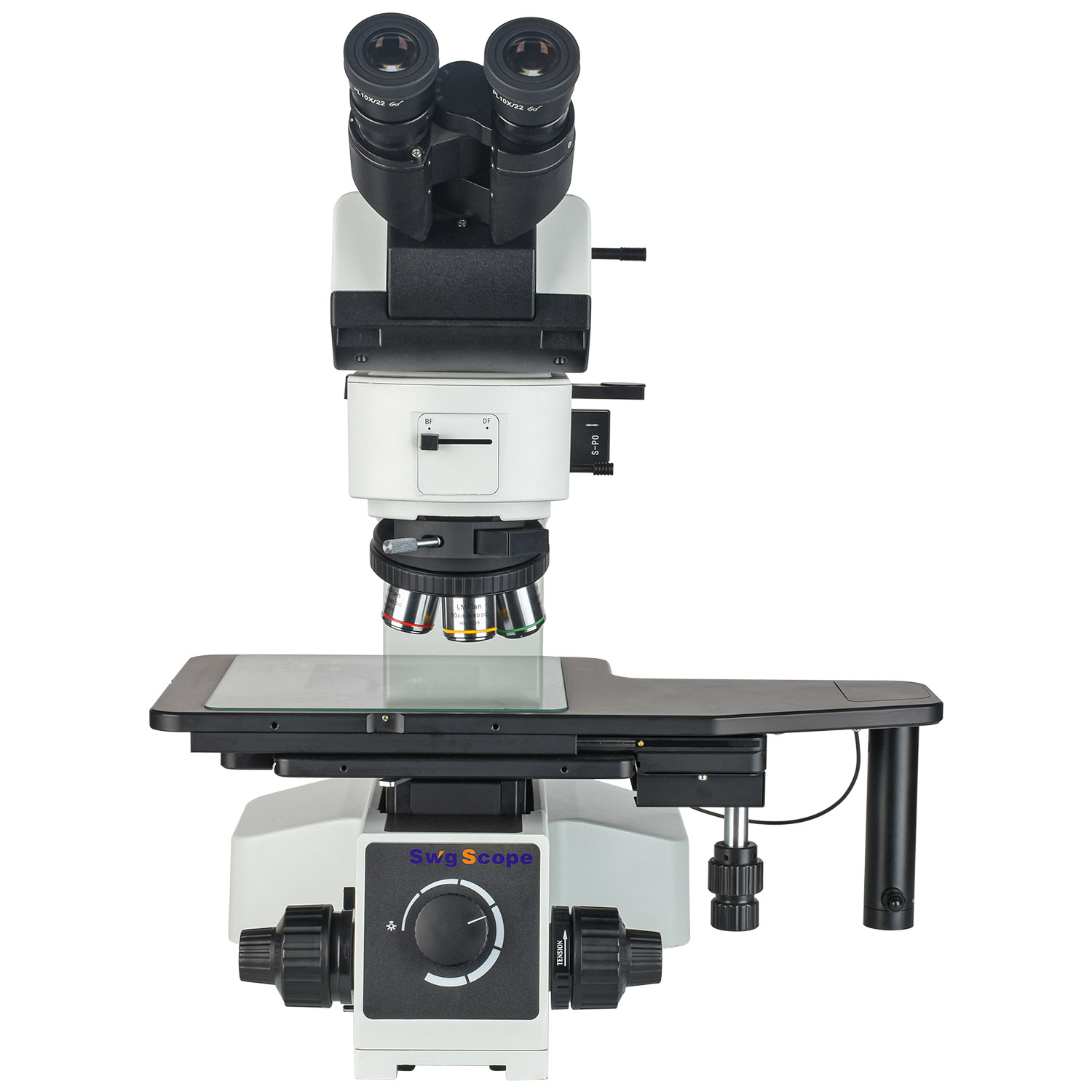

SWG-MX6RT |
Magnification |
50X,100X,200X,500X |
Optical System |
Infinity Chromatic Aberration Correction Optical System |
Eyepiece |
High Eye Point large Field of View flat Field Eyepiece PL10X22mm |
Objective Lens |
LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective
|
Observation Tube |
Adjustable 5-35° inclination angle Tthree-Way Observation Tube With Infinite Hinge, Interpupillary Distance Adjustment:50-76mm,Unilateral Diopter Adjustment:±5 Diopter, |
Converter |
Bright and Dark Field Five-Hole Converter With DIC Slot |
Coarse and Fine Focusing Mechanism |
Translucent and Reflective Frame,Front low-Hand Position Coarse and Fine Coaxial Focus Adjustment Mechanism.Coarse Adjustment Stroke 33mm,Fine Adjustment Accuracy 0.001mm.With Adjustment Elastic Device to Prevent Sliding and Random Upper limit Device |
Operating Platform |
6-Inch Three-layer Mechanical Mobile Platform,Low-Hand Position X,Y Direction Coaxial Adjustment,Platform Area 450mmX220mm,Reflected illumination Movement Range:158mmX158mm;Transmission illumination Movement Range:100X100mm,With Clutch Handle,Can Be Used For All Fast Moving Within The Range of Travel,Glass Stage Plate (For Transmission and Reflection) |
Upper Lighting System |
Built-In 100-240V Wide Voltage System,5W Warm Color LED Transmitted Light illumination System,Independent Control of Upper and Lower Light;With Filter Slot and Polarizing Device Slot; With Bright and Dark Field Switching Mechanism,Preset Center,Light Intensity Continuously Adjustable |
Under Lighting System |
Single High-Power 5W, LED White Light,Continuous Adjustable Light Intensity |
Polarizer |
Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
Trinocular Interface |
0.5X C-mount Interface,Adjustable Focus |
