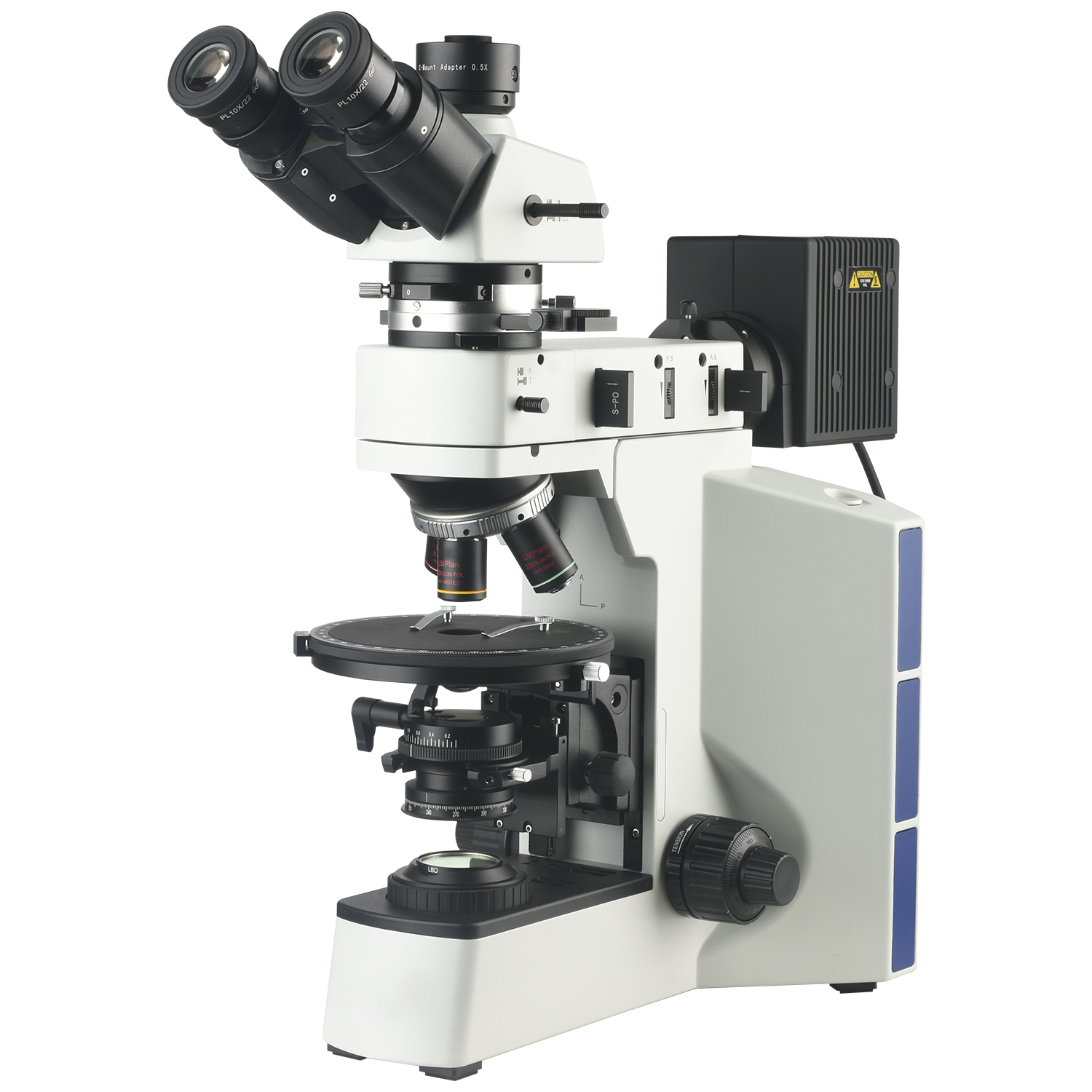

50X-500X Trinocular Polarizing Metallurgical Microscope for observing and analyzing mineral and rock crystals.

Name: 50X-500X Trinocular Polarizing Metallurgical Microscope for observing and analyzing mineral and rock crystals.
Brand: 斯威冠显微镜
SKU: SWG-PX60
Availability: InStock
Rating: 5 (1 reviews)

Model: SWG-PX60

Optical Magnification:50X,100X,200X,500X

Description

Model	SWG-PX60
Optical Magnification	50X、100X、200X、500X
Optical System	Infinity Chromatic Aberration Correction Optical System
Eyepiece	High eye Point large field of View Flat Field Eyepiece PL10X22mm,Adjustable visibility,With Micrometer
Objective Lens	Flat field infinitely long working distance stress relief objective lens LMPIan L5X/0.15 POL WD:10.8 mm LMPIan L10X/0.3 POL WD:12.2 mm LMPIan L20X/0.45 POL WD:4 mm LMPIan L50X/0.55 POL WD:7.9 mm
Observation Tube	30° Tilt,,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm
Focusing System	low-Handed Coarse and Micro-Coaxial Focusing Mechanism,Coarse Adjustment Stroke 30mm,Fine Adjustment Accuracy 0.002mm.Adjustable Tensioning Device With Anti-Slip and Random upper limit Device.
Intermediate mirror set	Built in Brewster mirror,rotary disc switching mechanism (center,focal length adjustable),with deviation detector slot Slot with Compensator
Polarizing mirror set	Insert Plate Bias Detector Group, 360° Rotation,grid value 2°,Accuracy 6 ',With Locking Mechanism
Compensator	λ plate:φ18mm, first grade red,optical path difference 551nm; λ/4 pieces:φ18mm, Optical path difference 147.3nm;Quartz wedge (Grade I-IV)
Operating Platform	Rotating Metal Working Platform,surface Graphite Spraying,anti-corrosion and wear-resistant,Diameter 160mm,360° Rotating locking Positioning,Grid value 1°,Accuracy 6 '
Objective Lens Converter	Internal Positioning 4-hole Converter With Adjustable Center
Condenser	Roll-out Achromatic Condenser (N.A0.9) with Polarizing Mirror Group,can be Rotated 360°,Adjustable scales
Upper Lighting System	Adaptive wide voltage 100V-240V_AC50/60Hz,Reflection lamp room, Halogen lamp 12V50W, preset center, reflection illuminator,with field of view diaphragm and The aperture Diaphragm comprises an LBD filter group and a plug-in polarizing mirror group
Lower Lighting System	Adaptive wide voltage 100V-240V_AC50/60Hz,Spotlight room, Imported halogen lamp 12V50W,preset center,Cora lighting,with variable field of view Diaphragm
Trinocular Interface	Three Eye Interface 0.5X CTV

50X-500X Trinocular Polarizing Metallurgical Microscope for observing and analyzing mineral and rock crystals.

Model

SWG-PX60

Optical Magnification

50X、100X、200X、500X

Optical System

Infinity Chromatic Aberration Correction Optical System

Eyepiece

High eye Point large field of View Flat Field Eyepiece PL10X22mm,Adjustable visibility,With Micrometer

Objective Lens

Flat field infinitely long working distance stress relief objective lens LMPIan L5X/0.15 POL WD:10.8 mm LMPIan L10X/0.3 POL WD:12.2 mm LMPIan L20X/0.45 POL WD:4 mm LMPIan L50X/0.55 POL WD:7.9 mm

Observation Tube

30° Tilt,,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm

Focusing System

low-Handed Coarse and Micro-Coaxial Focusing Mechanism,Coarse Adjustment Stroke 30mm,Fine Adjustment Accuracy 0.002mm.Adjustable Tensioning Device With Anti-Slip and Random upper limit Device.

Intermediate mirror set

Built in Brewster mirror,rotary disc switching mechanism (center,focal length adjustable),with deviation detector slot Slot with Compensator

Polarizing mirror set

Insert Plate Bias Detector Group, 360° Rotation,grid value 2°,Accuracy 6 ',With Locking Mechanism

Compensator

λ plate:φ18mm, first grade red,optical path difference 551nm; λ/4 pieces:φ18mm, Optical path difference 147.3nm;Quartz wedge (Grade I-IV)

Operating Platform

Rotating Metal Working Platform,surface Graphite Spraying,anti-corrosion and wear-resistant,Diameter 160mm,360° Rotating locking Positioning,Grid value 1°,Accuracy 6 '

Objective Lens Converter

Internal Positioning 4-hole Converter With Adjustable Center

Condenser

Roll-out Achromatic Condenser (N.A0.9) with Polarizing Mirror Group,can be Rotated 360°,Adjustable scales

Upper Lighting System

Adaptive wide voltage 100V-240V_AC50/60Hz,Reflection lamp room, Halogen lamp 12V50W, preset center, reflection illuminator,with field of view diaphragm and The aperture Diaphragm comprises an LBD filter group and a plug-in polarizing mirror group

Lower Lighting System

Adaptive wide voltage 100V-240V_AC50/60Hz,Spotlight room, Imported halogen lamp 12V50W,preset center,Cora lighting,with variable field of view Diaphragm

Trinocular Interface

Three Eye Interface 0.5X CTV

Flat field infinitely long working distance stress relief objective lens
LMPIan L5X/0.15 POL WD:10.8 mm
LMPIan L10X/0.3 POL WD:12.2 mm
LMPIan L20X/0.45 POL WD:4 mm
LMPIan L50X/0.55 POL WD:7.9 mm

λ plate:φ18mm, first grade red,optical path difference 551nm; λ/4 pieces:φ18mm,
Optical path difference 147.3nm;Quartz wedge (Grade I-IV)

Adaptive wide voltage 100V-240V_AC50/60Hz,Reflection lamp room,
Halogen lamp 12V50W, preset center, reflection illuminator,with field of view diaphragm and The aperture Diaphragm comprises an LBD filter group and a plug-in polarizing mirror group

Adaptive wide voltage 100V-240V_AC50/60Hz,Spotlight room,
Imported halogen lamp 12V50W,preset center,Cora lighting,with variable field of view Diaphragm
