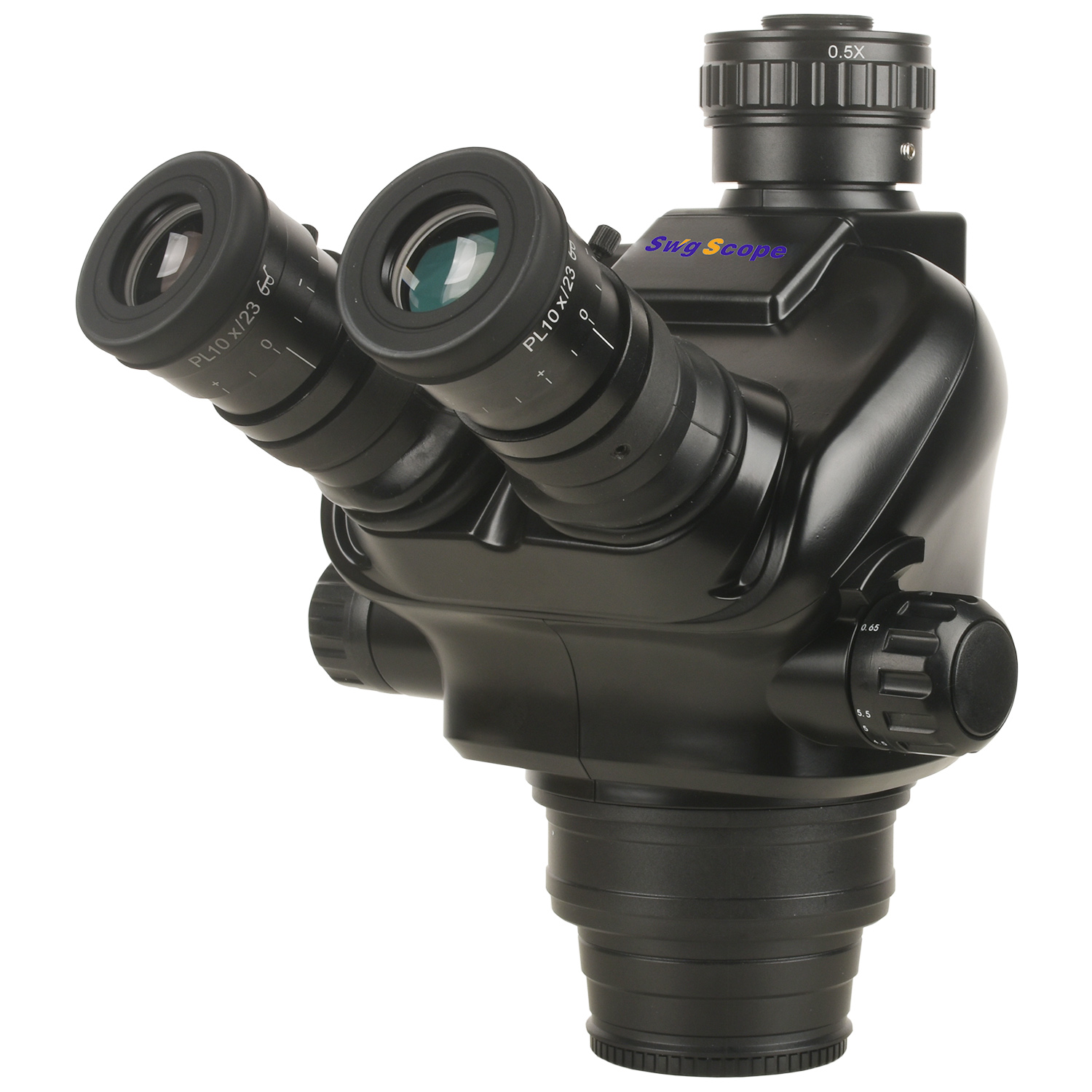

6.5X-55X Trinocular Stereo Microscope Lens Eyepiece PL10X/23mm
6.5X-55X Trinocular Stereo Microscope Lens Eyepiece PL10X/23mm

6.5X-55X Trinocular Stereo Microscope Lens Eyepiece PL10X/23mm

Model: SWG-0655H
Description
Model
KP-0655
Optical Enlargement
6.5X-55X
Eyepiece
PL10X/23mm Diopter Adjustable,High Eye Point large Field of View flat Field Eyepiece
Objective Lens
0.65X-5.5X Continuous Zoom Lens
Zoom Ratio
1:8.5
Optical System
Griino optical system
Field of View
4.18mm-35.38mm
Viewing Head
30 ° Tilting Trinocular Observation Head, Interpupillary Distance Adjustment:54mm-76mm, The body viewing angle is 12°.
Working Distance
110mm
Trinocular Interface
0.5XCTV，Adjustable Focus
