Model |

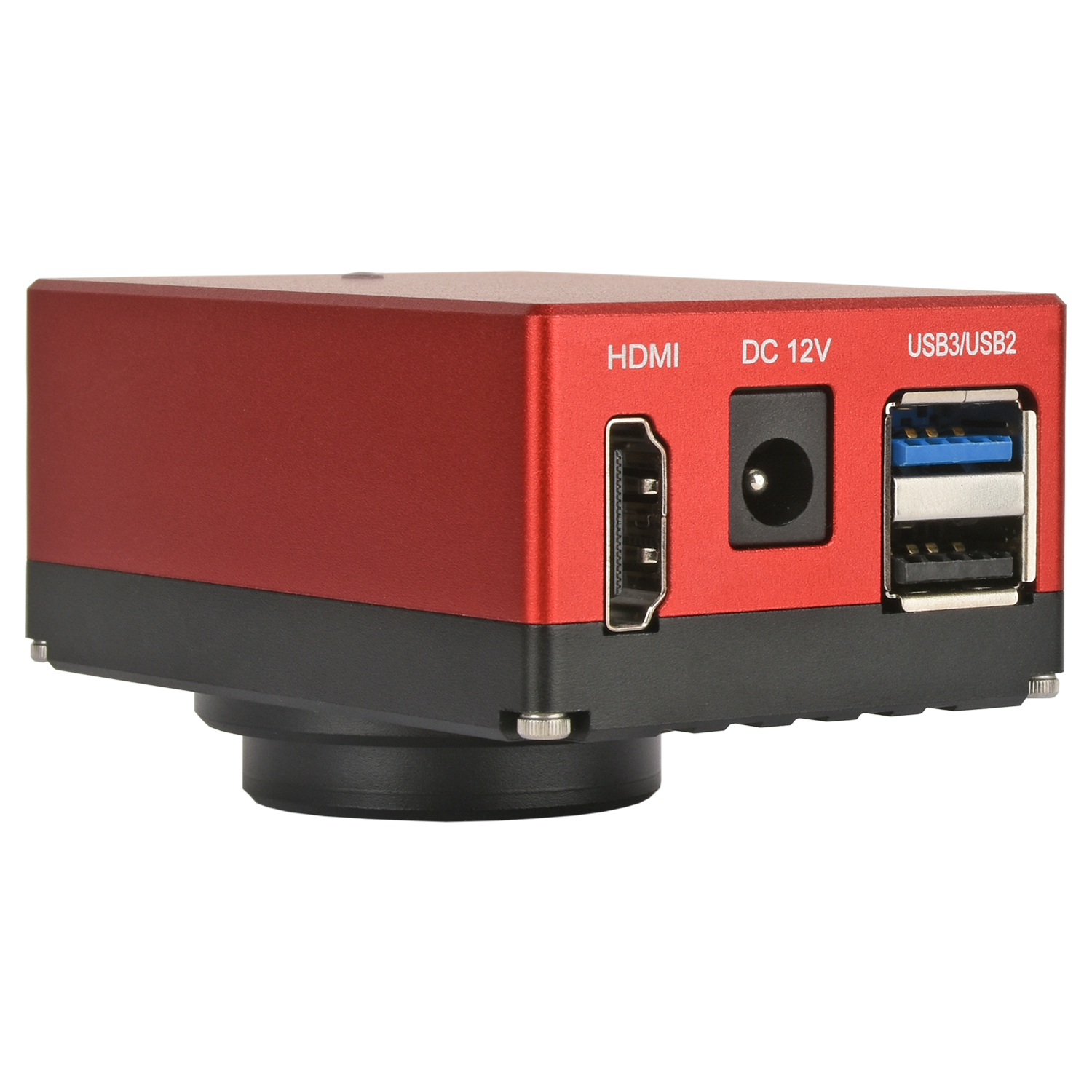

4KCH-VM |
Pixel |
8.3 Million Pixels |
Output Method |
HDMI、USB3.0 |
Sensor |
8.3M/Sony |
Sensor Size |
1/1.8＂CMOS |
Resolution Ratio |
3840X2160 |
Output Frame Rate |
60FPS |
Pixel Size |
2.0μmX2.0μm |
Photographic Resolution |
3840X2160,(Photo can be Manually and Automatically Named file Name) JPG Format |
Video Resolution |
1080P 30 Frames (1920X1080) MP4 Format |
Image Adjustment |
Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
Color Adjustment |
R、G、B |
White Balance |
Auto/Manual |
Exposure |
Auto/Manual |
Menu Operation |
Mouse Operation |
Storage Mode |
U disk.Can Take Pictures.Video,and Measure |
Reticle lines |
100 Groups Horizontal and vertical lines |
Camera Interface |
C Interface |
Power Supply |
AC100V-240V DC-12V |
USB3.0 |
By connecting to a computer via a USB3.0 interface, image stitching and depth synthesis can be achieved. |
Measuring Function |
Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |
