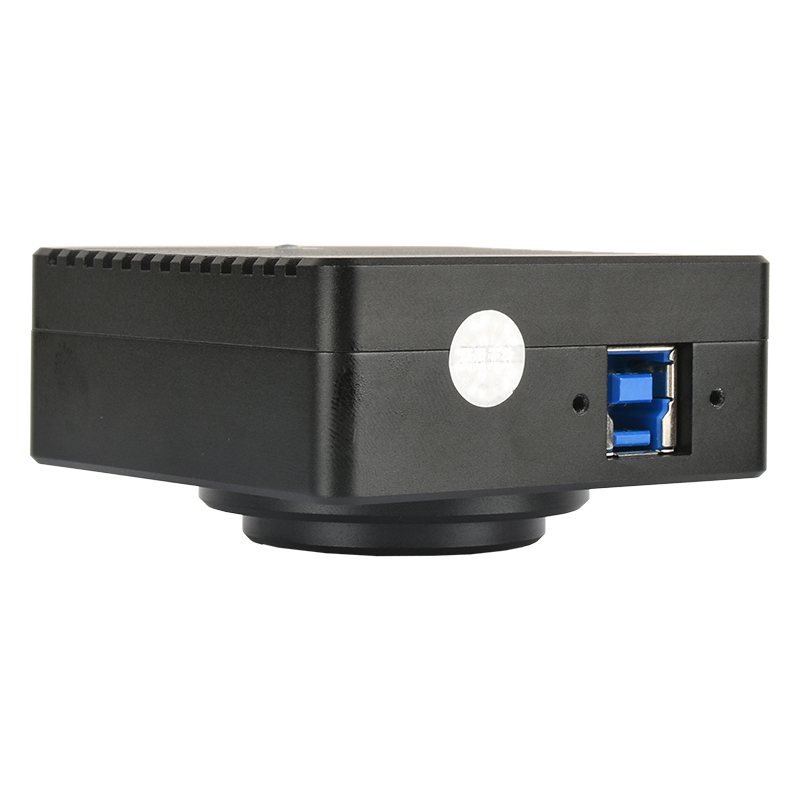

Model |
SWG-800C |
Camera Interface |
C-Mount |
Pixel |
8.3 Million Pixels |
Output Method |
USB3.0 |
Sensor |
8.3M/Sony |
Sensor Size |
1/1.8＂CMOS |
USB Resolution Ratio |
3840X2160 |
Output Frame Rate |
25FPS |
Pixel Size |
2.0μmX2.0μm |
Photographic Resolution |
3840X2160,(Photo can be Manually and Automatically Named file Name) |
Video Resolution |
1080P 20FPS (1920X1080) |
Image Adjustment |
Best brightness,Gain,Red gain,blue gain,Saturation,Contrast Clarity,anti reflection,image freezing,Horizontal flip,Vertical flip,Black and white mode. |
White Balance |
Auto/Manual |
Camera Mode |
Single Tube,Metallographic,Biological |
Reticle Lines |
100 Groups Horizontal and vertical lines |
Image Stitching |
Real time Stitching of large area samples into Complete Graphics |
Depth of Field Fusion |
Samples of different heights can be combined into a clear image, |
Power Supply |
DC-5V |
Measuring Function |
Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |
