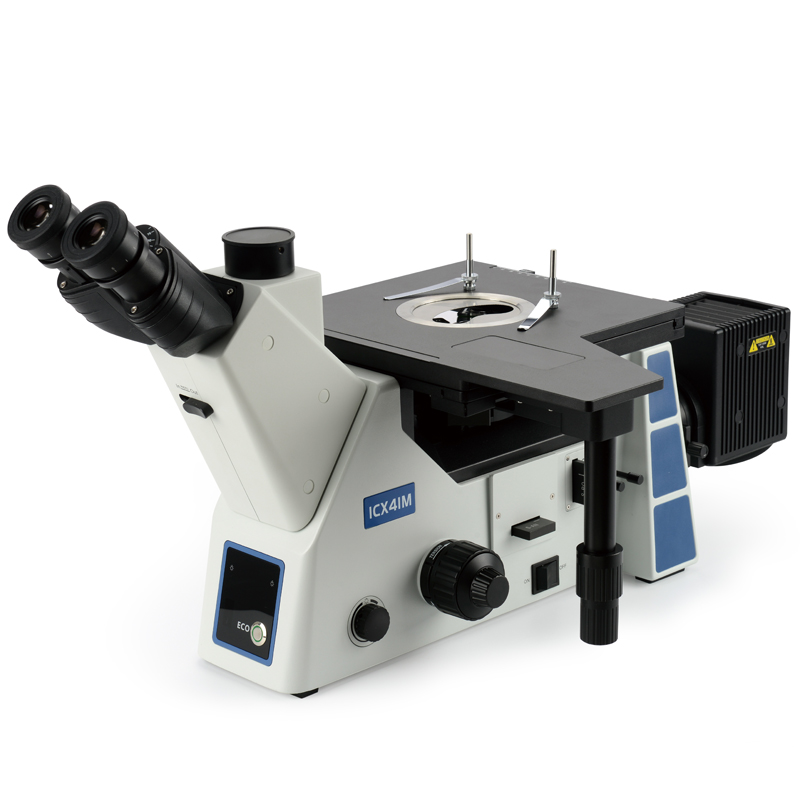

| Product model | ICX41M |
| Magnification | 50X、100X、200X、500X |
| optical system | The optical system of infinite far chromatic aberration correction |
| eyepiece | High eye point, large field of vision, flat eyepiece PL10x / 22mm, adjustable visibility |
| Objective lense | Infinite long working distance flat field bright and dark field metallographic objective lens (5x-dic, 10x-dic, 20x-dic, 50x) |
| Observation tube | Binocular viewing tube, 45 ° tilt, hinge group can rotate 360 °, fixed eyepiece tube, pupil distance adjustment range 50-75mm, two-stage light splitting ratio: binocular: binocular = 100:0 or 0:100 |
| Converter | Five hole converter with internal positioning light and dark field, with DIC slot |
| Frame | Reflecting bright and dark field gold camera frame adopts low hand position coarse fine-tuning coaxial, coarse-tuning stroke is 9mm, focal face is 6.5mm up, 2.5mm down, fine-tuning accuracy is 0.002mm, with elastic adjustment handwheel to prevent sliding |
| Loading stage | Three layer mechanical mobile platform, platform size: 240 (W) × 250 (L), mobile range: 50 × 50mm, two-way line rail drive, right hand low hand control |
| Lighting | Bright and dark field reflective illuminator, with variable field diaphragm, aperture diaphragm, adjustable center; with bright and dark field switching device, with filter slot and polarizing device slot; 12v100w halogen light box (predetermined center), continuous adjustable light source brightness, with light source brightness indicator bar, with red external sensing function; external wide voltage transformer, input 100-240V, output 12v5a |
| Polarizing device | Polarizing mirror insert plate, 360 ° rotating polarizing mirror insert plate |
| Camera accessories | 0.5x camera receiver, C-type interface, adjustable focus |
1. 2x eyepiece PL10x
2. 1x microscope mainframe bracket
3. 1x objective lens 5x
4. 1x objective lens 10x
5. 1x objective lens 20x
6. 1x objective lens 50x
7. 1x three lens
8. 1x power cord
