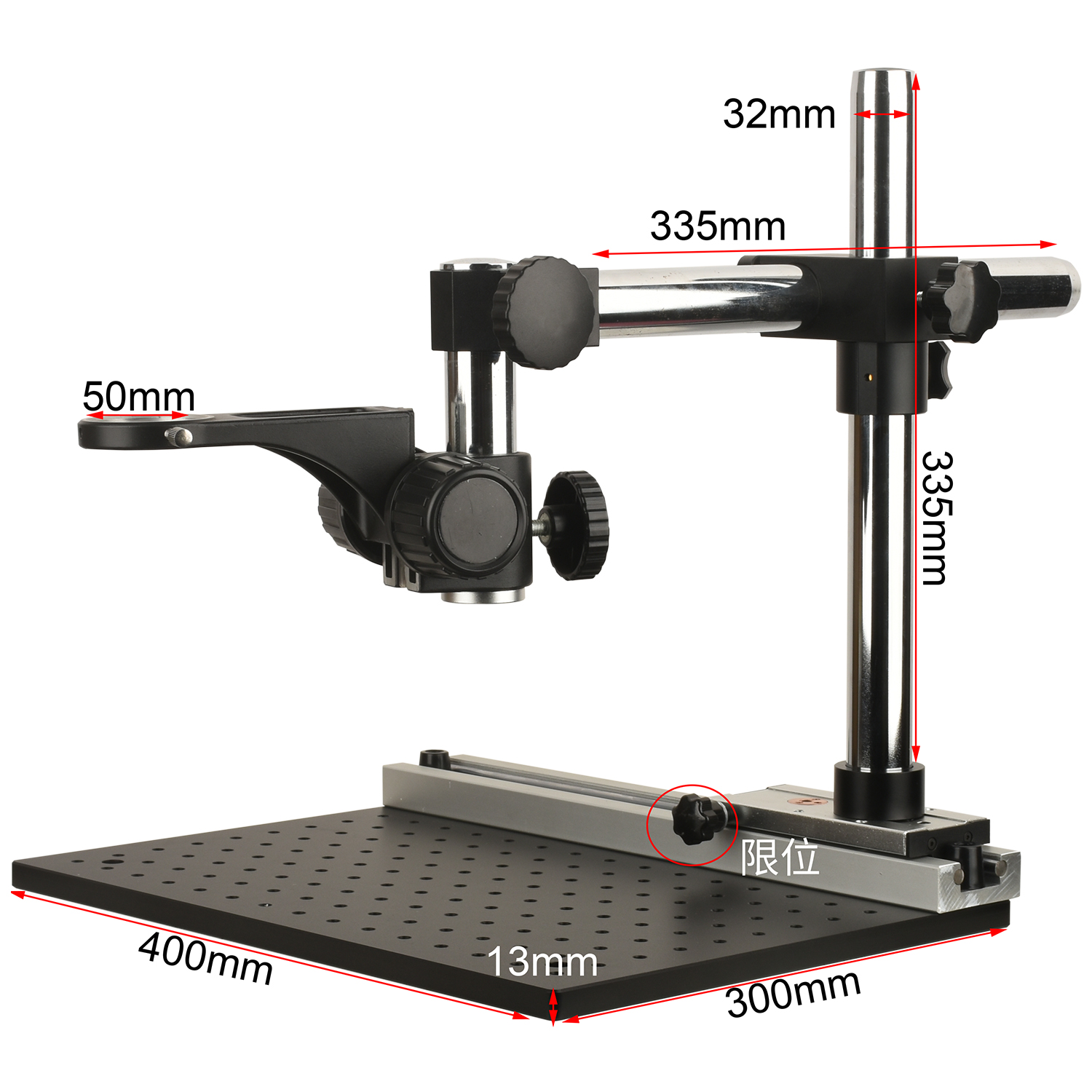

Name: Microscope optical platform universal bracket,Lens Frame 50mm,Slider travel:230mm
Brand: 斯威冠显微镜
SKU: SWG-H3250L
Availability: InStock
Rating: 5 (1 reviews)

Model: SWG-H3250L

Horizontal Pole:Horizontal bar length 335mm,movement range 285mm
Column Height:Column height 335mm,diameter 32mm
Slider:4-wheel slider,lockable,travel 230mm

Description

Model	SWG-H3250L
Horizontal Pole	Horizontal bar length 335mm,movement range 285mm
Column Height	Column height 335mm,diameter 32mm
Slider	4-wheel slider,lockable,travel 230mm
Focusing Bracke	Focusing frame lens frame diameter 50mm,column hole 32mm,center distance 150mm,stroke 50mm
Guide Rail	Guide rail length 400x60x20mm, fixed with M6 screws
Base Size	300X400X13mm,Hole spacing 25X25mm,M6

1182578236

微信客服

Microscope optical platform universal bracket,Lens Frame 50mm,Slider travel:230mm

Model

SWG-H3250L

Horizontal Pole

Horizontal bar length 335mm,movement range 285mm

Column Height

Column height 335mm,diameter 32mm

Slider

4-wheel slider,lockable,travel 230mm

Focusing Bracke

Focusing frame lens frame diameter 50mm,column hole 32mm,center distance 150mm,stroke 50mm

Guide Rail

Guide rail length 400x60x20mm, fixed with M6 screws

Base Size

300X400X13mm,Hole spacing 25X25mm,M6
