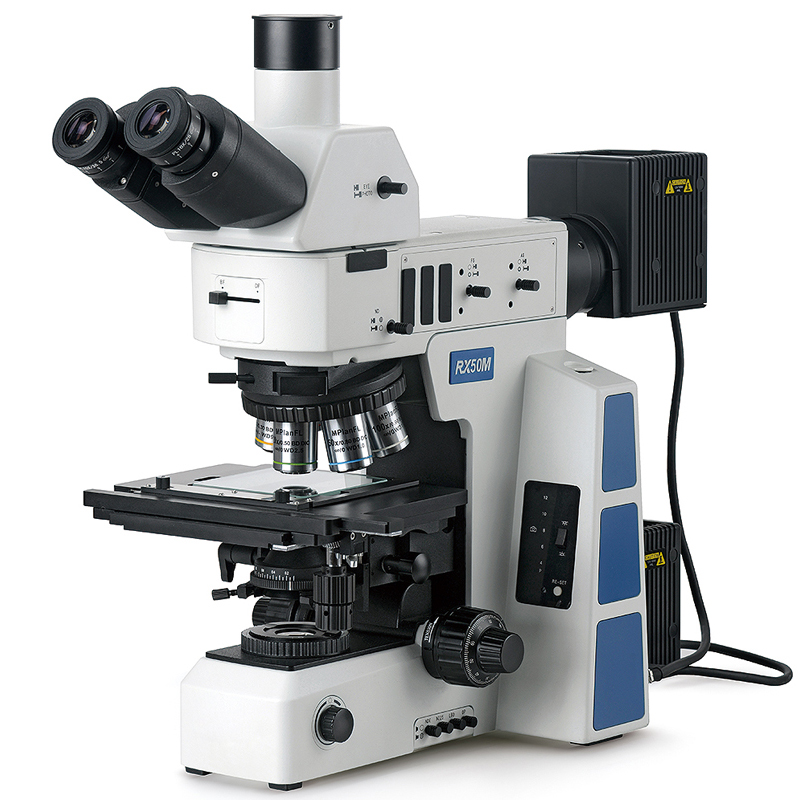

| Product model | RX50M |
| Magnification | 50X,100X,200X,500X |
| optical system | Optical system for correction of chromatic aberration at infinity (half apochromatic aberration) |
| eyepiece | High eye point large field of view flat eyepiece PL10x / 25mm, adjustable visibility |
| Objective lense | Semi achromatic metallographic objective in bright and dark field (5x, 10x, 20x, 50x) |
| Observation tube | 30 ° tilt, positive image, infinite hinge type three eye observation tube, pupil distance adjustment: 50mm-76mm, two-stage split ratio: 100:0 or 0:100 |
| Converter | Light dark field six hole converter with DIC slot |
| focusing system | It is equipped with adjustable elastic device to prevent sliding and random upper limit device, built-in 100-240V wide voltage system, dual power output, digital dimming, light intensity setting and reset function, reflection and transmission light switch, built-in transmission filter LBD, ND6 and nd25 |
| Loading stage | Right hand 4-inch mechanical platform, stroke 102mm × 105mm, with Y-axis locking mechanism, with light barrier, with glass carrier plate |
| Reflected lighting system | Bright and dark field reflection illuminator, with variable aperture diaphragm, field diaphragm, adjustable center, with bright and dark field lighting switching device, with filter slot and polarizing device slot |
| Lamp room | 12v100w halogen lamp room, for reflection, reserved Center |
| Transmission lighting system | 12v100w halogen lamp room, for transmission, reserved Center |
| Condenser | Swing out achromatic condenser n.a.0.9, variable aperture diaphragm, center adjustable |
| Polarizing device | Polarizing mirror insert plate, 360 ° rotating polarizing mirror insert plate |
| Camera accessories | 0.5x camera receiver, C-type interface, adjustable focus |
1. 2x eyepiece PL10x
2. 1x microscope mainframe bracket
3. 1x objective lens 5x
4. 1x objective lens 10x
5. 1x objective lens 20x
6. 1x objective lens 50x
7. 1x three lens
8. 1x power cord
