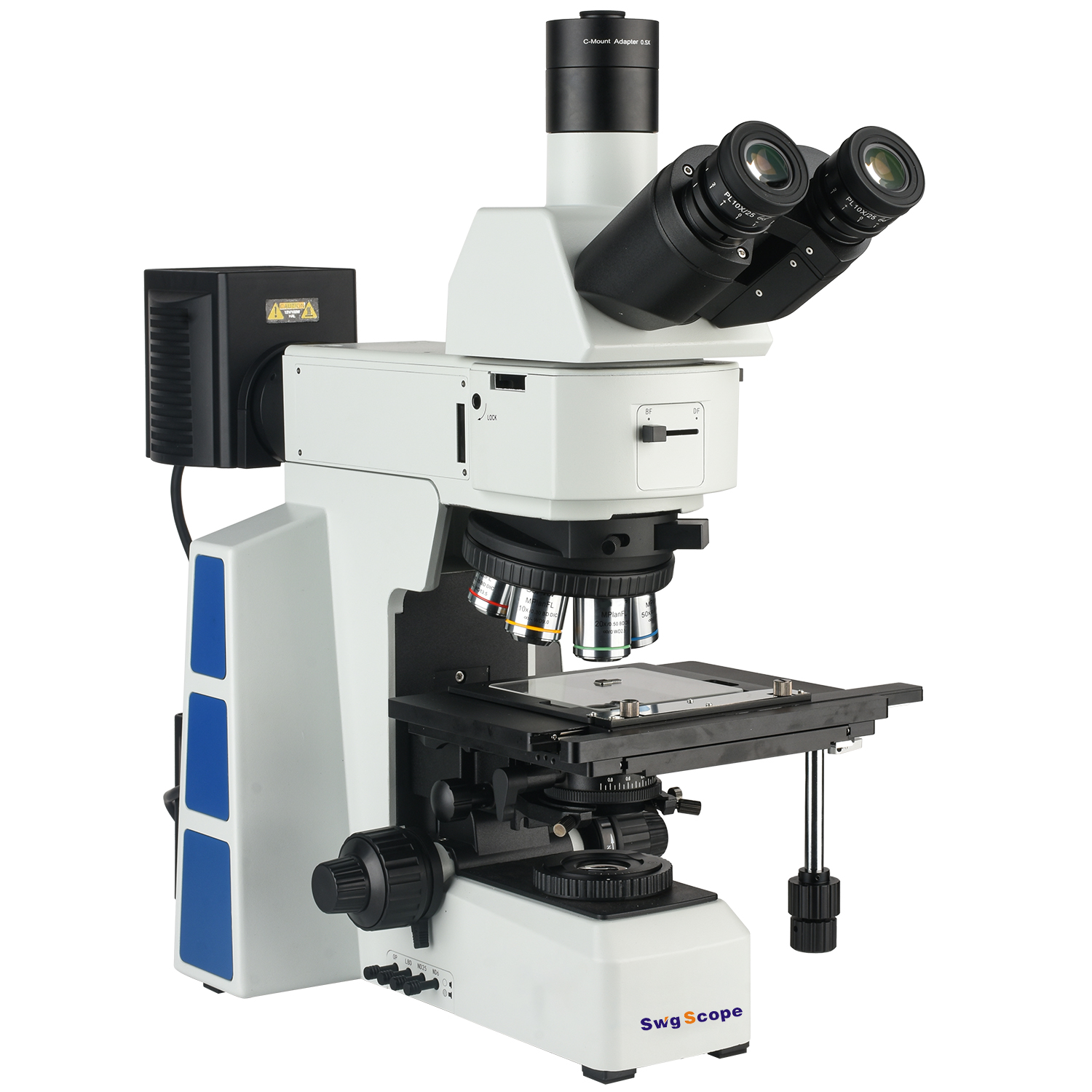

RX50M 50X-500X Trinocular Metallurgical Microscope

Name: RX50M 50X-500X Trinocular Metallurgical Microscope
Brand: 斯威冠显微镜
SKU: SWG-RX50M
Availability: InStock
Rating: 5 (1 reviews)

Model: SWG-RX50M

Description

Model	SWG-RX50M
Optical Magnification	50X-500X
Optical System	Infinite Achromatic Correction Optical Aystem (Semi Apochromatic)
Eyepiece	High Eye Point Large Field of View Flat Field Eyepiece PL10X25mm
Objective Lens	Bright and Dark Field Semi Vanishing Achromatic Objective MPlanFL 5X/0.15 BD DIC WD 13.5mm,NA=0.15 MPlanFL 10X/0.3 BD DIC WD 9mm,NA=0.30 MPlanFL 20X/0.5BD DIC WD 2.5mm,NA=0.50 MPlanFL 50X/0.8 BD DIC WD 1.0mm,NA=0.80
Observation Tube	30° Tilt,Positive Image,Infinitely Hinged Three-eye Viewing Cylinder,Pupil Distance Adjustment:50mm-76mm
Objective Lens Converter	Bright and Dark Field Five-Hole Converter With DIC Slot
Focusing System	Transparent and Reflective Dual Purpose Frame,Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke of 28mm,Fine Adjustment Accuracy of 0.001 mm. It is Equipped With an Adjusting Elastic Device and a Random upper Limit Device to Prevent Sliding.
Operating Platform	Right-hand 4-Inch Mechanical Platform,Stroke 102mmX105mm,With Y-axis Locking Mechanism,With Light Barrier,With Glass Stage Plate
Lighting System	Built-in 100-240V Wide Voltage System,Dual Power Output,Using Digital Dimming; With Light Intensity Setting and Reset Function,Reflection,Transmission Light Switch; Built-in Transmission Filter LBD, ND6, ND25 Light and Dark Field Reflector, With Variable Aperture Aperture,Field of View Aperture,Center Adjustable; With Light and Dark Field Lighting Switching Device;With a Color Filter Slot and a Polarizing Device Slot; Transreflection Lighting System,12V100W Halogen lamp Room;
Condenser	Achromatic Condenser N.A.0.9,Variable aperture diaphragm,Center Adjustable
Polarizer	Polarizer Insert Plate,360°Rotating Analyzer Insert Plate
Trinocular Interface	0.5X C-mount Interface

RX50M 50X-500X Trinocular Metallurgical Microscope

Model

SWG-RX50M

Optical Magnification

50X-500X

Optical System

Infinite Achromatic Correction Optical Aystem (Semi Apochromatic)

Eyepiece

High Eye Point Large Field of View Flat Field Eyepiece PL10X25mm

Objective Lens

Bright and Dark Field Semi Vanishing Achromatic Objective MPlanFL 5X/0.15 BD DIC WD 13.5mm,NA=0.15 MPlanFL 10X/0.3 BD DIC WD 9mm,NA=0.30 MPlanFL 20X/0.5BD DIC WD 2.5mm,NA=0.50 MPlanFL 50X/0.8 BD DIC WD 1.0mm,NA=0.80

Observation Tube

30° Tilt,Positive Image,Infinitely Hinged Three-eye Viewing Cylinder,Pupil Distance Adjustment:50mm-76mm

Objective Lens Converter

Bright and Dark Field Five-Hole Converter With DIC Slot

Focusing System

Transparent and Reflective Dual Purpose Frame,Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke of 28mm,Fine Adjustment Accuracy of 0.001 mm. It is Equipped With an Adjusting Elastic Device and a Random upper Limit Device to Prevent Sliding.

Operating Platform

Right-hand 4-Inch Mechanical Platform,Stroke 102mmX105mm,With Y-axis Locking Mechanism,With Light Barrier,With Glass Stage Plate

Lighting System

Condenser

Achromatic Condenser N.A.0.9,Variable aperture diaphragm,Center Adjustable

Polarizer

Polarizer Insert Plate,360°Rotating Analyzer Insert Plate

Trinocular Interface

0.5X C-mount Interface

Bright and Dark Field Semi Vanishing Achromatic Objective
MPlanFL 5X/0.15 BD DIC WD 13.5mm,NA=0.15
MPlanFL 10X/0.3 BD DIC WD 9mm,NA=0.30
MPlanFL 20X/0.5BD DIC WD 2.5mm,NA=0.50
MPlanFL 50X/0.8 BD DIC WD 1.0mm,NA=0.80

Transparent and Reflective Dual Purpose Frame,Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke of 28mm,Fine Adjustment Accuracy of 0.001 mm.
It is Equipped With an Adjusting Elastic Device and a Random upper Limit Device to Prevent Sliding.
