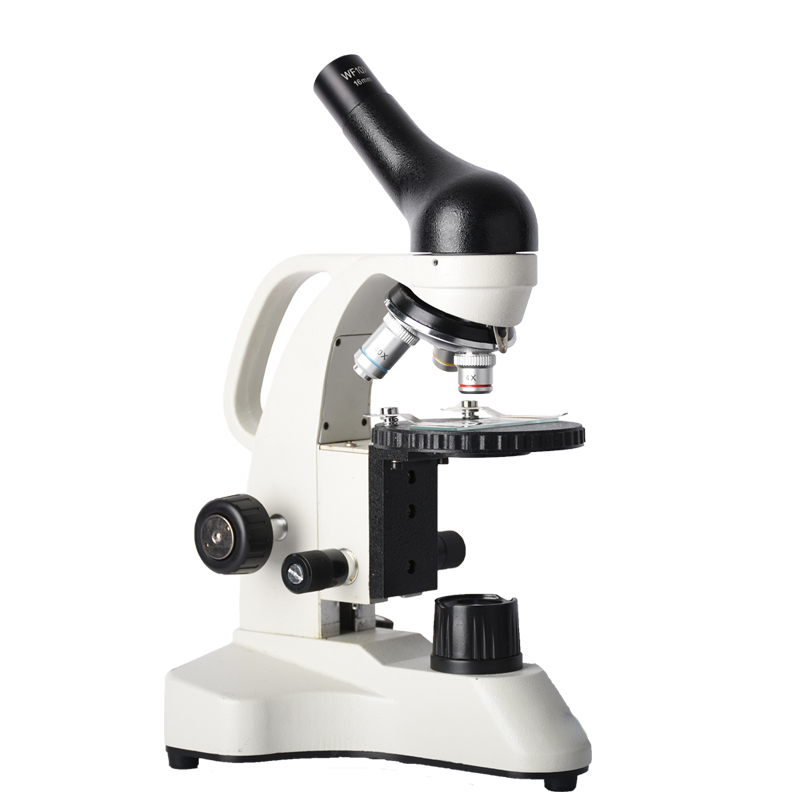

SWG-2600 40x-640x single eye student biomicroscope

Model: SWG-2600
Magnification: 40x-640x
Viewing tube: monocular, 45 ° inclined, 360 ° rotating
Eyepiece: wide angle wf10x / 16mm, wide angle wf16x
Objective lens: achromatic objective lens 4x, 10x, 40x (bullet)
Converter: three hole tilt in
Description Packing list

SWG-W2600 monocular student biological microscope is very suitable for primary and secondary schools,teaching and laboratories to do biological sectioning,pathological sectioning,bacteriological section and other teaching research.The instrument is small and exquisite,easy to carry,suitable for classrooms,outdoor The family does observational learning.

Optical enlargement 40X-640X
Observation tube monocular, 45° tilt, 360° rotation
Eyepiece WF10X/16mm,huygens16X
Objective lens Achromatic lens, 10 x, 4 x 40 x (spring)
Converter Three holes conversion
Operating platform movable circular platform, slice clamp size Φ90mm,peripheral movement range 6mm
Focusing mechanism Coarse micro coaxial, to 10 mm thick, fine-tuning of 1.8 mm
condenser frosted glass
Light source LED cold light source, high brightness, rechargeable, adjustable brightness
Power External regulated power adapter, DC5V/2A
packaging Bubble + carton

Remarks:This product has a built-in lithium battery that can be used for charging.

1、1X eyepiece WF10X/16
2、1X Huygens eyepiece WF16X
3、1X objective lens 4X
4、1X objective lens 10X
5、1X objective 40X
6、1X microscope body
7、1X power adapter
