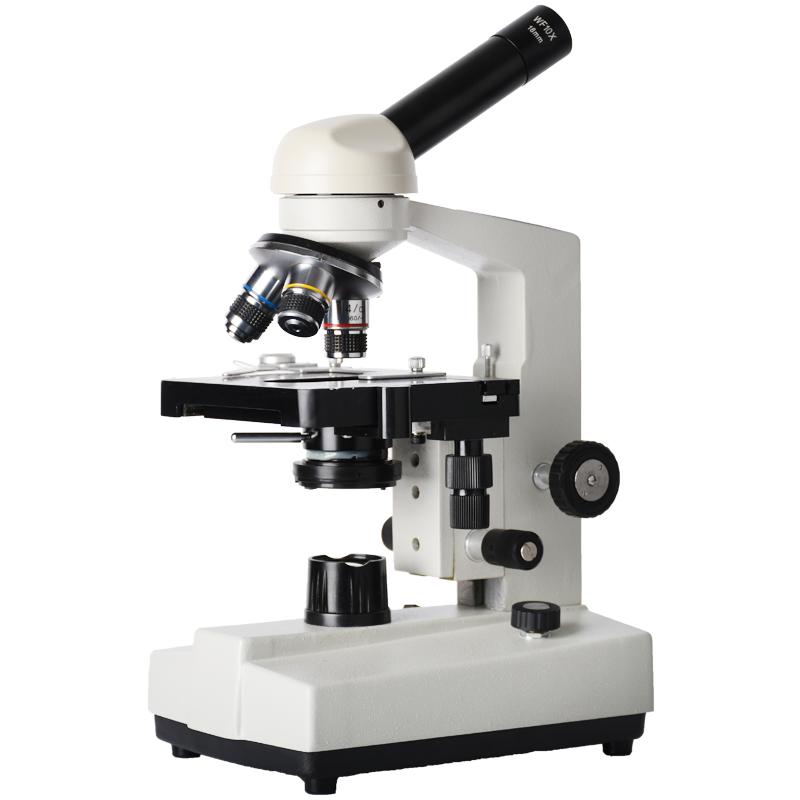

SWG-2600B 40x-1600x monocular biomicroscope

Model: SWG-2600B
Optical enlargement:40X-1600X
Observation tube:Monocular,tilted 45 degrees,360 degrees of rotation
Eyepiece:WF10X/18mm,WF16X
Objective lens:Achromatic lens,4X,10 x, 40 x (spring),100x(The oil mirror)
Description Packing list
SWG-W2600 monocular student biological microscope is very suitable for primary and secondary schools,teaching and laboratories to do biological sectioning,pathological sectioning,bacteriological section and other teaching research.The instrument is small and exquisite,easy to carry,suitable for classrooms,outdoor The family does observational learning.
Optical enlargement 40X-1600X
Observation tube Monocular,tilted 45 degrees,360 degrees of rotation
Eyepiece WF10X/18mm,huygens16X/11mm
Objective lens Achromatic lens,4X,10 x, 40 x (spring),100x(The oil mirror)
Converter Three holes conversion

Loading stage

Double mechanical mobile platform,size 115mm×125mm,Moving range 74mm×30mm
Focusing mechanism Coarse micro coaxial,coarse 20mm,fine-tuning of 1.3mm
Condenser Abbe concentrator,N.A.=1.25,with variable aperture
Light source LED cold light source,high brightness,rechargeable,adjustable brightness
Power External regulated power adapter,DC5V/2A

Remarks:This product has a built-in lithium battery that can be used for charging

1、1X eyepiece WF10X/16
2、1X Huygens eyepiece WF16X
3、1X objective lens 4X
4、1X objective lens 10X
5、1X objective 40X
6、1X objective 100x(The oil mirror)
7、1X microscope body
8、1X power adapter
