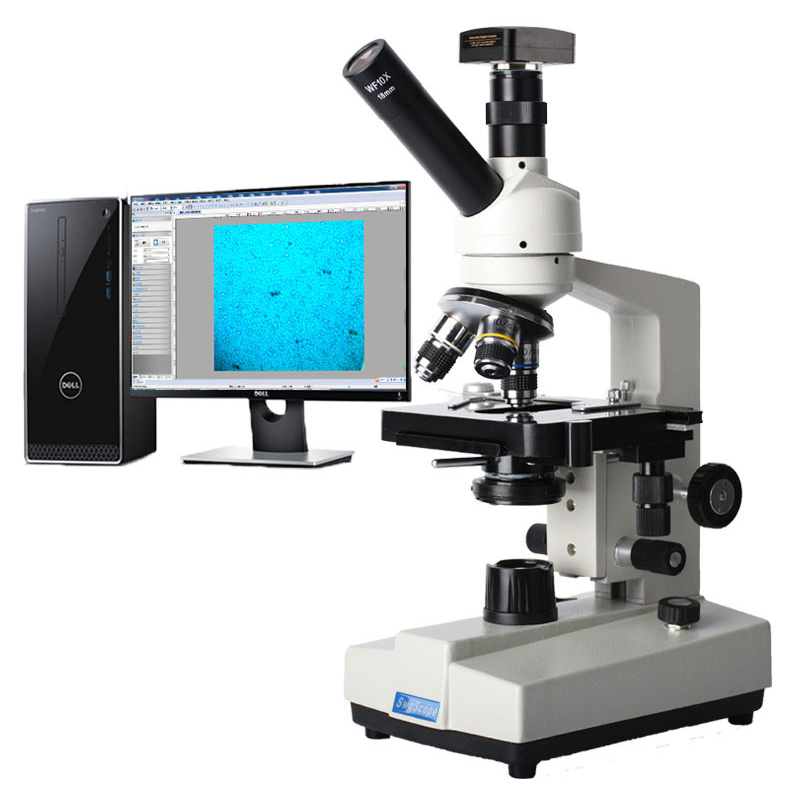

SWG-2600C-500 single eye TV biomicroscope 40x-1600x

Model: SWG-2600C-500
Resolution: 2592x19445 megapixel USB2.0
Optical amplification: 40x-1600x
Viewing tube: monocular TV can be connected to camera, with 45 degree tilt and 360 degree rotation
Eyepiece: wf10x / 18mm, wf16x
Objective lens: achromatic objective lens 4x,
Description Packing list
Product model SWG-2600C-500
Optical amplification 40X-1600X
Observation tube Single eye TV with 45 degree tilt and 360 degree rotation
eyepiece WF10X/18mm,WF16X
Objective lense Achromatic objective, 10x, 40x (spring), 100x (oil mirror)
converter Four hole conversion
Loading stage Double mechanical moving platform, size 115mmx125mm, moving range 74mmx30mm
focusing system Coarse micro coaxial, coarse 20mm, 1.3mm fine adjustment
Concentrator Abbe concentrator, N.A. = 1.25, with variable aperture
light source LED cold light source, high brightness, adjustable brightness
power External power adapter, DC5V / 2A
Packing Foam + carton
sensor 5.0M/Aptina(C)
Sensor size 1/2.5“ (5.70x4.28)
Resolution 2592x19445 megapixel USB2.0
Pixel size 2.2μmx2.2μm
Frame rate 2@2592x1944,3@2048x1536,5@1600x1200,7.5@1280x1024
exposure 0.294ms~2000ms
white balance ROI white balance / manual temp tint adjustment
Capture / control API Native C / C + +, C, DirectShow, Twain, LabVIEW
Shooting mode Images and videos
Cooling system natural
operating system Microsoft Windows XP/Vista/7/8/10(32 & 64 bit)OS X (Mac OS X), Linux
working temperature 10 degrees C~50 degrees C
Advanced software for windows:
-Provide splicing, EDF, video recording and measurement functions
-Measure length, angle, radian, area, etc.
-Provide your computer screen with the same field of vision as the microscope eyepiece
-Save still images in BMP, tiff, JPG, pict, PTL or other formats
-Edit and process microscope images in a Photoshop like way
-Real time video and still image capture can be set at different resolutions at the same time
More functions: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, direction; change resolution, histogram, graining, diffusion; transform image through edge detection, digital image deformation; measure single, parallel or vertical lines as well as rectangular, elliptical and irregular areas; add notes using customizable text with different sizes and colors, Measure, text, arrow, label, etc.; measure micrometer, millimeter, centimeter, inch, foot, etc. with required tolerance under any magnification.

1. 1X eyepiece wf10x / 18

2. 1X eyepiece wf16x

3. 1X objective lens 4x

4. 1X objective lens 10x

5. 1X objective lens 40x

6. 1X objective lens 100X

7. 1X microscope body

8. 1X power adapter

9. 1x5 megapixel camera

10. 1xusb data cable

11. 1xcd disc
