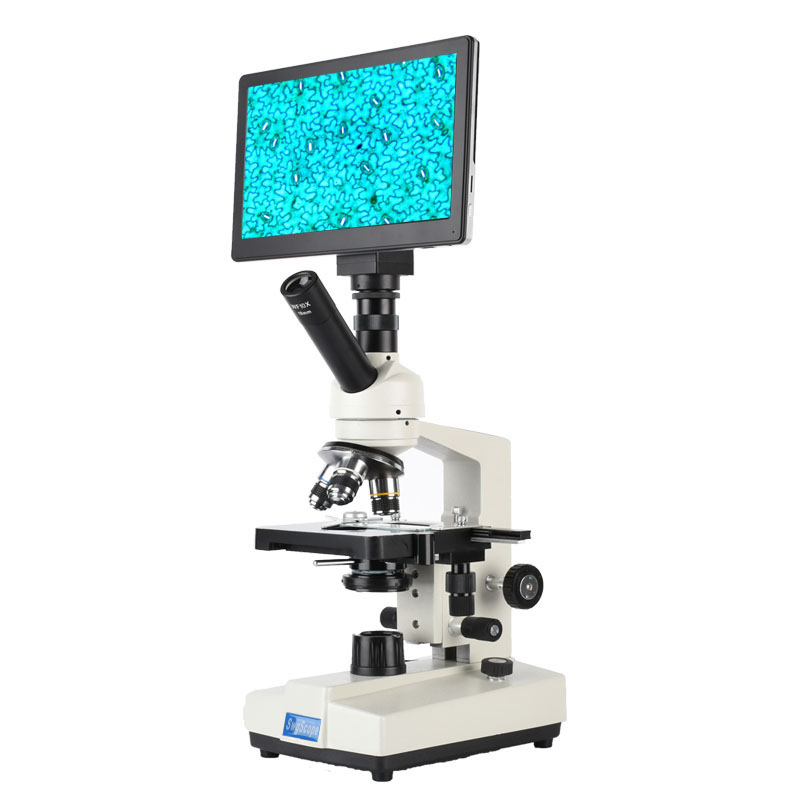

SWG-2600H single eye TV electron biological microscope 40x-1600x

Model: SWG-2600H
Resolution: 1920x1082 million pixels 9-inch HDMI integrated,
Support HDMI, USB with output
Optical amplification: 40x-1600x
Eyepiece: wf10x / 18mm, wf16x
Objective lens: achromatic objective lens 4x, 10x, 40x (spring), 100x (oil lens)
Description Packing list
Product model SWG-2600H
Optical amplification 40X-1600X
Observation tube Monocular TV (microscope camera can be connected), 45 degree tilt, 360 degree rotation
eyepiece WF10X/18mm,WF16X
Objective lense Achromatic lens, 4x, 10x, 40x (spring), 100x (oil mirror)
Converter Four hole conversion
Loading stage Double mechanical moving platform, size 115mm × 125mm, moving range 74mm × 30mm
focusing system Coarse micro coaxial, coarse 20mm, 1.3mm fine adjustment
Concentrator Abbe concentrator, N.A. = 1.25, with variable aperture
light source LED cold light source, high brightness, adjustable brightness
power External power adapter, DC5V / 2A
Packing Foam + carton
Output interface HDMI, USB
sensor Sensor 1 / 3 inch
LCD 9 inches
Image resolution 1920 x 1080
Video recorder 1920 × 1080 @ 30fps
pixel 2 million pixels
Pixel size 2.75μm×1.75μm
Frame rate 30fps
Digital amplification 5x digital zoom
Brightness control Auto / manual
white balance In manual operation, automatic
colour R / g / b adjustable
Picture freeze Support
OSD Support
Tracking cross Multi color and adjustable size
Horizontal and vertical lines Support multi-color, 4 horizontal lines / vertical lines, movable
TF card interface Up to 16g
Camera lens C
USB interface USB2.0
Power Supply DC-12V/ 1A
Note: This product has built-in lithium battery, which can be used for charging.

1. 1X eyepiece wf10x / 18

2. 1X eyepiece wf16x

3. 1X objective lens 4x

4. 1X objective lens 10x

5. 1X objective lens 40x

6. 1X objective lens 100X

7. 1X microscope body

8. 1X power adapter

9. 1x9 inch display microscope camera
10. 1xusb data cable

11. 1X camera power adapter

12. 1X mouse
