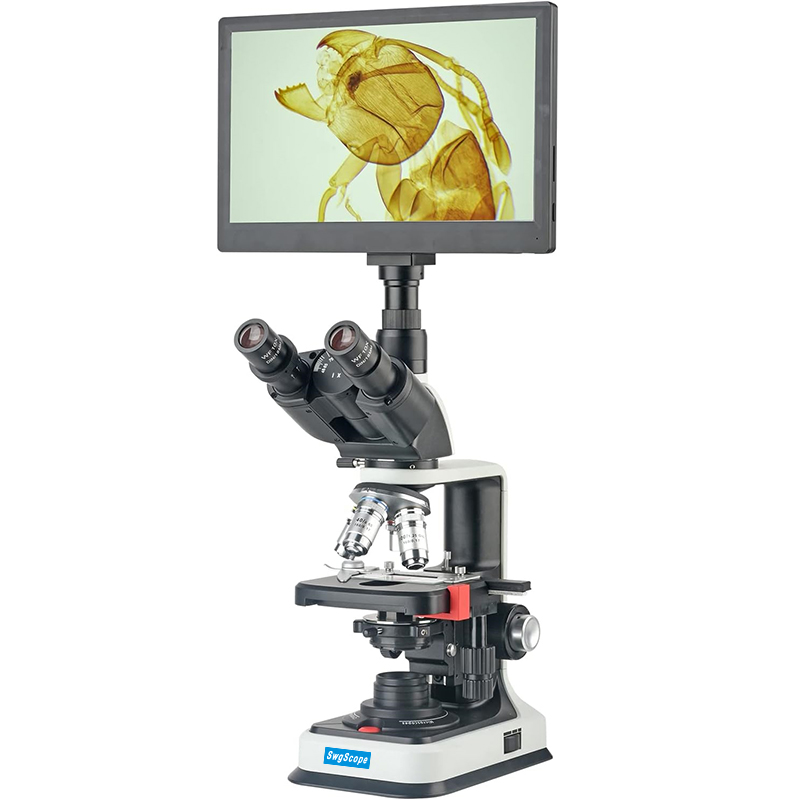

| Product model | SWG-2600T-09S |
| Optical magnification | 40X-2500X |
| Electron amplification | 142X-3540X |
| Observation tube | Three-eye hinge, tilt 30 degrees, rotate 360 degrees, pupil distance adjustment 48-75mm |
| eyepiece | Wide-angle eyepieces WF10X/DIN18mm, WF25X/8mm |
| Objective lens | Flat field achromatic objective 4X,10X,40X,100X (oil lens) |
| convertor | Four-hole conversion |
| platform | Double-layer mechanical mobile platform, area :125mm×115mm, moving range :76mm×52mm |
| Focusing mechanism | Low hand position coarse and micro coaxial focusing mechanism, coarse adjustment stroke 20mm, fine tuning accuracy 0.002mm |
| condenser | Abbe condenser,NA = 1.25, variable aperture |
| illuminant | LED cold light source 1W |
| power | External regulated power adapter, 100V-240V_AC50/60Hz |
| Three-mesh interface | 1X triocular interface (25mm camera and 23.2 eyepiece) |
| package | Foam + carton |
| pixel | 2-megapixel 9-inch integrated display |
| Output mode | USB |
| sensor | 2M/Sony 291 |
| Sensor size | 1/2.8" |
| Resolution frame rate | HDMI output resolution 1920X080 60 frames, USB output resolution 1920X1080 30 frames |
| Pixel size | 2.9 mu mx2.9 microns |
| Exposure time | 0-33MS |
| White balance | Automatic white balance/one-click white balance |
| Image adjustment | Contrast, saturation, gamma, noise reduction, sharpness, RGB, color temperature |
| Camera function | Take photos, video, Preview, zoom in, zoom out, Mirror, black and white, freeze, cross marks |
| Image comparison | Support two screen, four screen comparison |
| Shooting mode | Images and videos |
| Measuring function | Supports drawing points, straight lines, parallel lines, vertical lines, polygons, Angle measurement, drawing circles |
| USB function | This product is mainly displayed through the 9-inch screen, USB interface can be connected to the mouse, also can be connected to the computer through the USB cable, connected to the computer we provide professional image software. |
