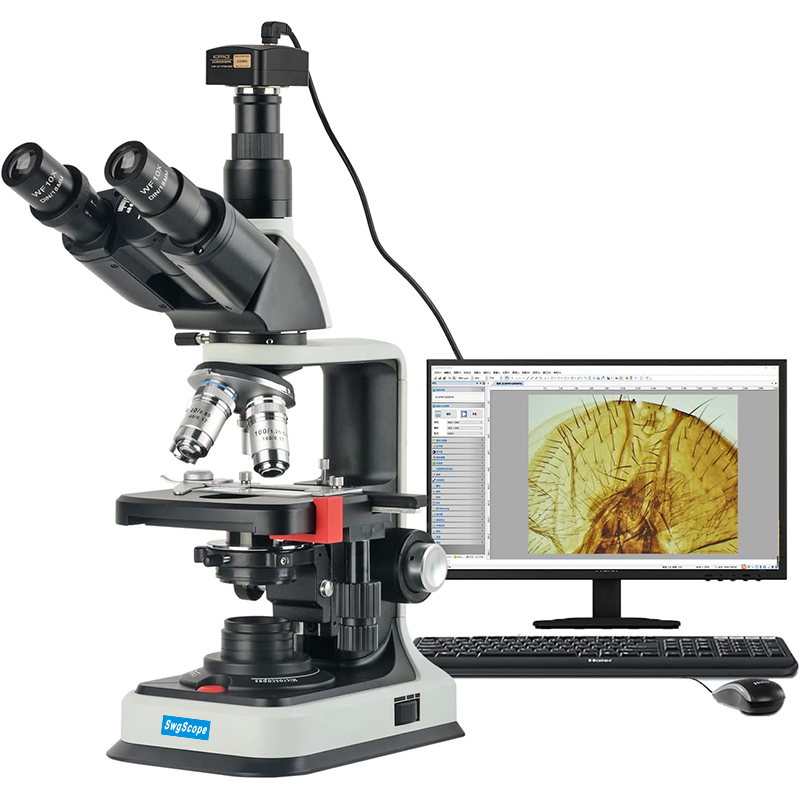

| Product model | SWG-2600T-12MP |
| Optical magnification | 40X-2500X |
| Electron amplification | 291X-7280X |
| Observation tube | Three-eye hinge, tilt 30 degrees, rotate 360 degrees, pupil distance adjustment 48-75mm |
| eyepiece | Wide-angle eyepieces WF10X/DIN18mm, WF25X/8mm |
| Objective lens | Flat field achromatic objective 4X,10X,40X,100X (oil lens) |
| convertor | Four-hole conversion |
| platform | Double-layer mechanical mobile platform, area :125mm×115mm, moving range :76mm×52mm |
| Focusing mechanism | Low hand position coarse and micro coaxial focusing mechanism, coarse adjustment stroke 20mm, fine tuning accuracy 0.002mm |
| condenser | Abbe condenser,NA = 1.25, variable aperture |
| illuminant | LED cold light source 1W |
| power | External regulated power adapter, 100V-240V_AC50/60Hz |
| Three-mesh interface | 1X triocular interface (25mm camera and 23.2 eyepiece) |
| package | Foam + carton |
| pixel | 12 million pixels |
| Output mode | USB2.0 |
| sensor | 12M/Sony/IMX577(C) |
| Sensor size | 1/2.3 "(5.95x4.71) |
| Resolution frame rate | 20 @ 3840 x3040, 20 @ 1920 x1520, 20 @ 960 x760 |
| Pixel size | 1.55 mu mx1.55 microns |
| Exposure time | 0.1 ms to 2000 ms |
| White balance | Lock white balance, regional white balance, gray scale |
| Image adjustment | Hue, saturation, brightness, contrast, sharpness, permeability, DPC |
| Capture/control API | Native C/C++, C#, Directshow, Twain, Labview |
| Operating system | Windows XP/Vista/7/8/10/11(32 & 64 bit)OS X (Mac OS X), Linux |
| Shooting mode | Images and videos |
| File saving | You can set the file name, save the picture with the time format, and choose the saving path |
| Camera function | Color, saturation, brightness, contrast, exposure, white balance can be adjusted |
| Provide SDK | |
| - Provide dynamic image stitching, depth of field extension EDF; | |
| - Measurement of length, Angle, radian, area, etc.; | |
| - Can export PDF, Excel, TXT documents; | |
| - Real-time video and still image capture can be set up; |
