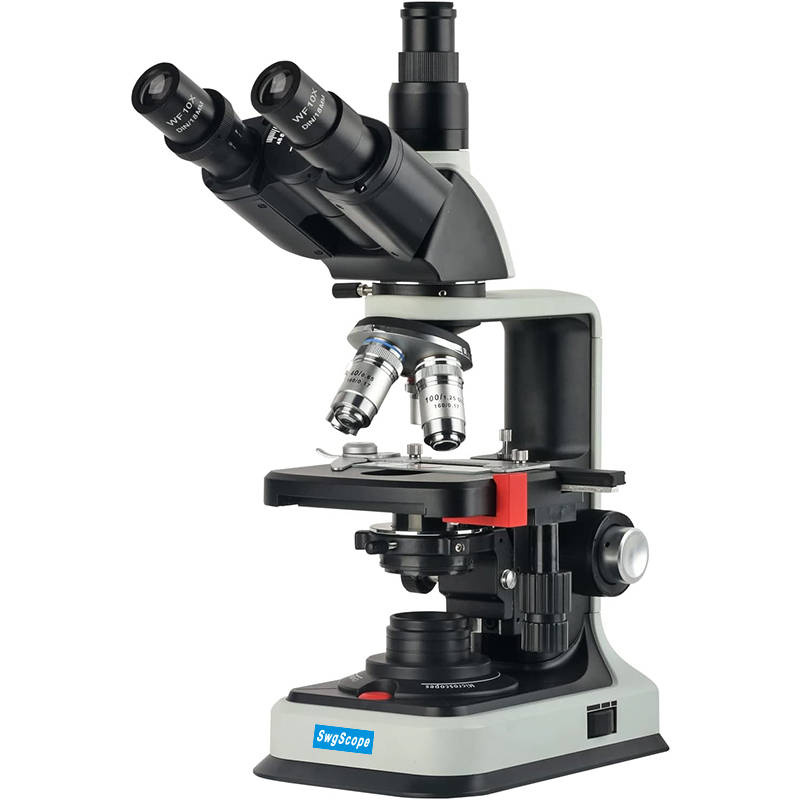

| Product model | SWG-2600T |
| Optical magnification | 40X-2500X |
| Observation tube | Three-eye hinge, tilt 30 degrees, rotate 360 degrees, pupil distance adjustment 48-75mm |
| Eyepiece | Wide-angle eyepieces WF10X/DIN18mm, WF25X/8mm |
| Objective lens | Flat field achromatic objective 4X,10X,40X,100X (oil lens) |
| Convertor | Four-hole conversion |
| Platform | Double-layer mechanical mobile platform, area :125mm×115mm, moving range :76mm×52mm |
| Focusing mechanism | Low hand position coarse and micro coaxial focusing mechanism, coarse adjustment stroke 20mm, fine tuning accuracy 0.002mm |
| Condenser | Abbe condenser,NA = 1.25, variable aperture |
| Illuminant | LED cold light source 1W |
| Power | External regulated power adapter, 100V-240V_AC50/60Hz |
| Three-mesh interface | 1X triocular interface (25mm camera and 23.2 eyepiece) |
| Package | Foam + carton |
