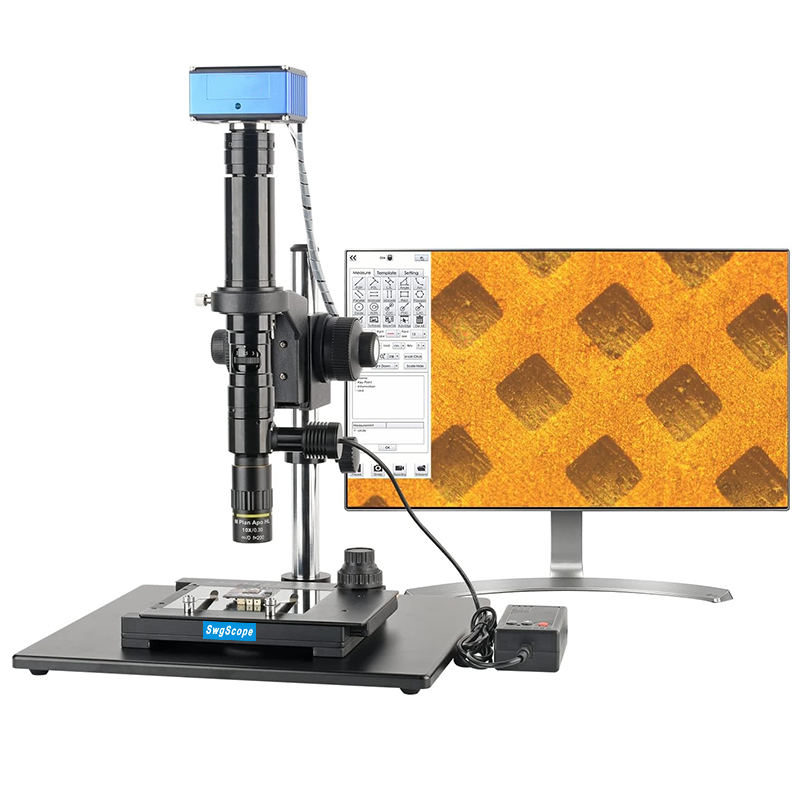

| Product model | SWG-2KHD950 |
| Focusing stroke | 65mm |
| Column height | 300mm |
| Column diameter | 25mm |
| Center distance | 165mm |
| Fine tuning accuracy | The 0.002 mm |
| Base size | 330mmX300mm |
| Mobile platform | Panel size :180x155x26mm Stroke: horizontal 75mm Vertical :55mm Reading accuracy :1mm |
| magnification | 244X-1569X |
| Field of view | 0.35 mm to 2.28 mm |
| Auxiliary objective | Objective HL 10X/0.3 |
| Point light source | DC 5V 8W LED white light Working temperature 0-60℃ Life: 50,000 hours |
| Optical magnification | 3.5 X to 22.5 X |
| Working distance | 34 mm |
| Barrel length | 315mm |
| Lens mounting diameter | 50mm |
| pixel | 2 million pixels |
| Image sensor | 1/2 "CMOS |
| Resolution | 1920 x 1080 |
| Pixel size | 3.75 x 3.75 um |
| Frame rate | 60FPS |
| Color adjustment | R, G, and B are independently adjustable |
| White balance regulation | Single automatic white balance |
| Exposure regulation | Manual/automatic |
| antireflection | Manual setting |
| Contrast control | Manual setting |
| Output mode | HDMI |
| Menu operation | Mouse operation |
| Photo method | Manual operation |
| Storage mode | A USB flash drive. Can be photographed, videotaped, measured |
| Reticle function | 100 groups |
| Lens interface | C interface |
| Power source | DC-12V |
| Camera function | Point distance, point line distance, line distance, circle center distance, arc, circle, Angle, rectangle, polygon measurement, calibration function, automatic edge finding |
| ◆ HD shooting, video and preview playback; | |
| ◆ Built-in automatic edge finding function, improve the measurement effect; | |
| ◆ Support U disk storage function, can be external mouse; | |
| Display | 21.5 inches |
