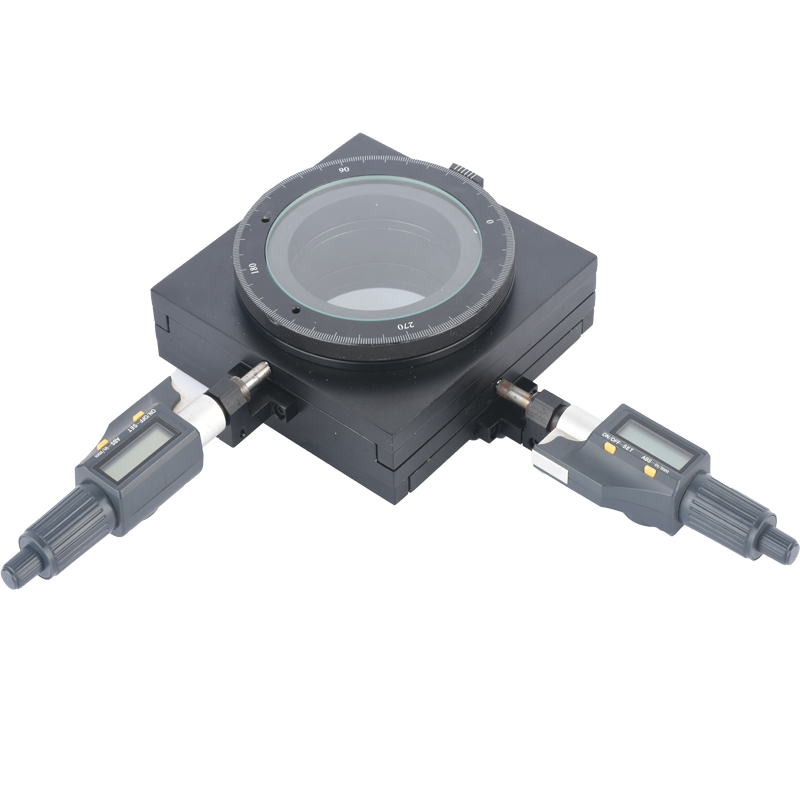

SWG-305 measurement mobile platform micrometer head accuracy 0.001mm Microscope Mobile Platform
SWG-305 measurement mobile platform micrometer head accuracy 0.001mm Microscope Mobile Platform

SWG-305 measurement mobile platform micrometer head accuracy 0.001mm Microscope Mobile Platform

Model: SWG-305
Platform size: 140 × 140 × 36mm
Measuring range: 25mmx25mm
Maximum stroke of micrometer head: 25mm
Micrometer precision: 0.001mm
Glass platform: 95mm (360 ° rotation)
Connection size: 95mm
Maximum load: 5kg (glass top)
Description Packing list

Product model:SWG-305

Platform size: 140 × 140 × 36mm

Measuring range: 25mmx25mm

Maximum stroke of micrometer head: 25mm

Micrometer accuracy: 0.001mm

Glass platform: 95mm (360 ° rotation)

Connection size: 95mm

Maximum load: 5kg (glass top

1. 1X Microscope Mobile Platform
