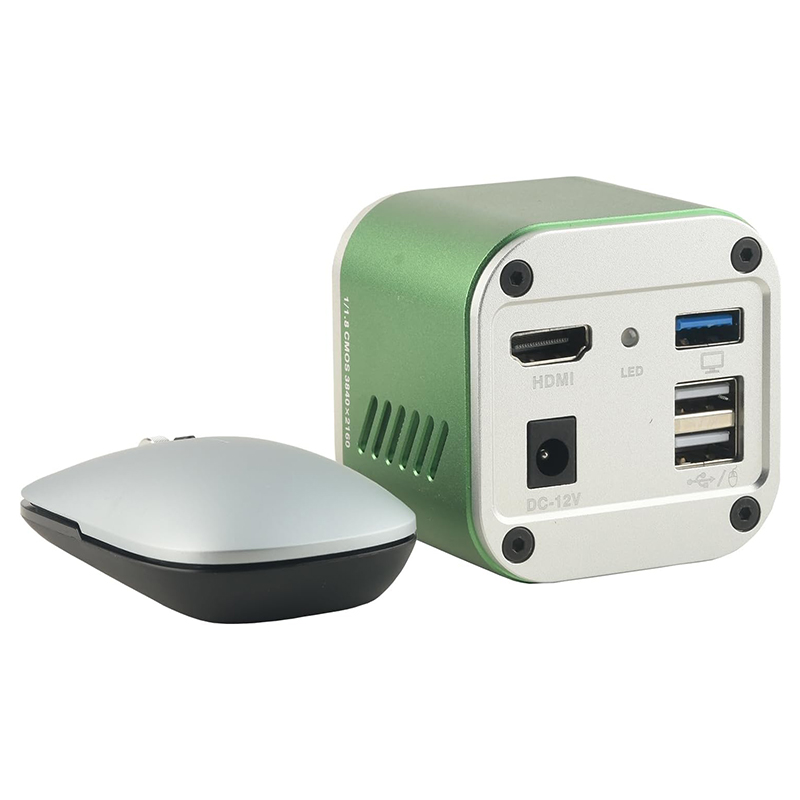

| Product model | SWG-4K3609 |
| Output mode | HDMI, USB |
| pixel | 8.3 million pixels |
| Sensor size | 1/1.8, SONY IMX334 |
| Pixel size | 2.0μm X 2.0μm |
| Resolution frame rate | 3840X2160 @30FPS,1920X1080 @30FPS |
| Magnification setting | Real-time display of magnification |
| Image storage mode | Flash drive |
| Video recording | 4K (30 frames), 1920X1080 (30 frames) |
| Exposure | Automatic and manual |
| White balance | Auto/One click |
| RGB | Red, green and blue independently adjustable, color temperature adjustable |
| Mirror setting | Black and white mode, horizontal mirror, vertical mirror |
| gridlines | Supports 8 groups of horizontal and vertical lines, the color is optional (red, blue, green, sky blue, orange, yellow, white, black) lines can be moved, the center cross can be set, and 4 kinds of line widths are optional |
| Image adjustment | Brightness, contrast, saturation, sharpness, noise reduction, anti-flicker |
| PC software | SWG-VIEW (support photo recording, measurement) |
| Power source | DC12V/1A |
| Camera interface | C interface |
| Language | Chinese, English, Traditional |
| Digital amplification | Supports 10X digital magnification |
| Screen comparison | Comparison between two and four screens is supported |
| Measuring function | Line, line spacing, vertical line, rectangle, polygon, Angle, arc, radius draw circle, circle margin, arbitrary line, text annotation, etc |
