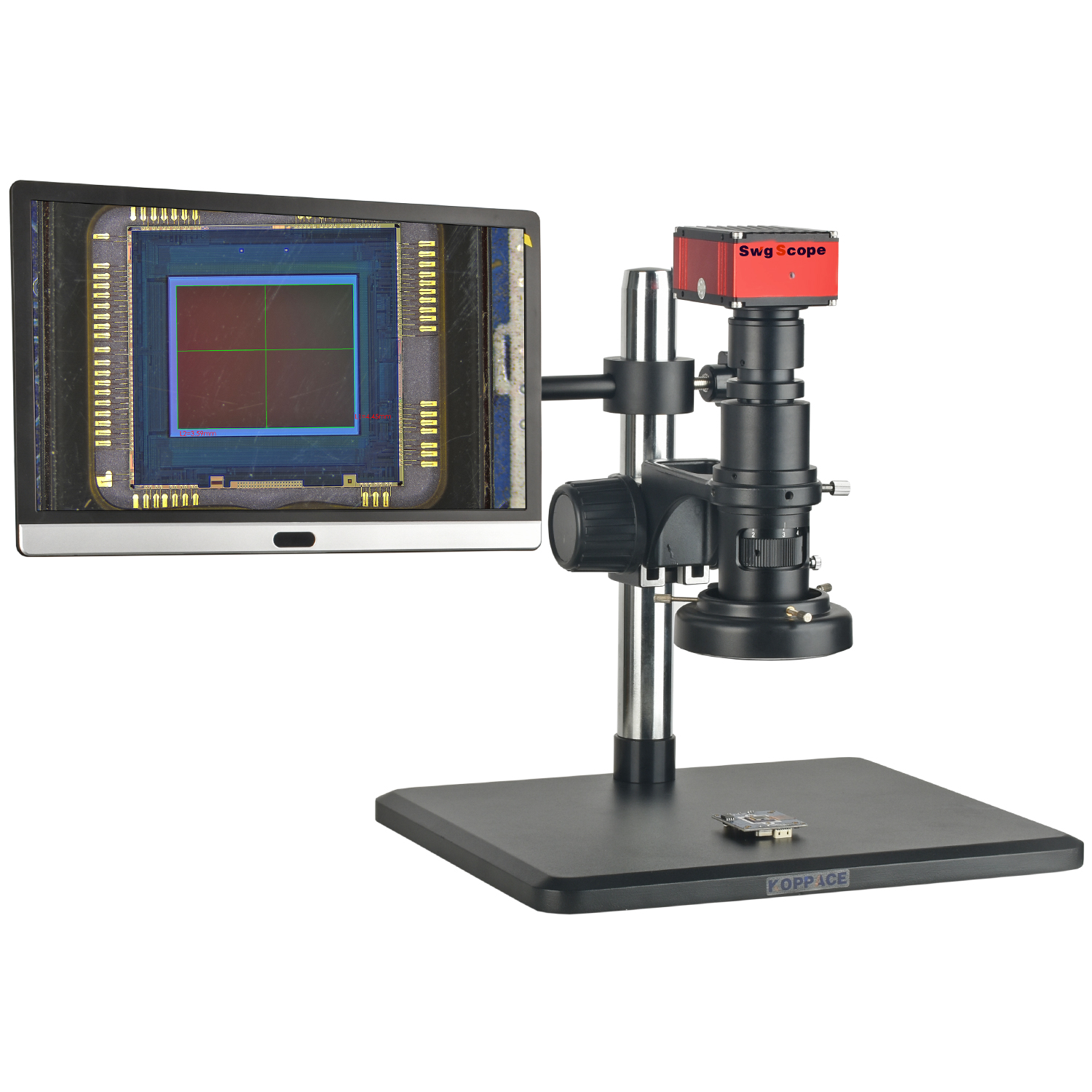

Model |
SWG-4KHD900 |
Monitor |
15.6 Inch Monitor |
Optical Magnification |
0.28X-2.8X |
Electronic Magnification |
12X-125X |
Field of View |
4.43mm-31.64mm |
Eyepiece |
0.4X C-Mount |
Objective Lens |
0.7X-5X Continuous Amplification |
Working Distance |
100mm |
Auxiliary Lens |
1.4X/WD100 |
Bracket Size |
Column height 350mm,Base size 320mmX260mmX16mm,lens aperture 50mm |
LED Light Source |
61mm Inner Diameter Microscope LED Ring Light Source 60 lamp Beads Adjustable Brightness AC100V-240V/50/60HZ DC12V 4.5W |
Pixel |
8.3 Million Pixels |
Output Method |
HDMI、GigE、USB3.0 |
Sensor |
8.3M/Sony 1/1.8＂CMOS |
Photographic Resolution |
3840X2160,(Photo can be Manually and Automatically Named file Name) |
Video Resolution |
4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
Pixel Size |
2.0μmX2.0μm |
Frame Rate |
60FPS |
Color Adjustment |
R、G、B Independently Adjustable |
White Balance |
Auto/Manual |
Image Adjustment |
Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
Storage Mode |
U Disk Storage,Photo Taking,Video Recording and Measurement |
GigE/USB3.0 |
By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |
Cross Hair |
Support 100 Groups Cross Line,The Color Position is Adjustable |
Power Supply |
AC100V-240V DC-12V |
Measuring Function |
Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibrati |
