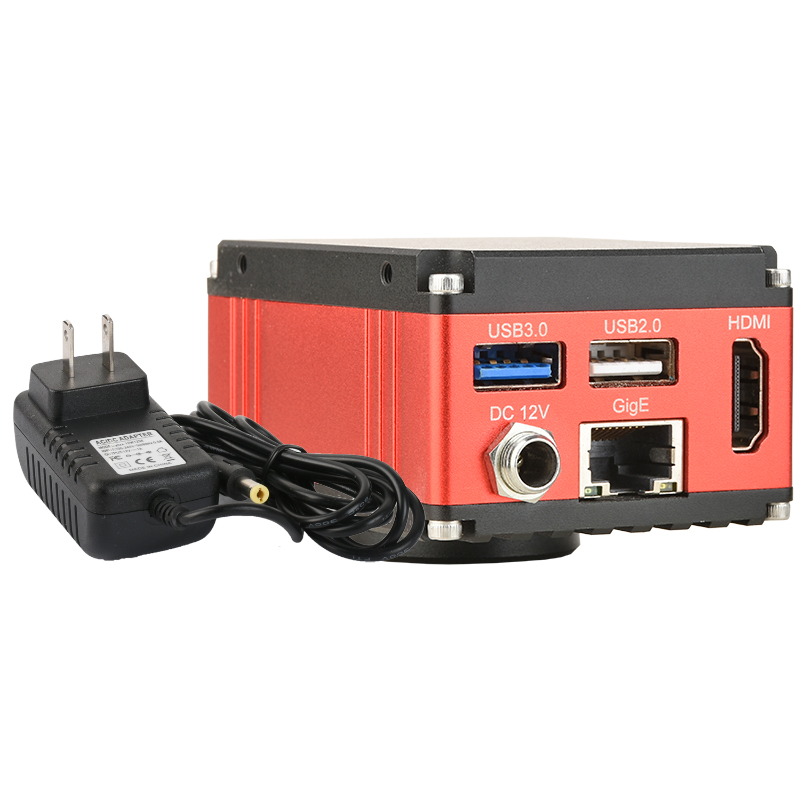

SWG-4KHQ HD measurement industrial camera hdmi4k8 million pixels

Model: SWG-4KHQ
Built in new development measurement system, improve image clarity again;
4K output image 8 million pixels, resolution 3840 x 2160, real-time frame rate 60fps;
Equipped with USB3.0, Gigabit network interface;
Description Packing list
◆ built in new development measurement system to improve image clarity again;
◆ 4K output image, real-time frame rate 60fps;
◆ new: user defined interface editing, user-defined template editing, DXF import template, file management, measurement data export and other functions;
◆ Sony high-performance photosensitive chip, low noise, high sensitivity and true color;
◆ dual core 2 * A73 @ 1.6GHz + 2 * A53 @ 1.2Ghz;
◆4GB DDR4+8GB eMMC;
◆ equipped with USB3.0, Gigabit network interface;
◆ HD shooting, video recording, preview and playback;
◆ built in automatic edge searching function to improve the measurement effect;
◆ it supports the storage function of U disk, and can be connected with an external mouse;
Product model SWG-4KHQ
Output interface HDMI, Gigabit Network
sensor 1/1.7 inches
Image resolution 3840 x 2160
pixel 8 million pixels
Pixel size 1.85μm x 1.85μm
Frame rate 60fps
Data bits 12bit
Exposure mode Line by line exposure
colour Color R / g / b adjustable
Image freeze Support
OSD Support
Storage function Support for taking photos and recording
Lens interface C
Measuring function Two points, point line, three point circle, center distance, concentric circle, pointing circle, coil, parallel line, rectangle, angle, radian, polygon
Data preservation Measurement results for image or Excel data saving
measuring method Mouse operation, intelligent selection / manual selection

1. 1X measurement hdmi4k camera

2. 1X HDMI cable

3. 1X mouse

4. 1X 12V adapter power supply

5. 1X scale

6. 1X U disk 16g

7. 1X gigabit network cable

8. 1X CD SOFTWARE CD
