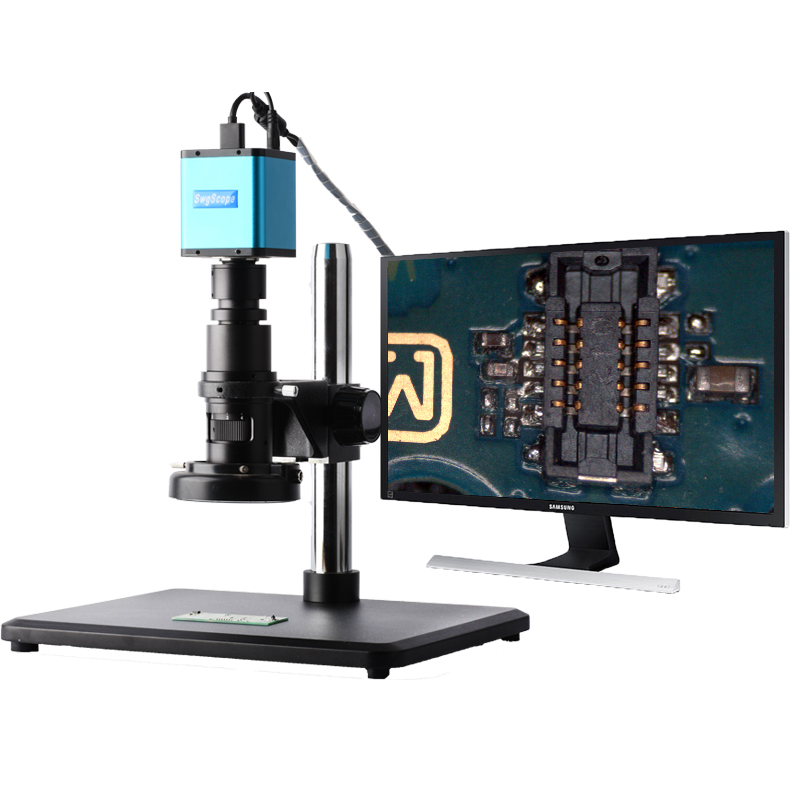

SWG-6300 auto focus video microscope 22x-156x

Model: SWG-6300
Magnification: 22x-156x
Pixel: 2 million pixels
Output: HDMI HD
Autofocus industrial inspection microscope
Description Packing list
Product model SWG-6300
Zoom ratio 1:7
eyepiece 0.4X
Magnification 22X-156X
Working distance 105mm
Lifting range 275mm
Base pillar 320 * 260 * 15mm; column diameter: 32mm
Lens aperture 50mm
Autofocus Focus area customization supported
image sensor 1 / 2.8 "color 2 million CMOS
Lens interface Type C/CS
OSD All digital UI design / mouse operation
Power Supply DC5V
data interface HDMI
Display frame rate 1080P@60fps/1080P@50fps
Scanning mode Progressive scanning
white balance Manual / automatic
exposure Manual / automatic
shutter speed 1/50s(1/60s)~1/10000s
brightness Adjustable range 0-100
colour R / G/ B independently adjustable
Horizontal vertical line 4 horizontal and vertical, movable position and adjustable color
HDR Support
Digital amplification Support
Hair light source LED (144 pieces) continuously adjustable
input voltage 12V-0.5A
output power 4.5W
Working distance 40-160mm
Maximum illumination 60000 Lux
Bulb brightness MAX3500 MCD
Display 21.5 inches

1. 1x microscope host lens

2. 1x microscope bracket

3. 1x auto focus industrial camera

4. 1x 21.5 inch display

5. 1x 144led light source

6. 1x power adapter

7. 1x HDMI cable

8, 1X mouse
