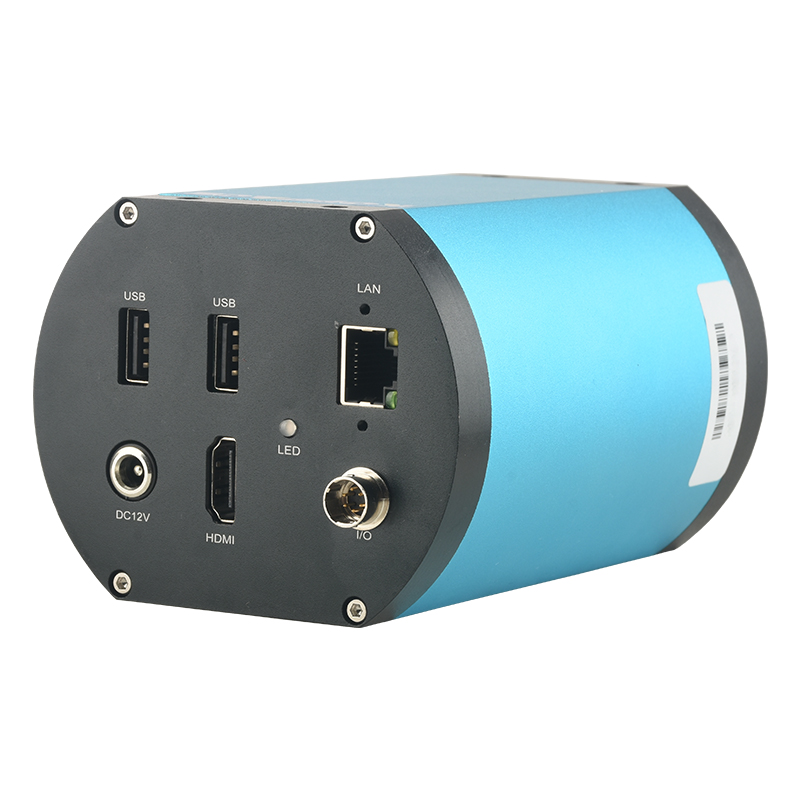

SWG-AF200 Large field of view AFM industrial camera

Model: SWG-AF200
Large field of view HDMI autofocus integrated lens
Output interface: HDMI 2 megapixel 1920 × 1080 / 60fps
Sensor: CMOS 1 / 2.8 inch
Brightness, white balance: Auto / manual
Function: OSD menu, mouse operation supported, color R / g / b adjustable
Description
Product model SWG-AF200
OpticalMagnification 1X-14X
Electronic Amplification 1X-6X
Working Distance 10cm~∞
Pixels 2 Million Pixels Autofocus Microscope Camera (Built-in wide-angle lens)
Output Method HDMI/LAN
Pixel Size 1/2.8“
HDMI Resolution Ratio 1920 X 1080 60 Frames
Photo Resolution Ratio 1920 X 1080
HDMI Video Recording 1080P 30 Frames (1920 X 1080)
White Balance Auto/Manual
Image Adjustment Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback
Storage Mode U Disk Storage,Photo Taking,Video Recording and Measurement
Cross Hair Support 100 Groups Cross Line,The Color Position is Adjustable
Color Adjustment R、G、B
Image Freezing Support Image Freezing
Input Voltage AC100V—240V  12V
Measuring Function Point Spacing,Point line Spacing,Line Spacing,Circle Center Distance,Arc, Circle,Angle Rectangle and Polygon Measurement,Calibration Function,Automatic Edge Searching.
Language Chinese,English,Traditional Chinese
(Amplification Scaling Ratio) FOV(10cm Working Distance) FOV(30cm Working Distance)
1X 171mm*92mm 420mm*230mm
2X 89mm*50mm 196mm*110mm
3X 71mm*40mm 150mm*84mm
4X 60mm*33mm 116mm*65mm
5X 52mm*29mm 101mm*57mm
14X 24.3mm*13.5mm 45.5mm*25mm

1、1X Autofocus camera
2、
1X HDMI Cable
3、
1X Network Cable
4、
1X Power Supply
5、
1X Mouse
